Loader AttachmentsAvailable for Kubota, New Holland, and Case IH

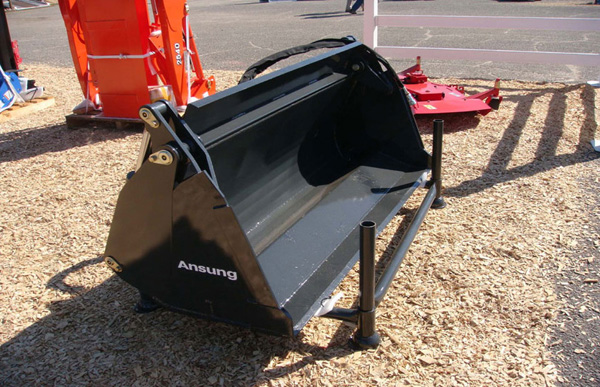

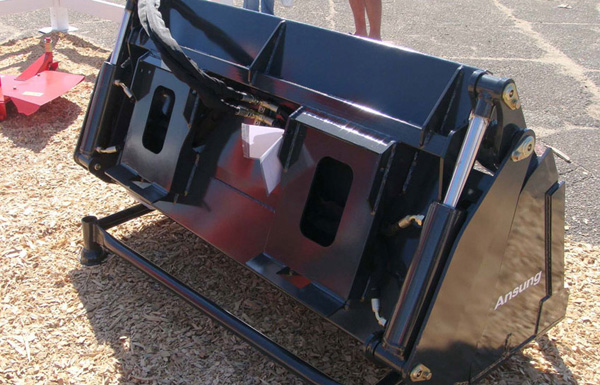

4 in 1 Bucket
- 3rd Service Valve
- Skid Steer Quick Attach
- Euro-Hitch Quick Attach
- Mouse over images or click them to see a larger picture


| Model
|
Width (Inches)
|
Depth (Inches)
|
Height (Inches)
|
Volume Heaped (Cubic Feet)
|
Cylinder Diameter (Inch)
|
Weight
|
F60
|
62"
|
24"
|
18"
|
7.77
|
1-1.5"
|
360lb
|
F66
|
68"
|
24"
|
26"
|
21.2
|
3"
|
770lb
|
F72
|
74"
|
24"
|
26"
|
23.7
|
3"
|
810lb
|
F83
|
84"
|
24"
|
26"
|
27.2
|
3"
|
880lb
|

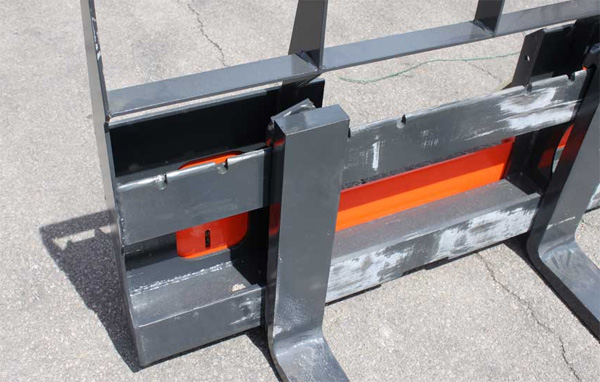

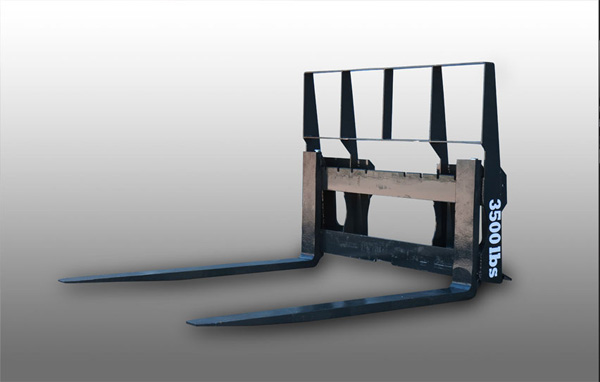

Heavy Duty Pallet Fork
- Top guard
- Forged type fork
- Tapered fork
- Rail locking system
- Mouse over images or click them to see a larger picture


| Pallet Fork Information
|
PF - 42
|
PF - 46C
|
Fork Length
|
42"
|
48"
|
Lift Capacity
|
3,800lb
|
3,800lb
|
Fork Size
|
4" X 1.75"
|
4" X 1.75"
|
Fork Weight per Piece
|
92.4lb
|
96lb
|
Weight
|
375lb
|
400lb
|
|
