Rotary TillersAvailable with Chain or Gear Drive, Forward or Reverse Rotation, and Multi-Speed Gearbox

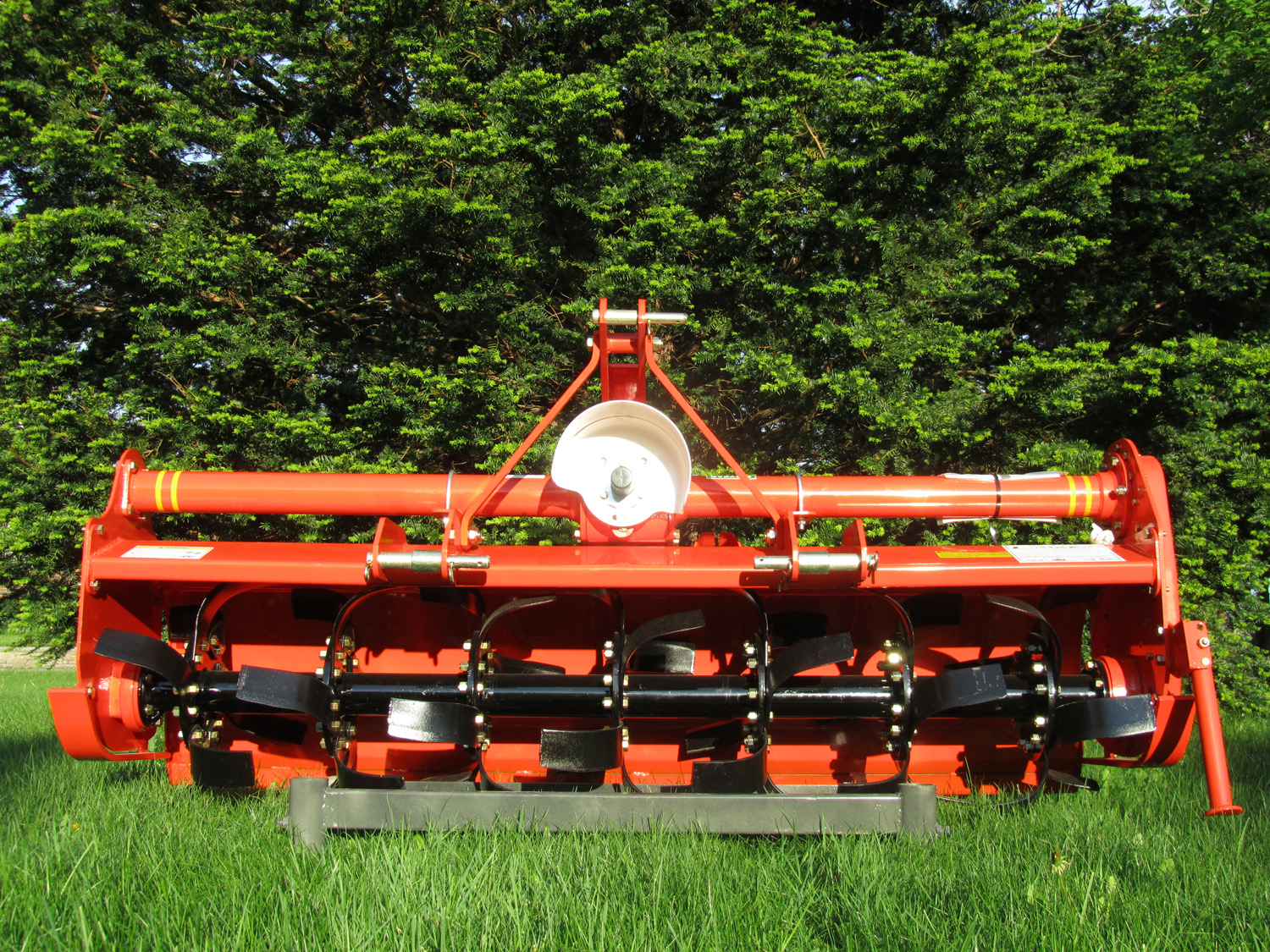

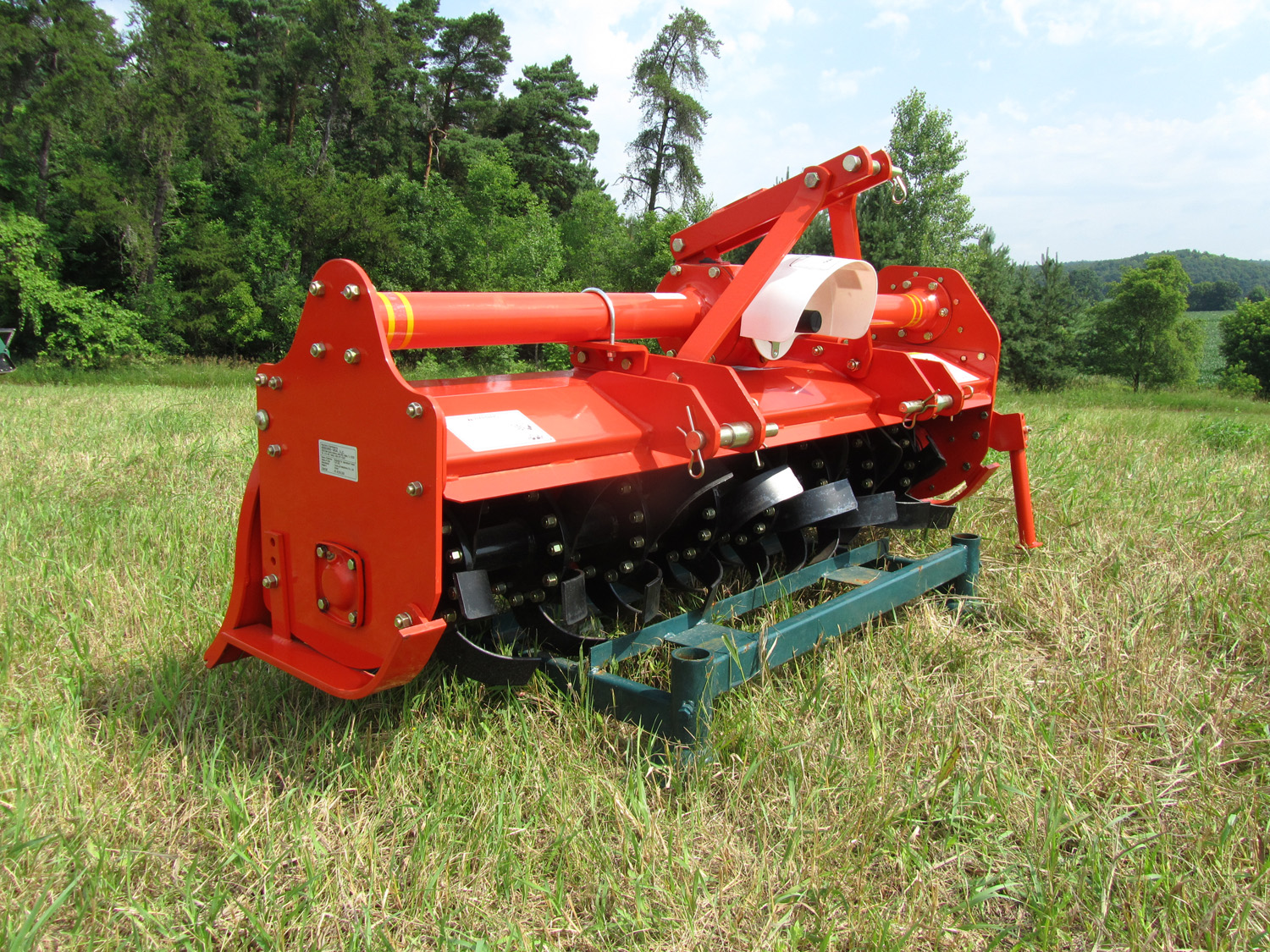

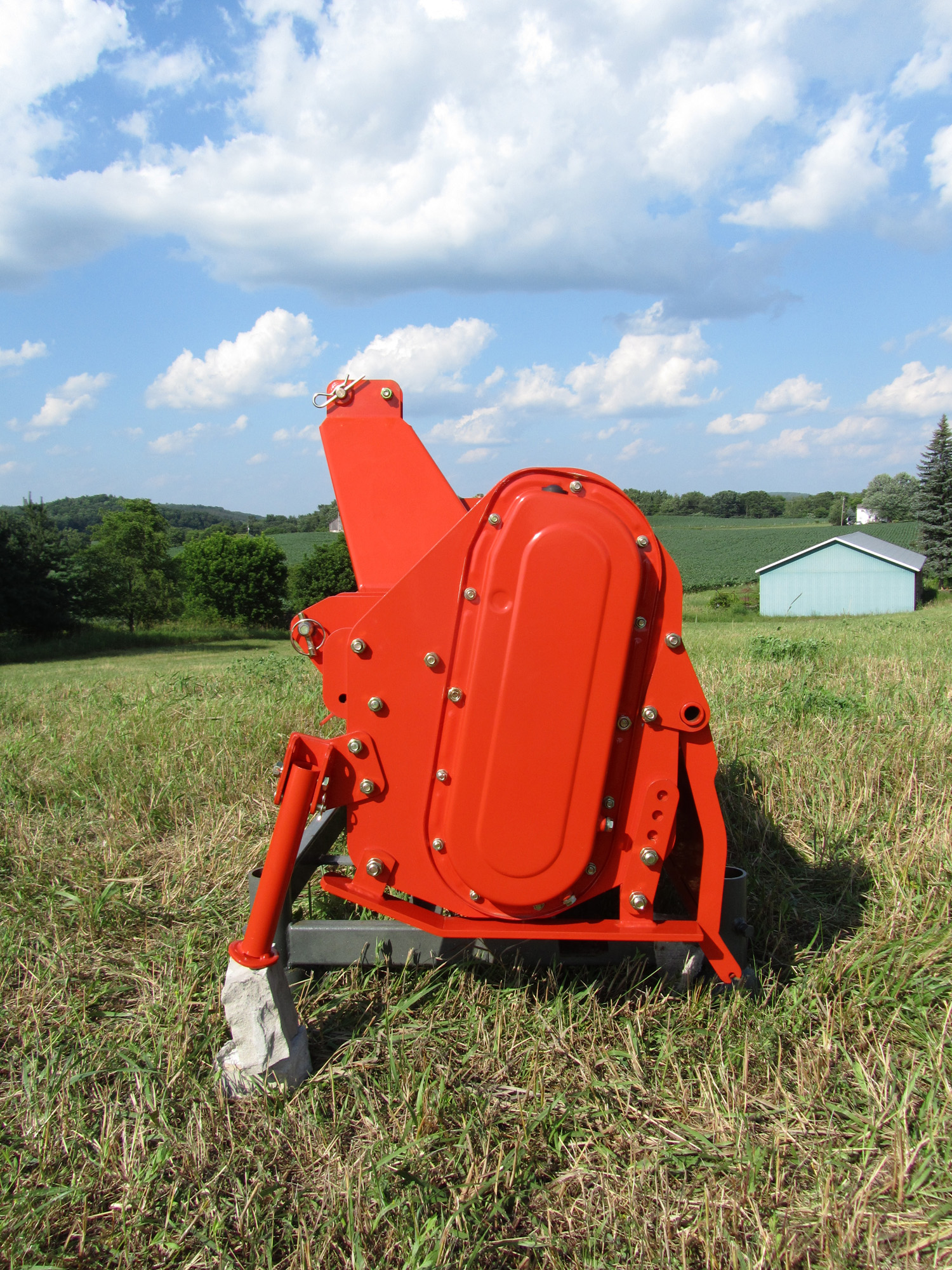

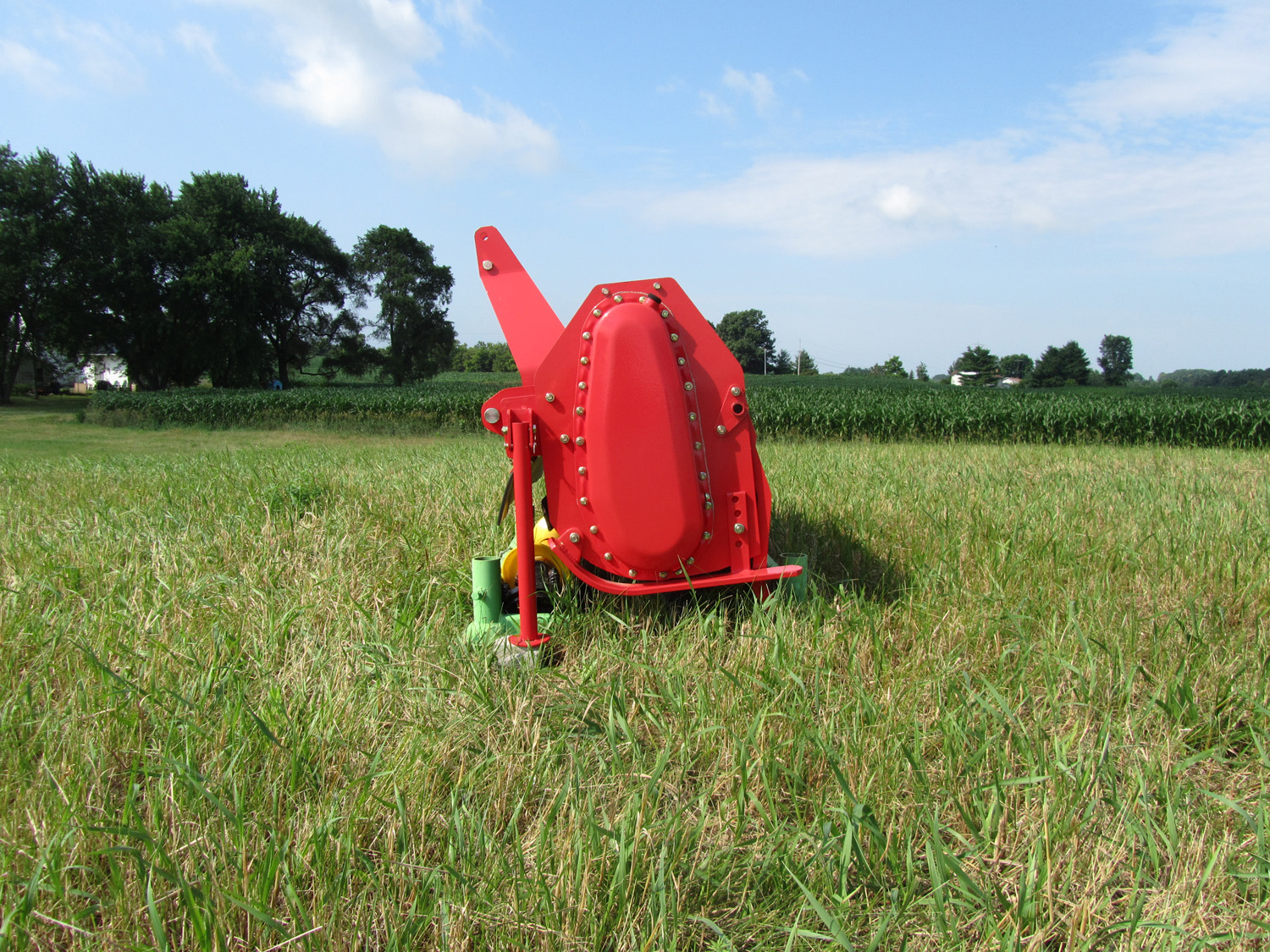

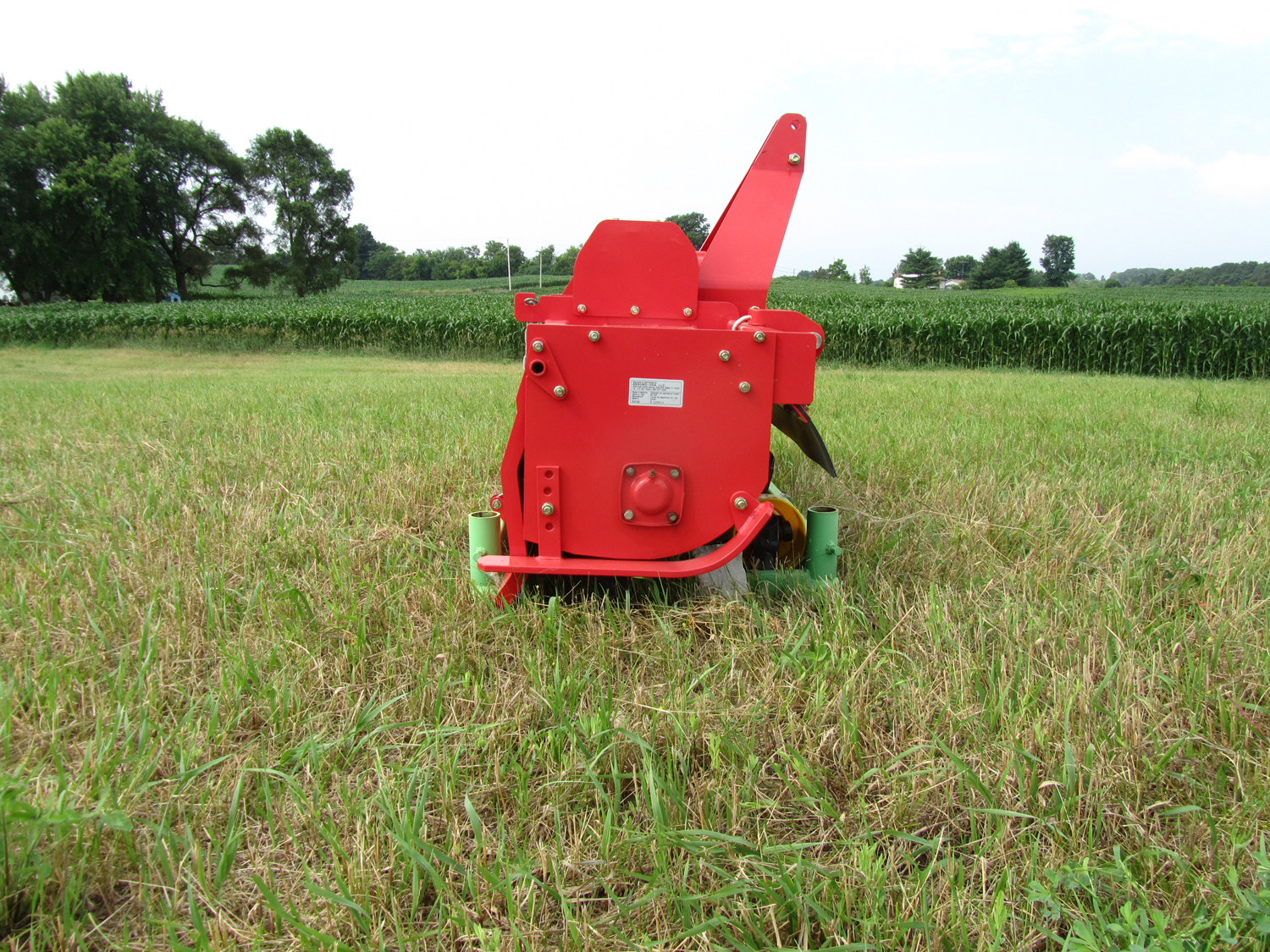

YJC Series Rotary Tillers

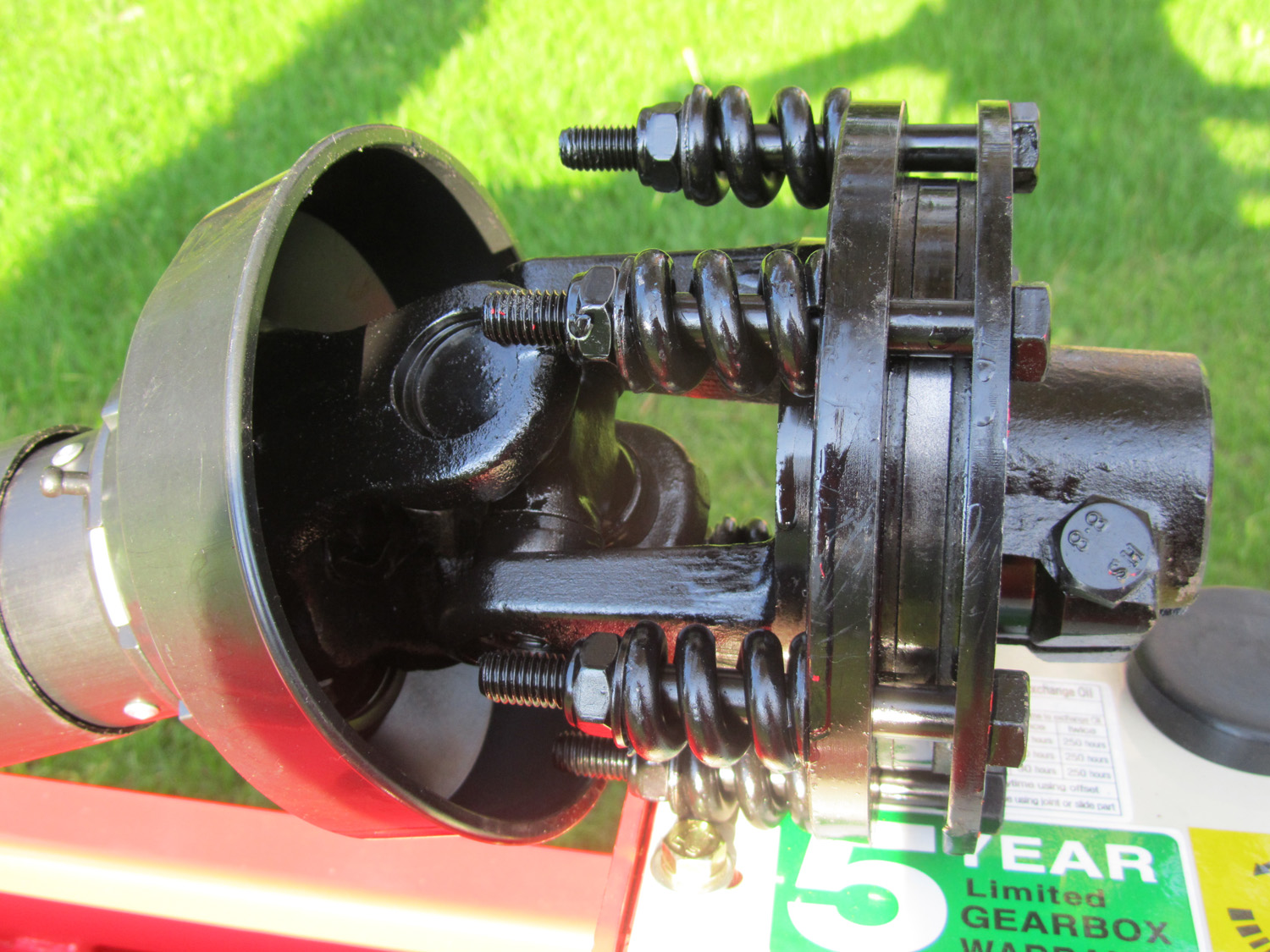

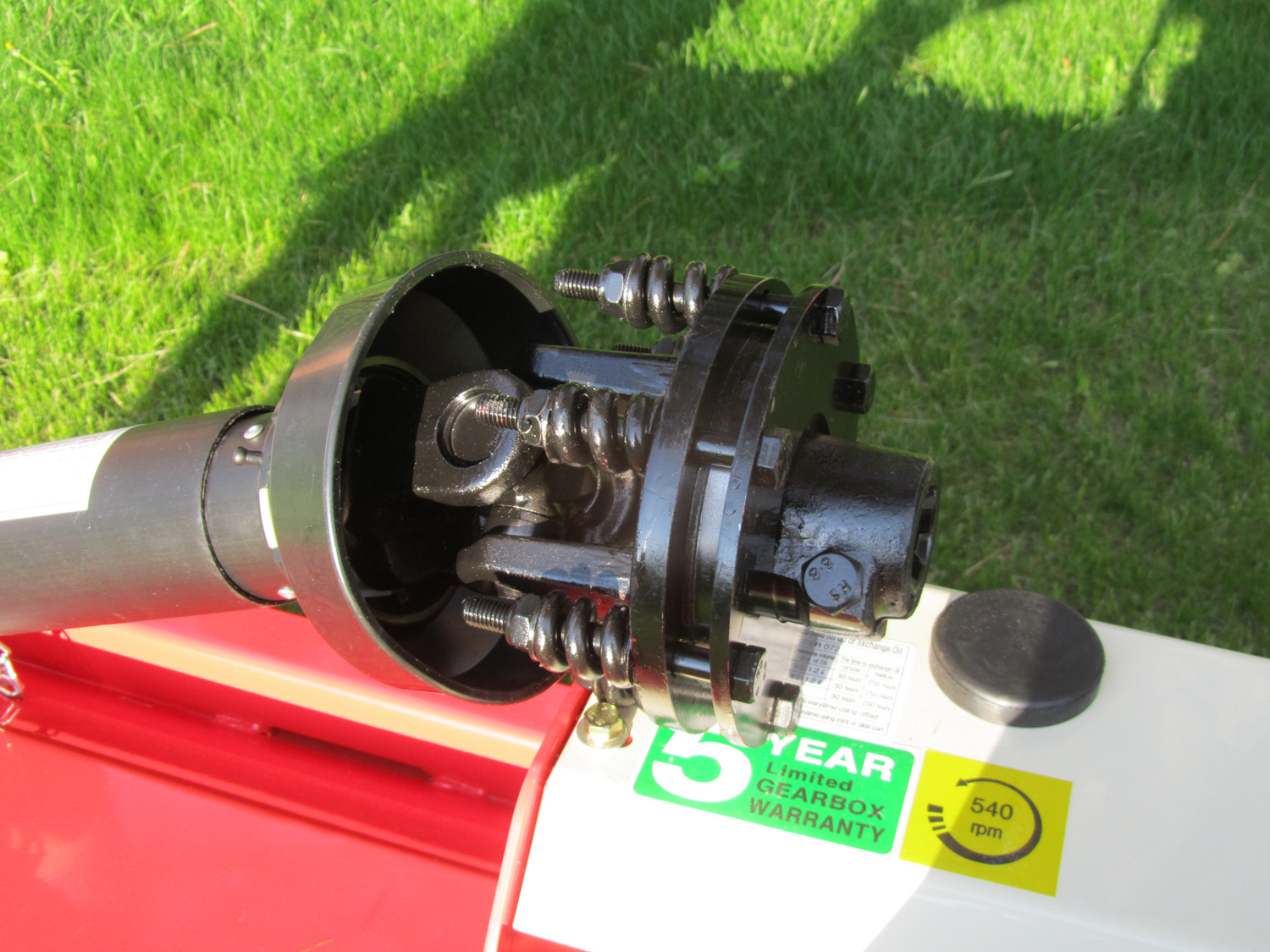

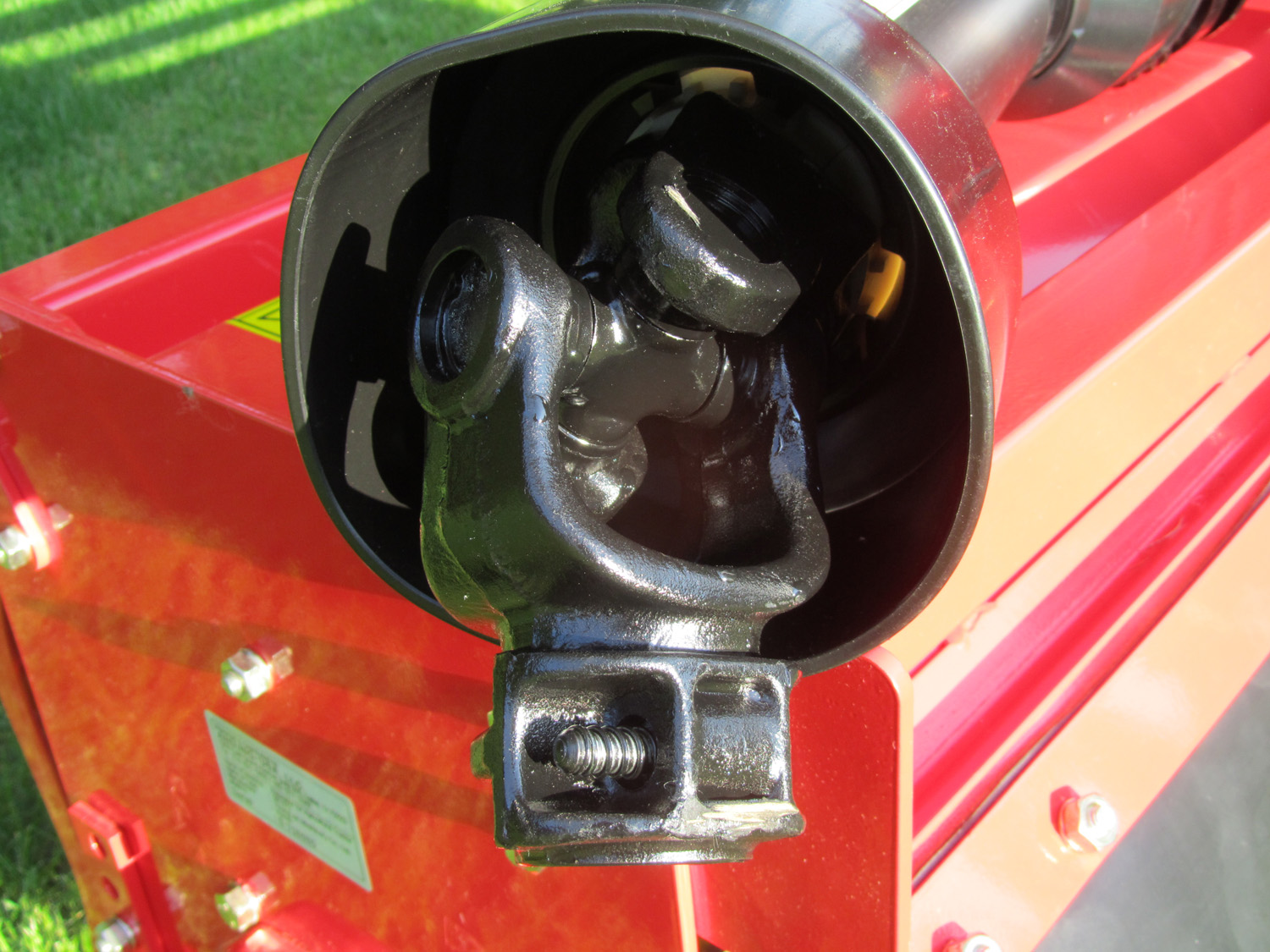

- Slip clutch PTO
- Parking stand included

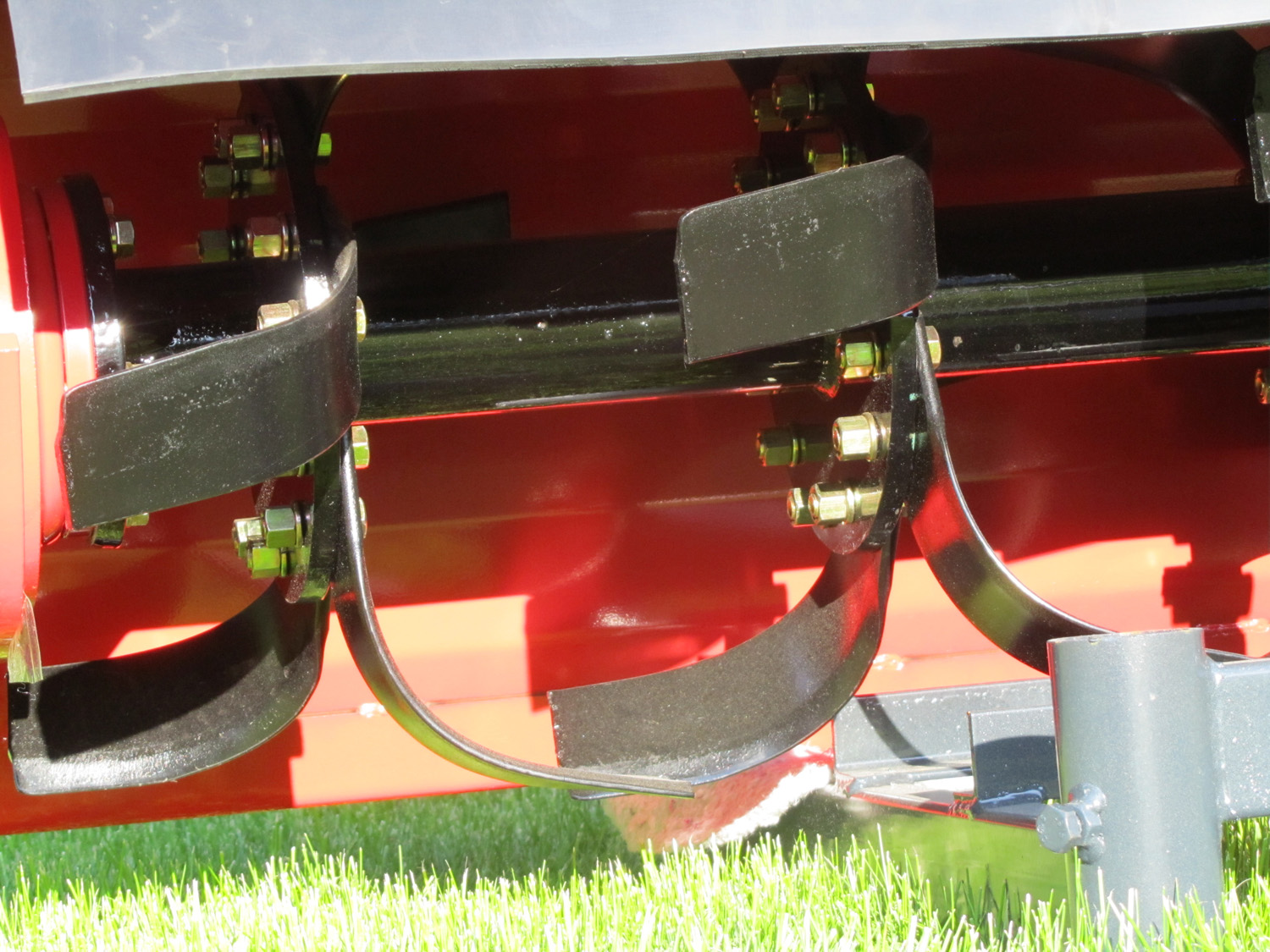

- 6 Blade per flange (except YJC 048 - 4 blade per flange)

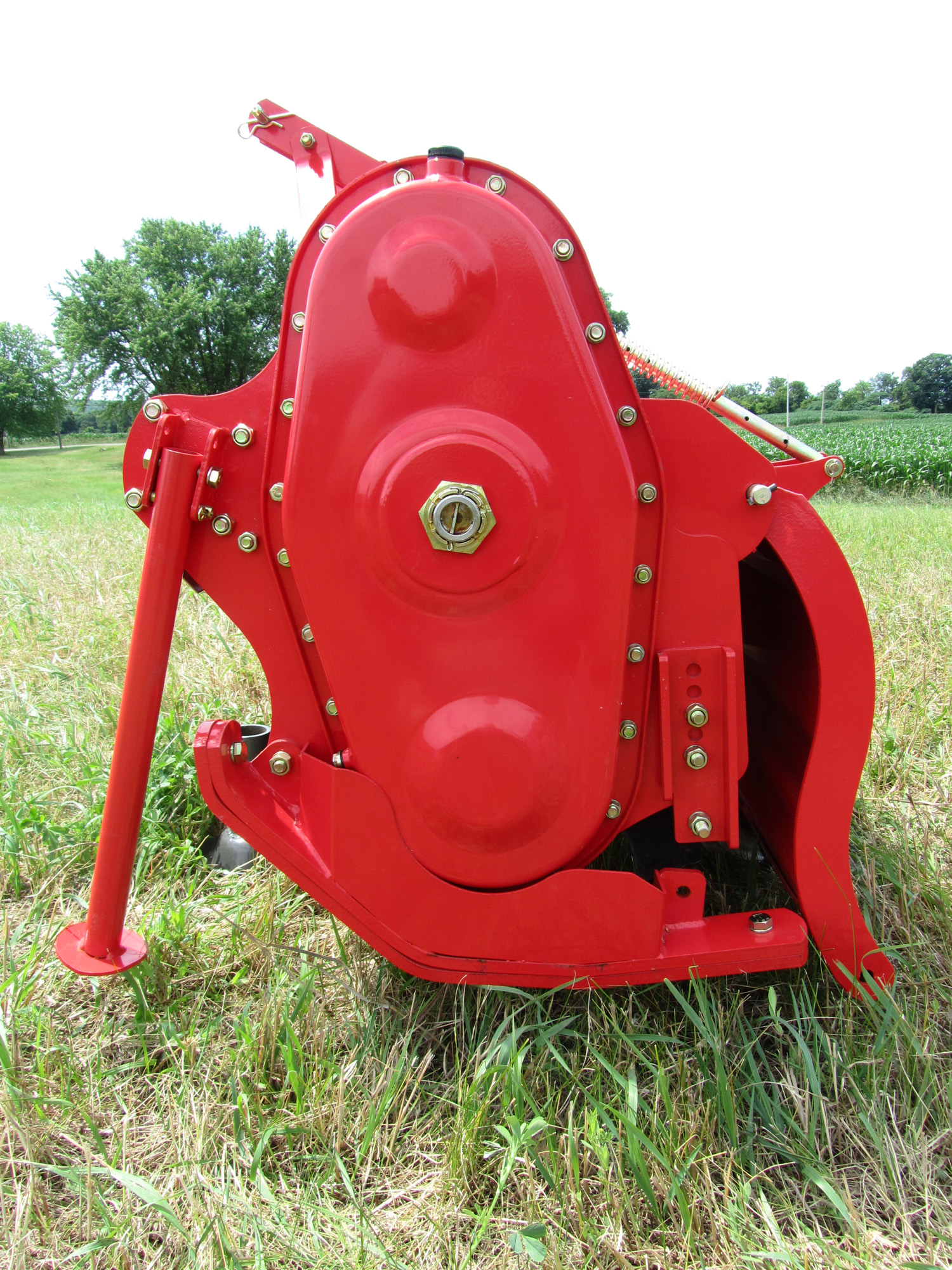

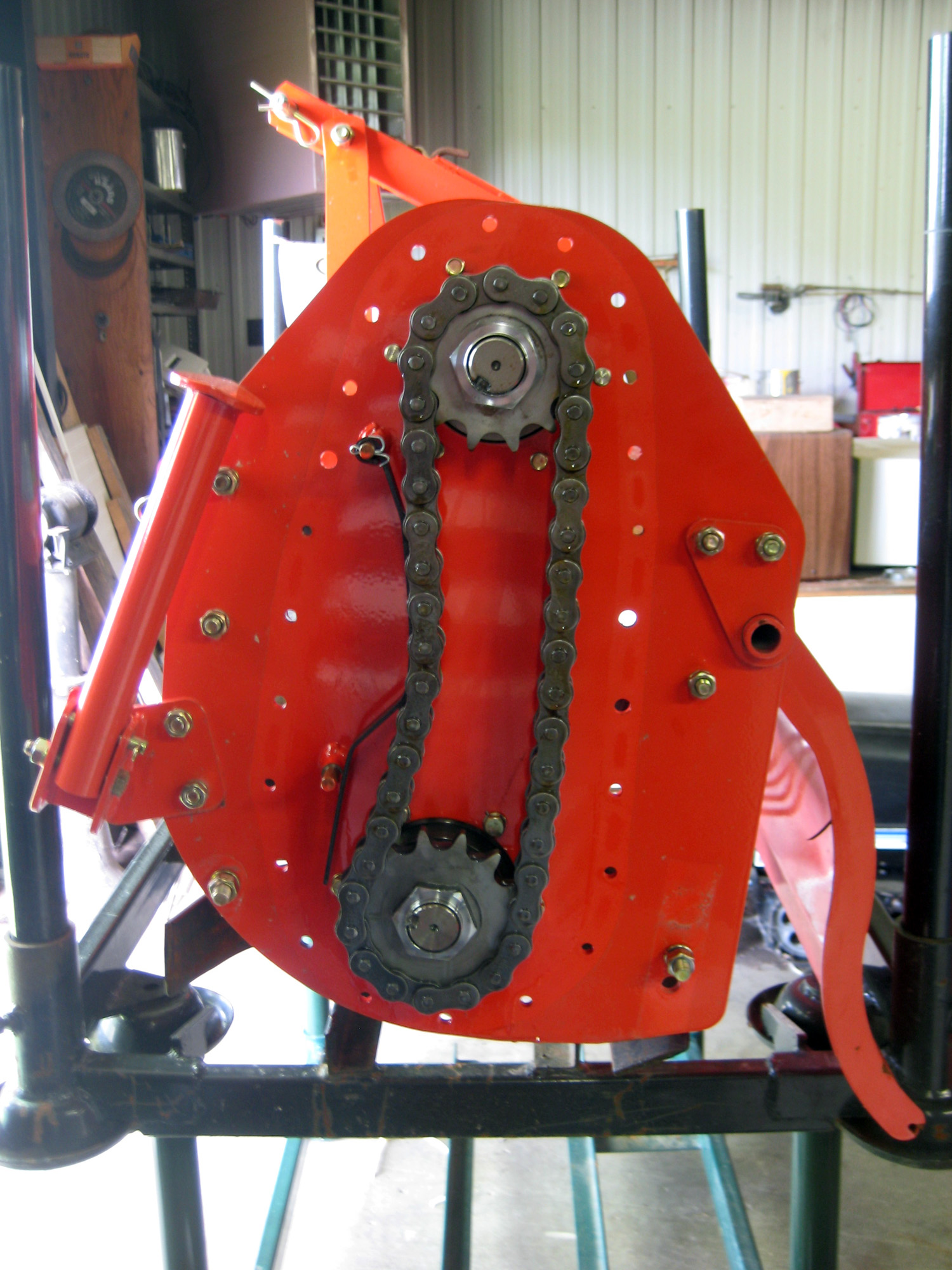

- Chain drive type
- #80 Chain
- Adjustable skid shoes
- Gearbox: 5 yr limited warranty
- Click photos to see a larger image
| Model
|
Tilling Width
|
Number Blades per Machine
|
Total Width
|
Weight (Pounds)
|
Recommended Tractor PTO HP
|

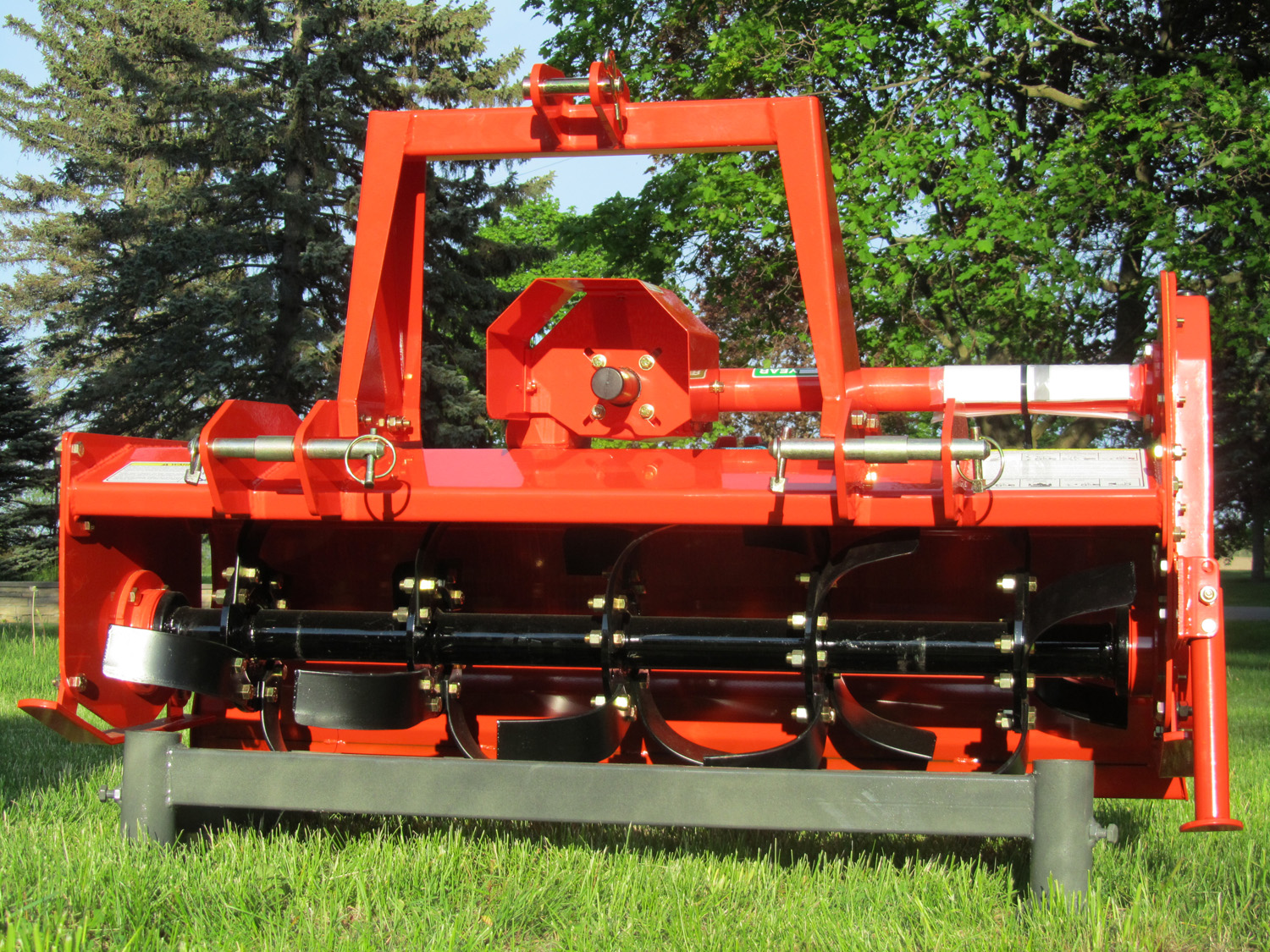

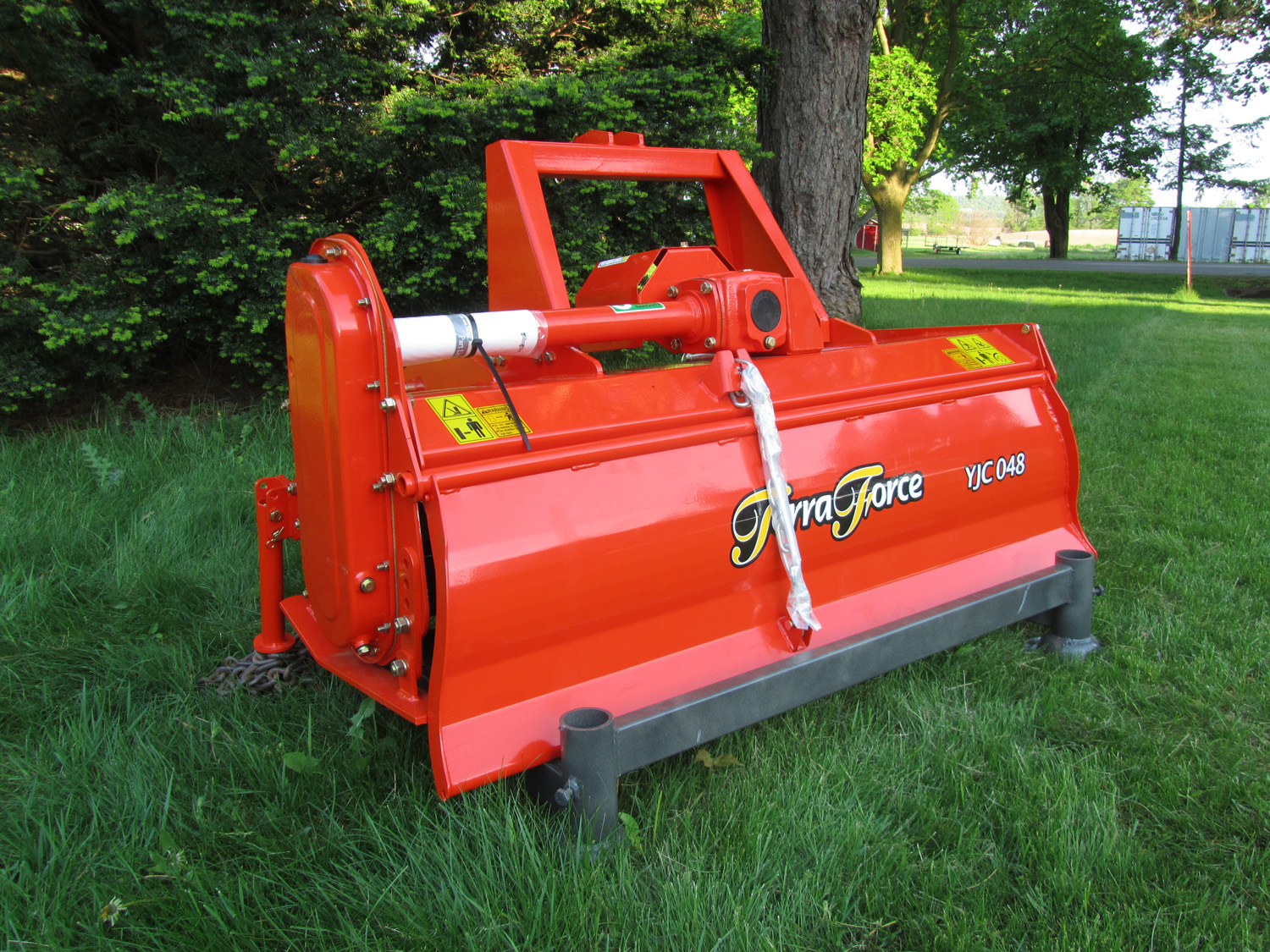

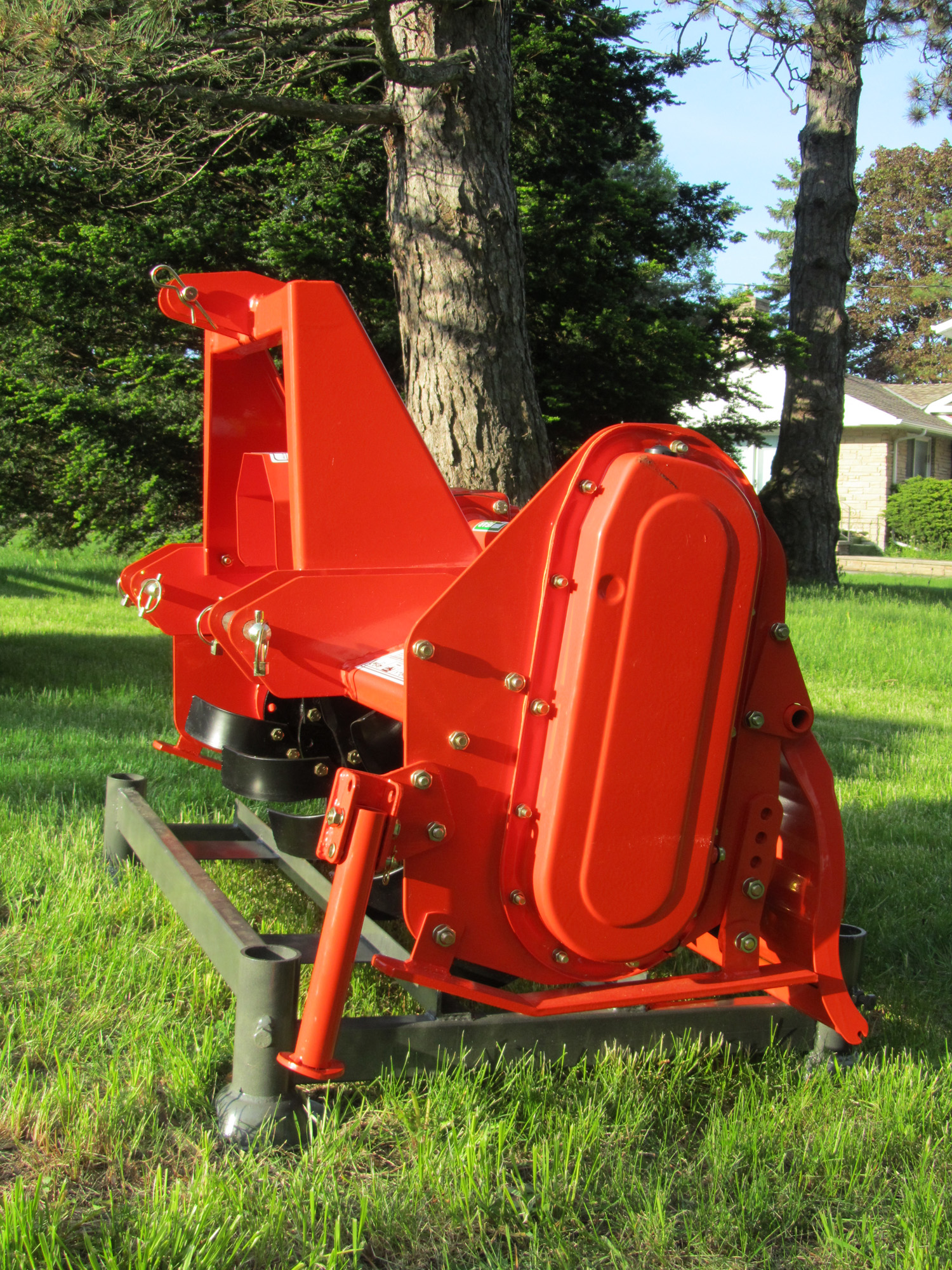

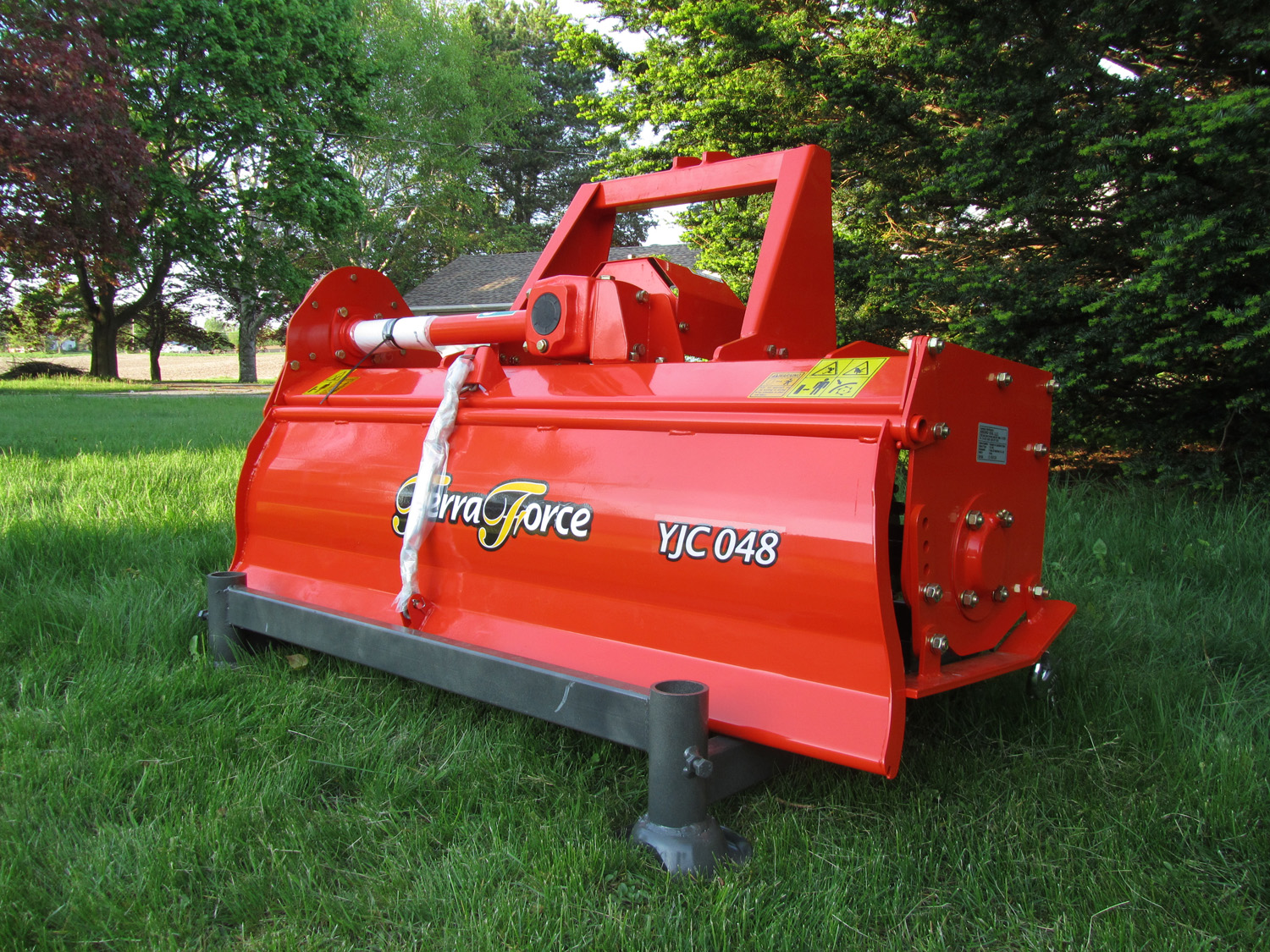

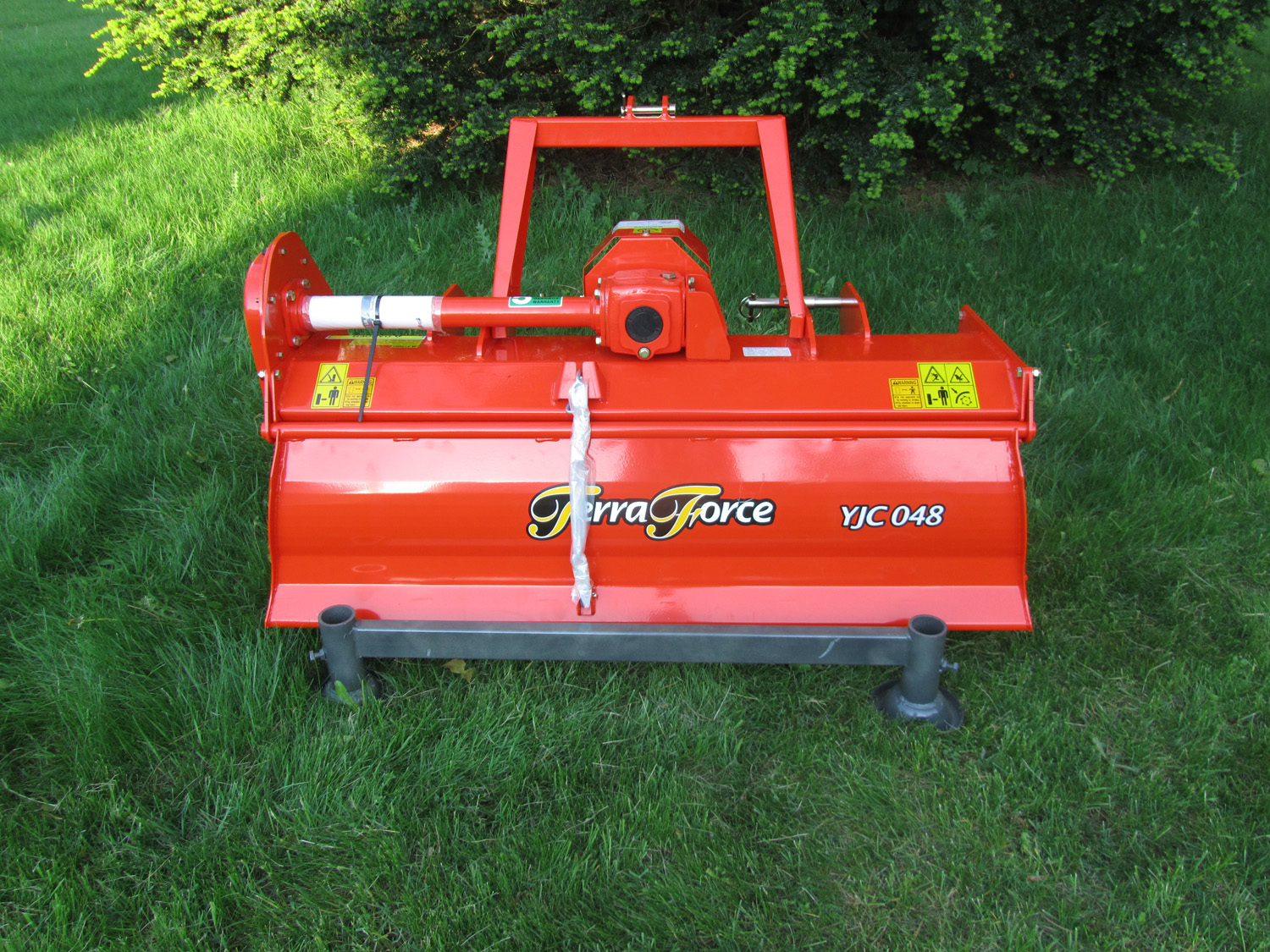

YJC 048
|
48"
|
20
|
53"
|
330lb
|
TBA
|

|

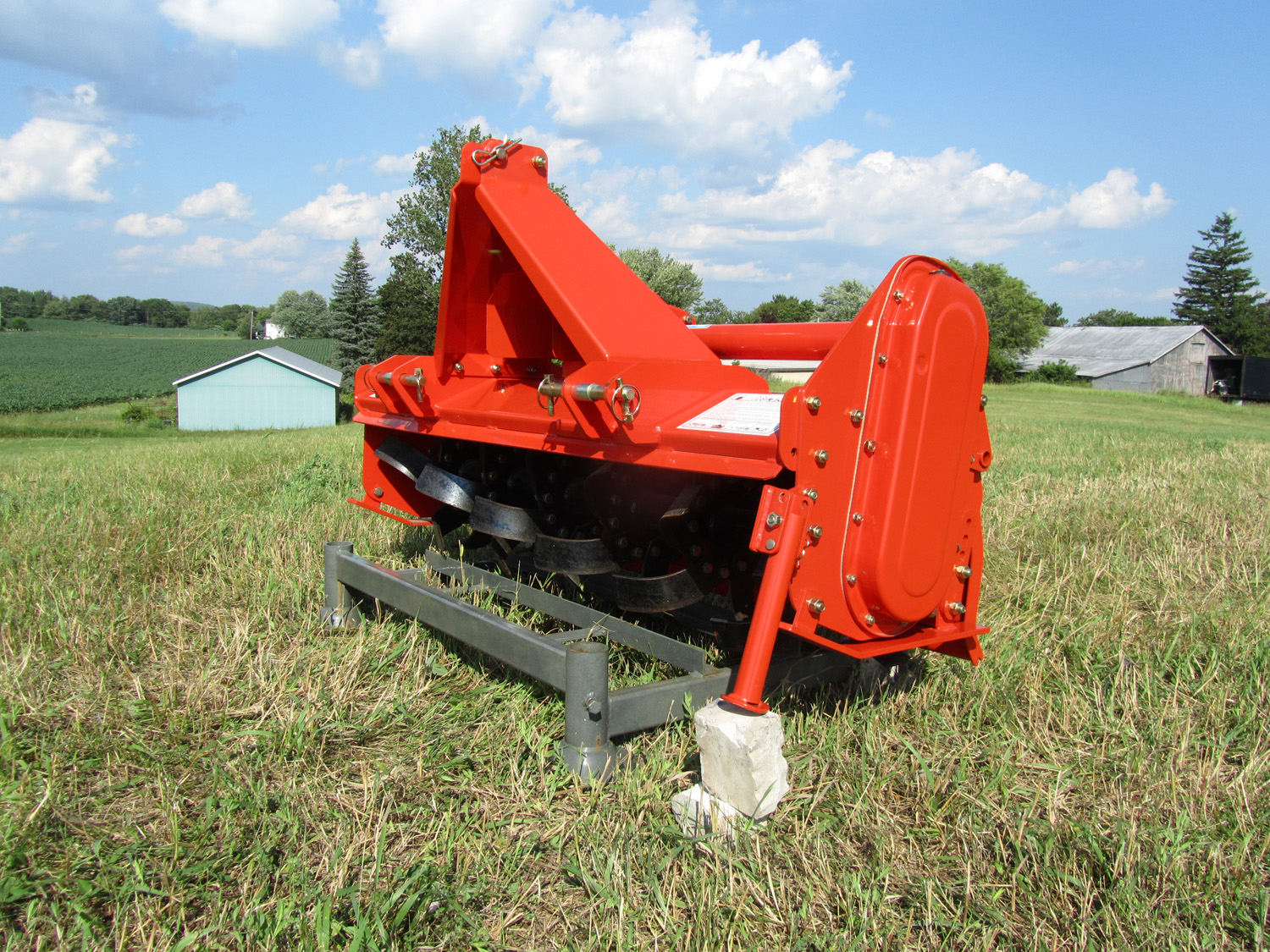

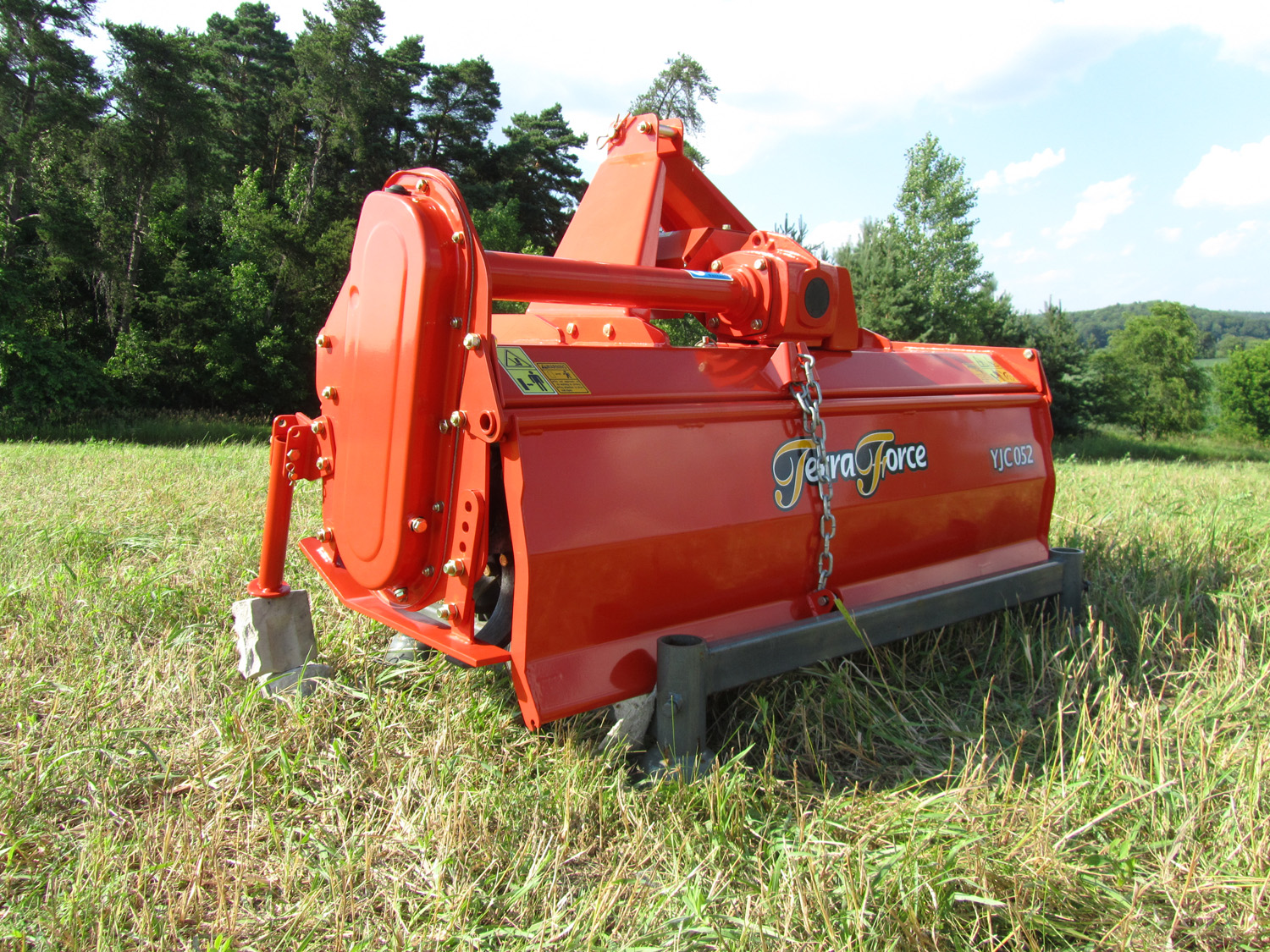

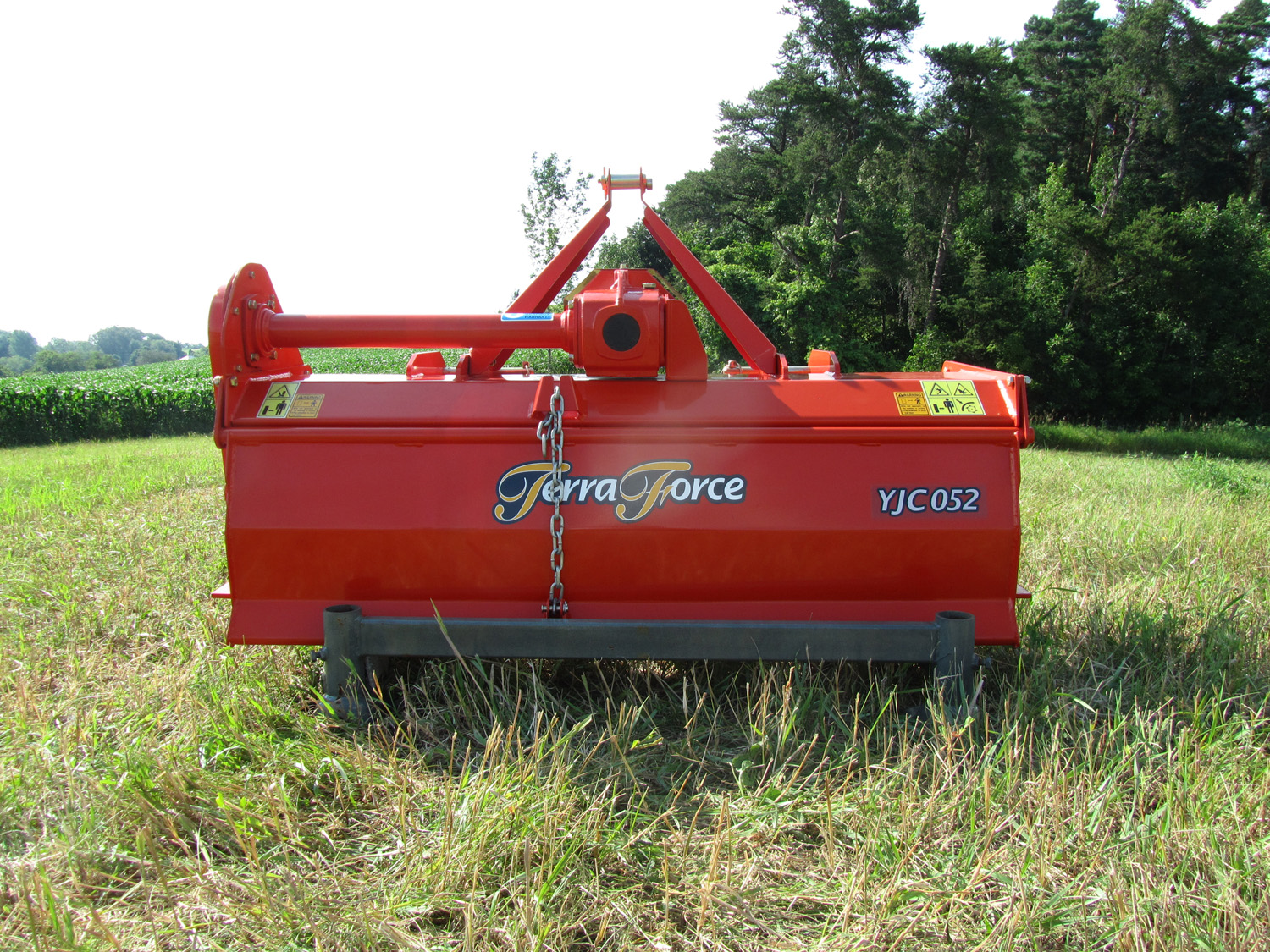

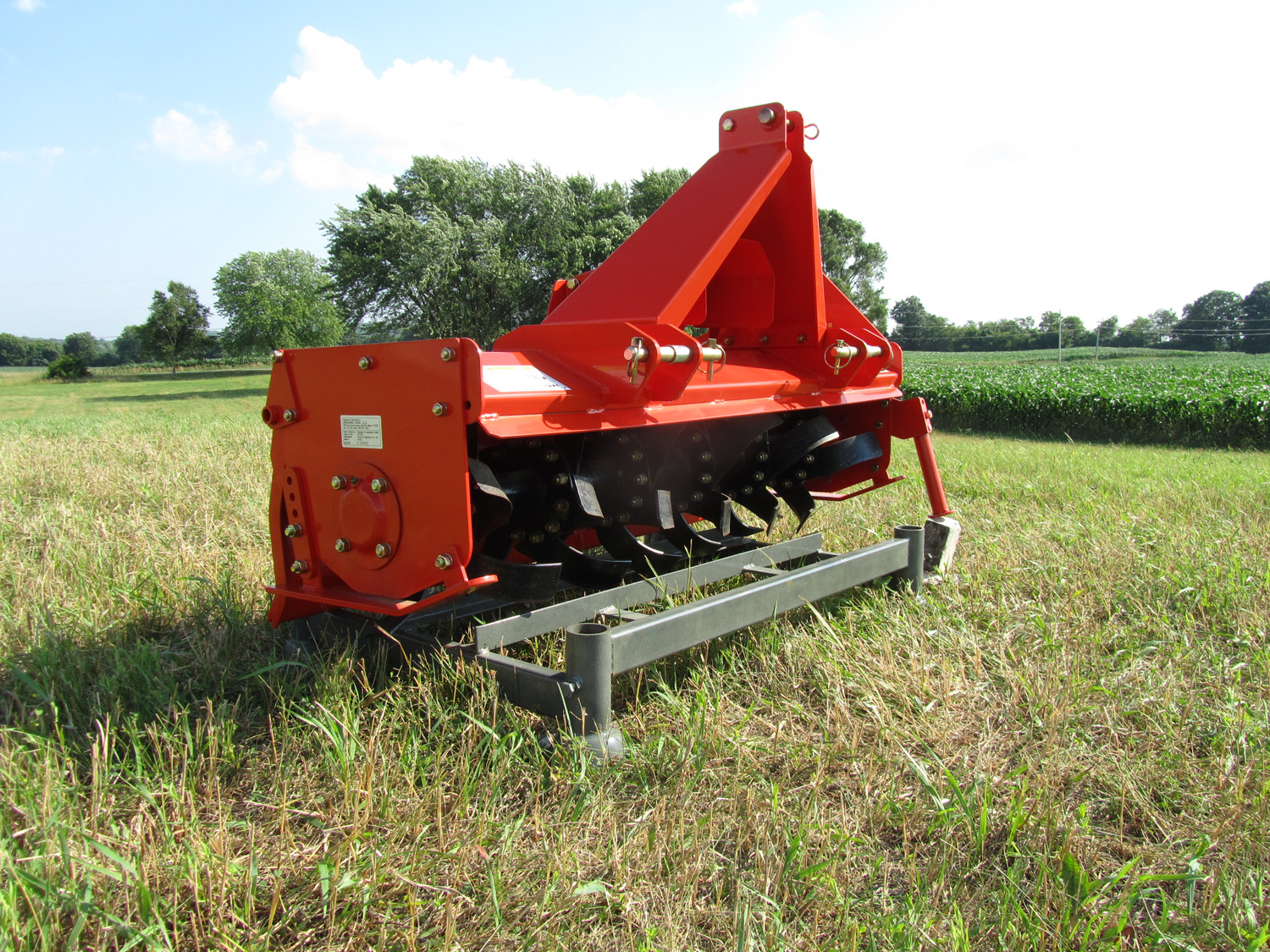

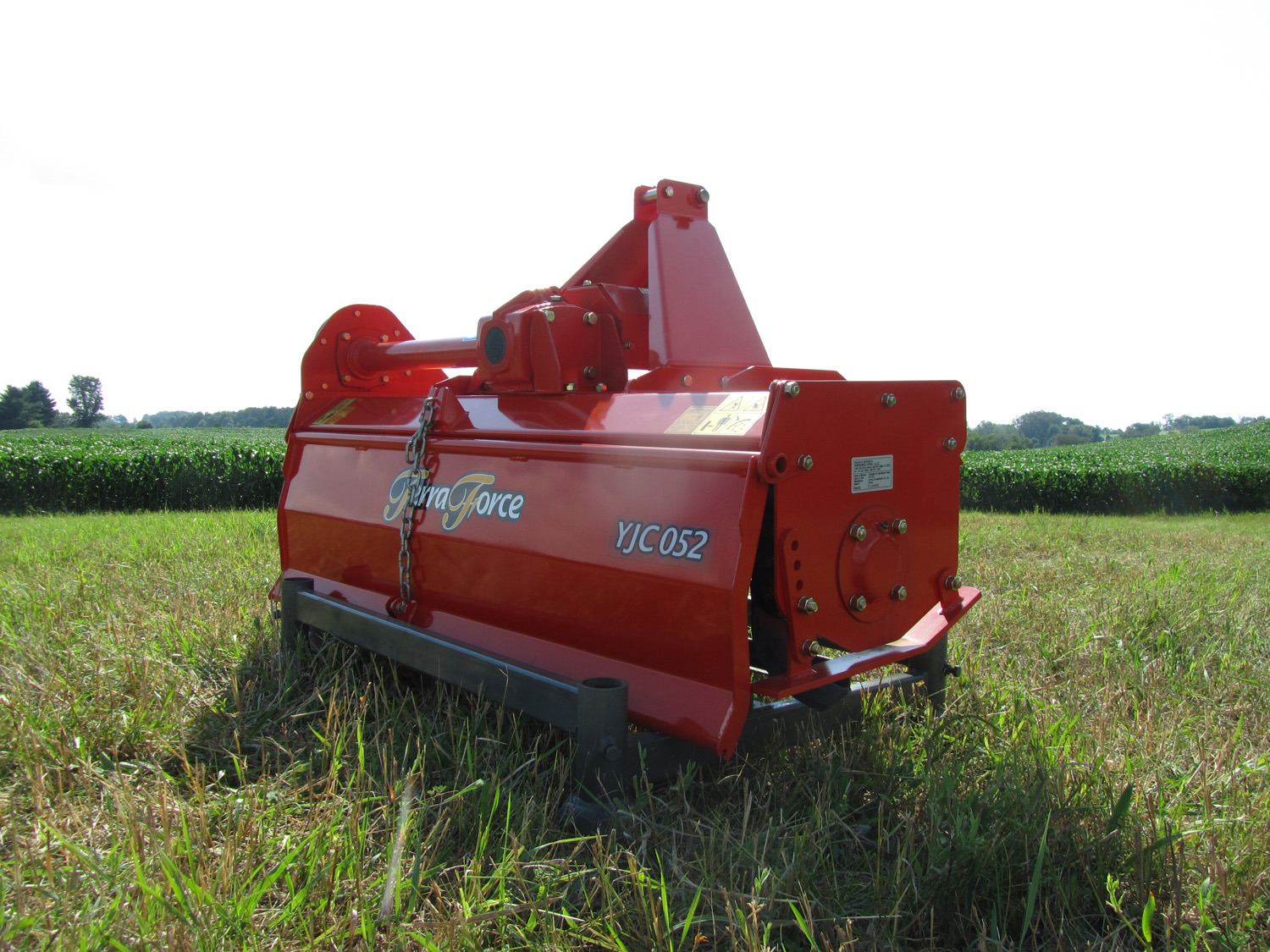

YJC 052
|
52"
|
36
|
57"
|
450lb
|
15-35
|


|

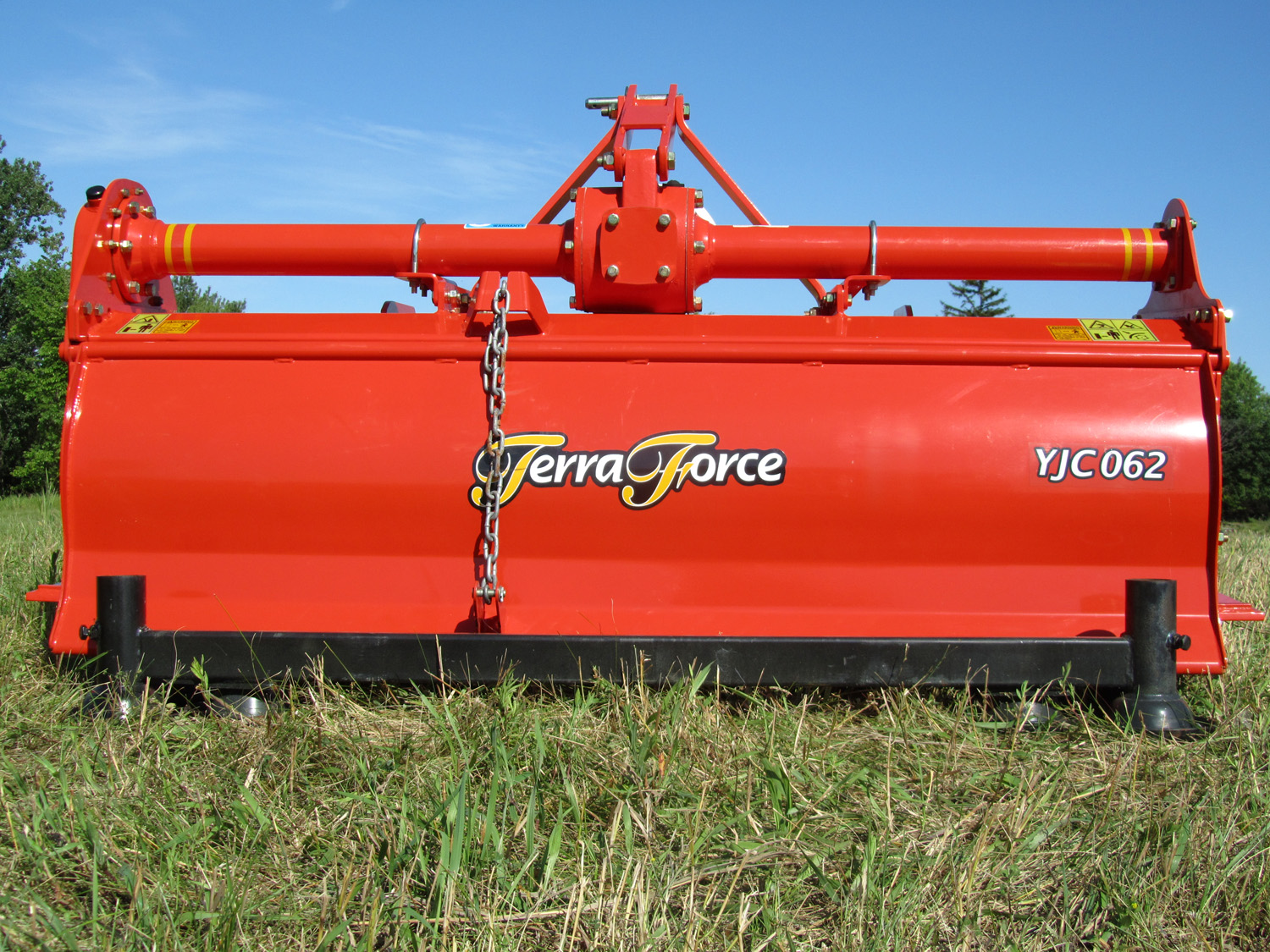

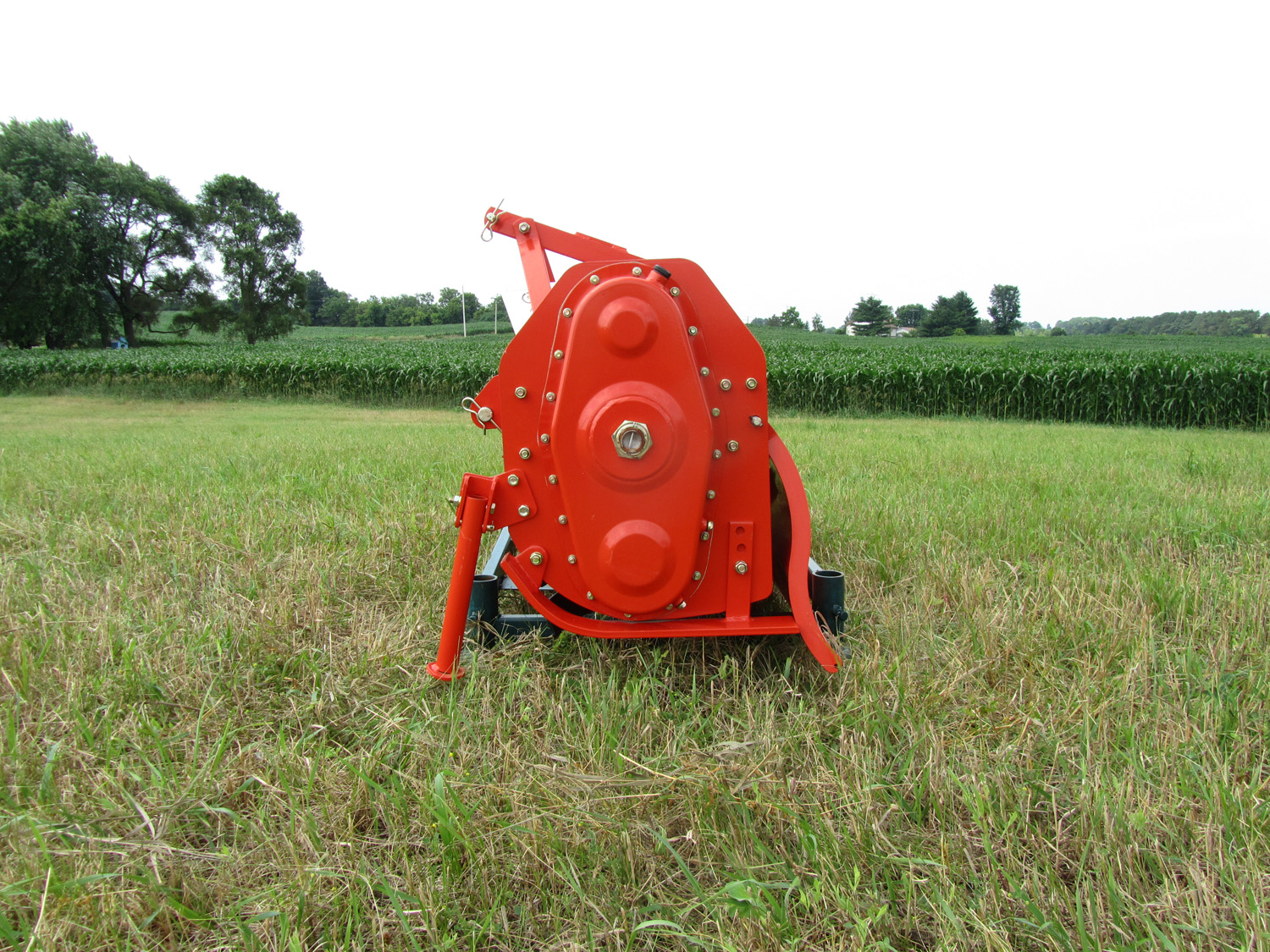

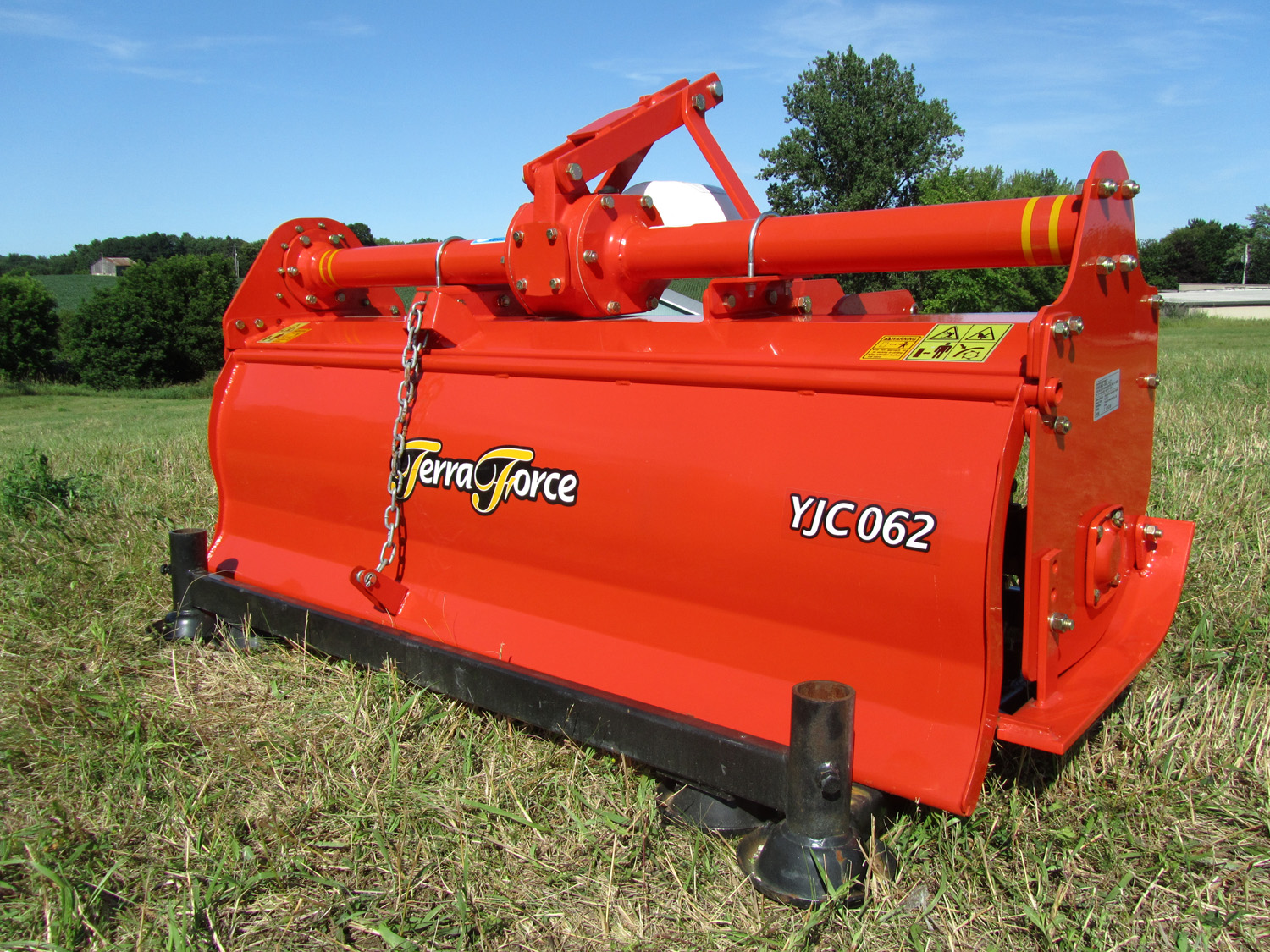

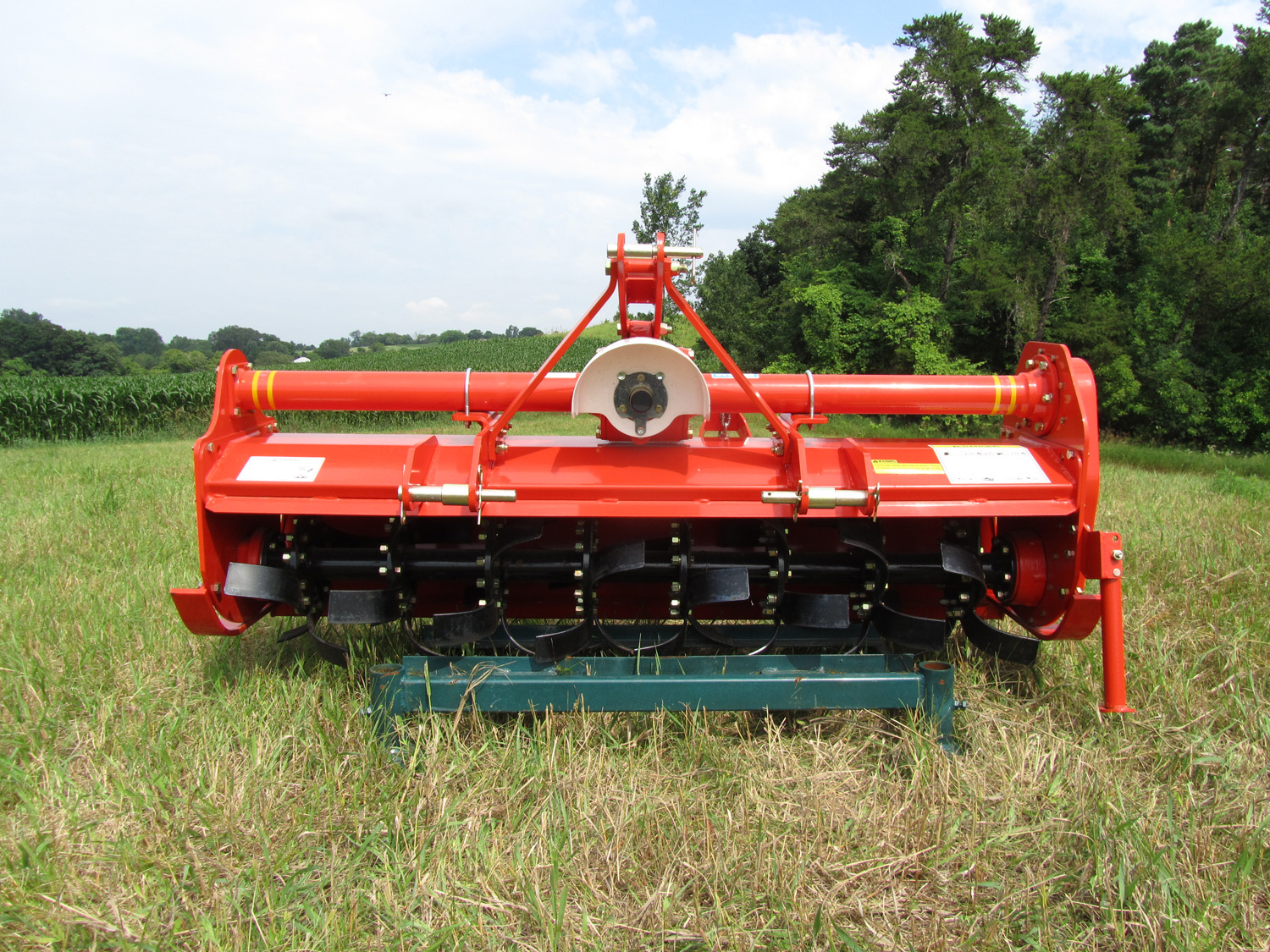

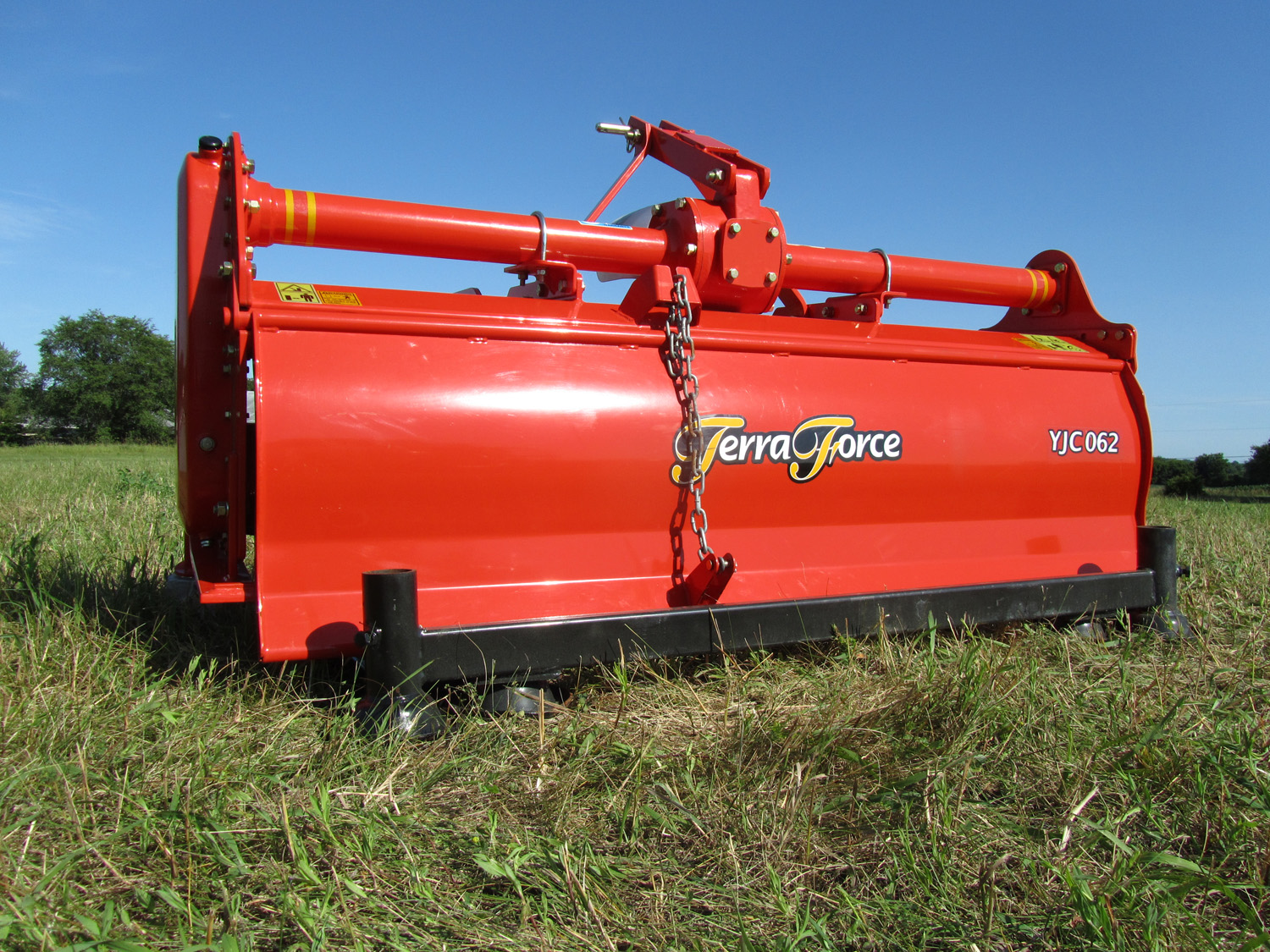

YJC 062
|
62"
|
36
|
66"
|
554lb
|
26-35
|

|

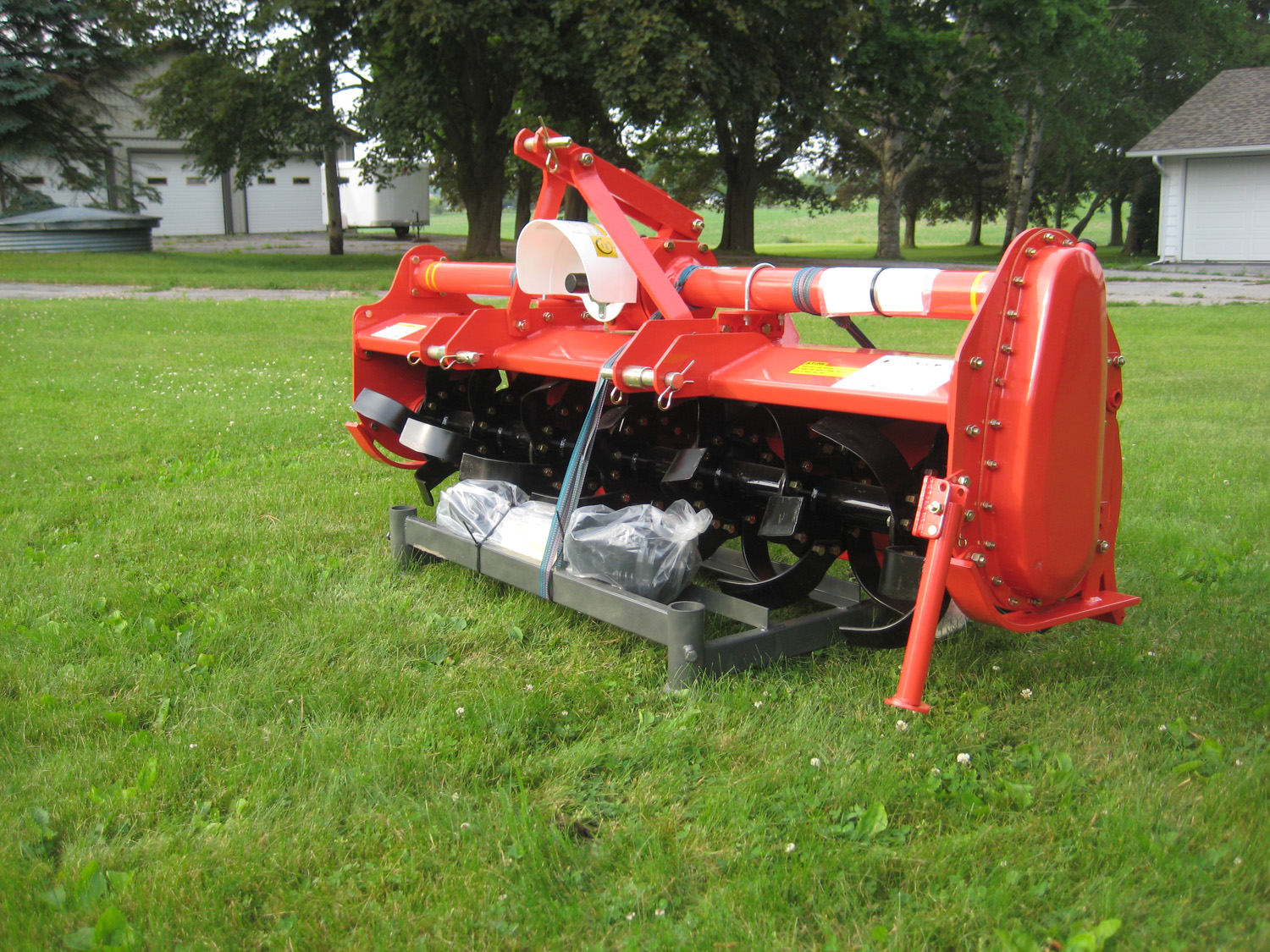

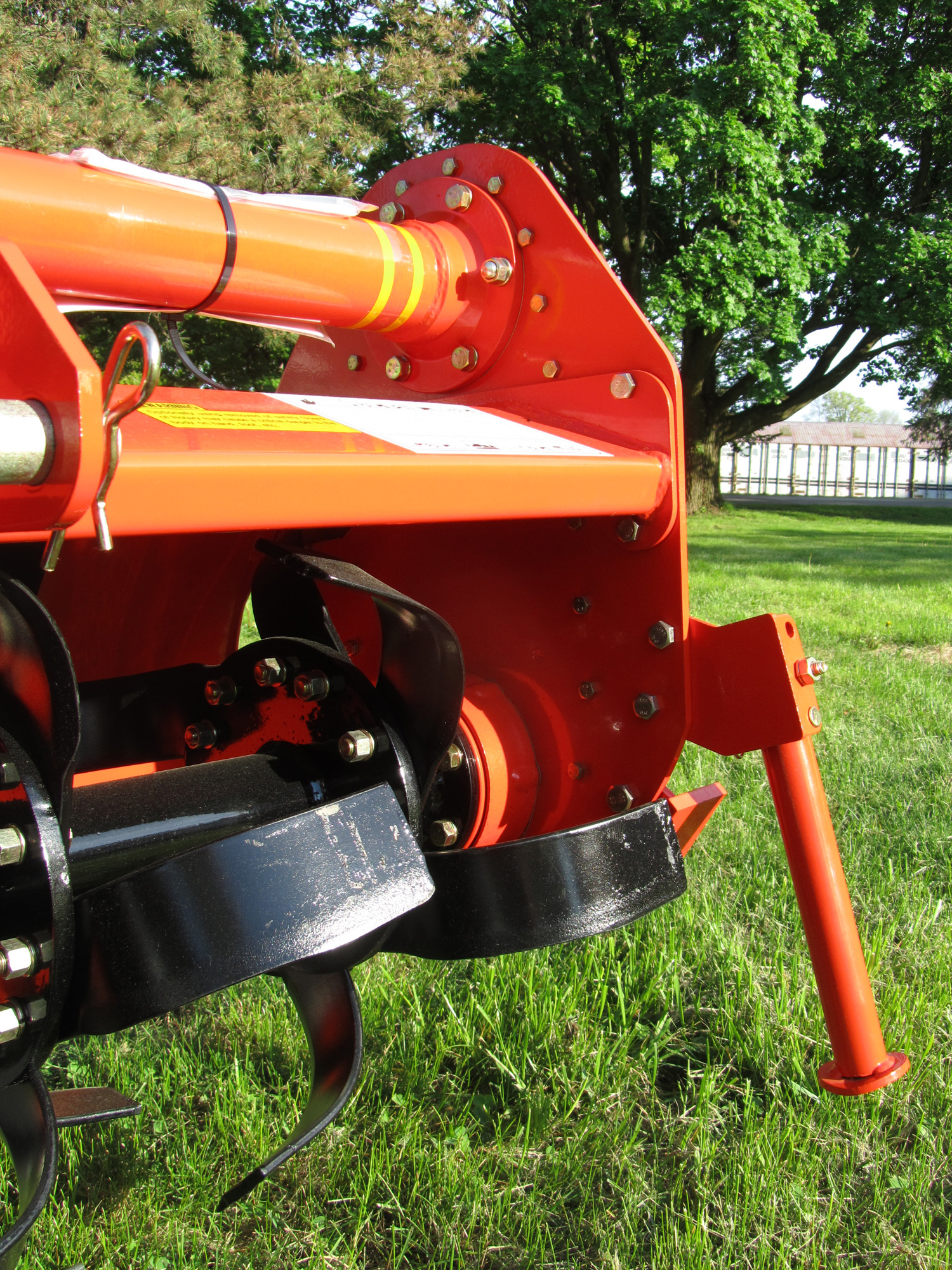

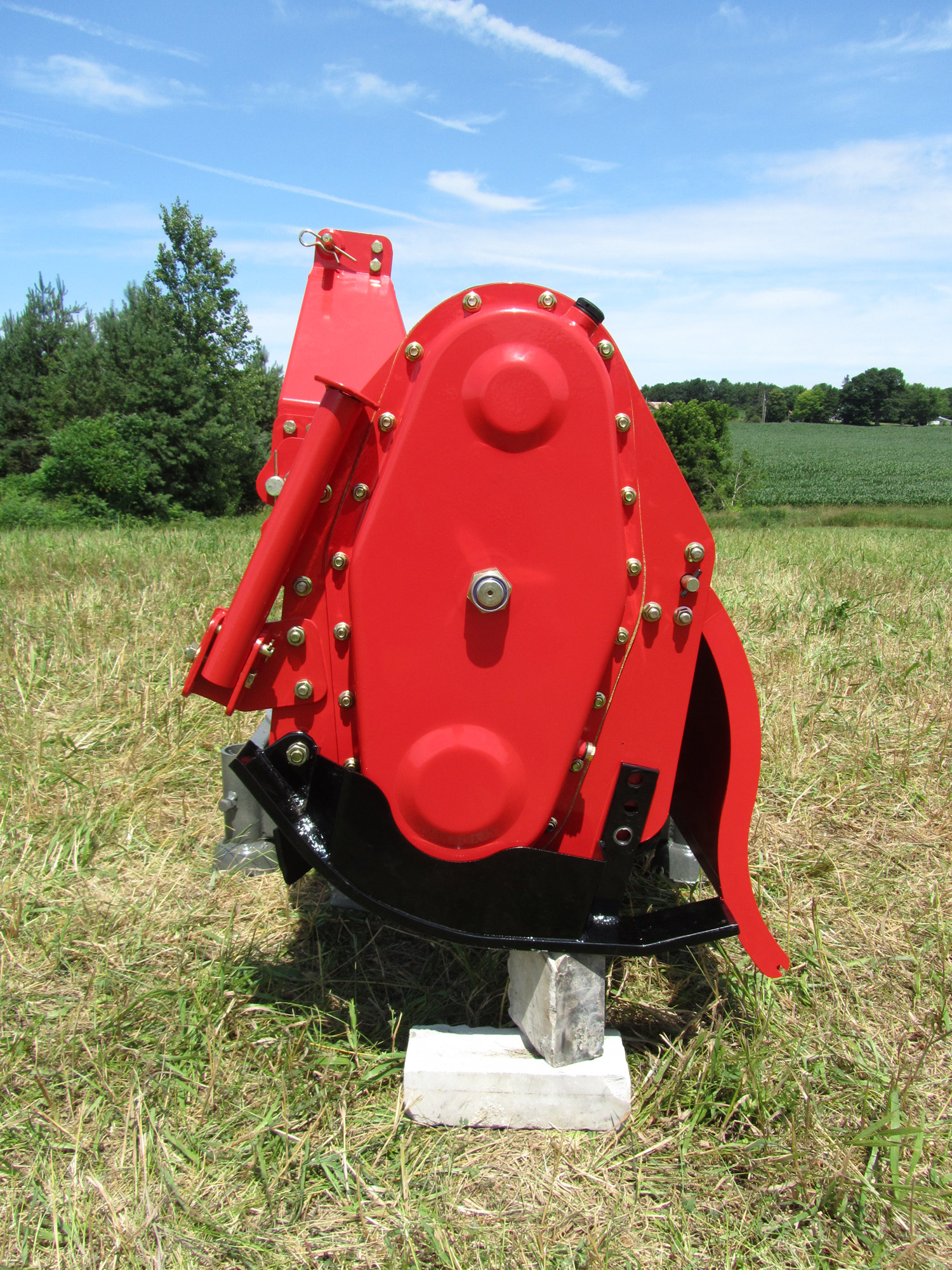

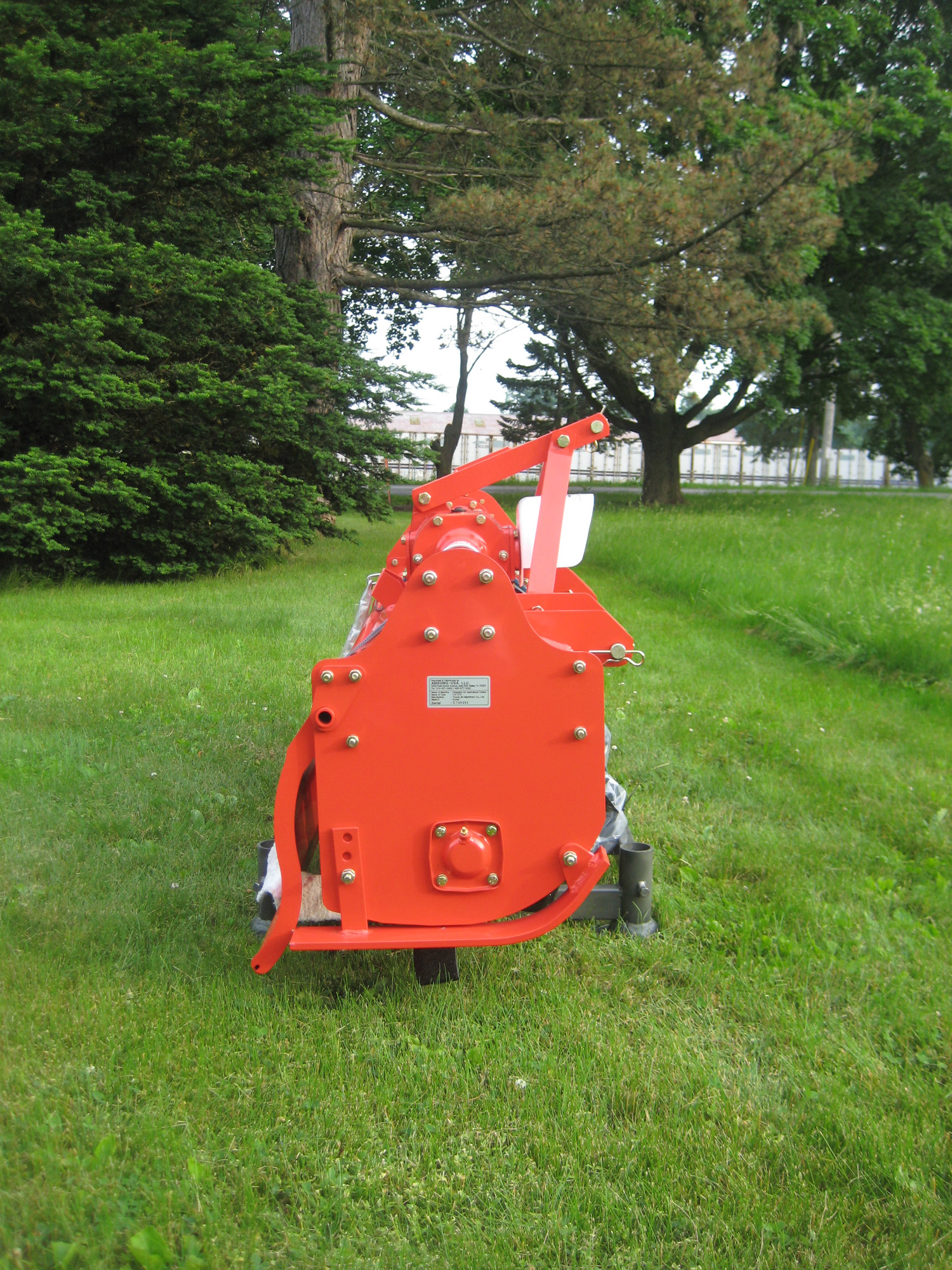

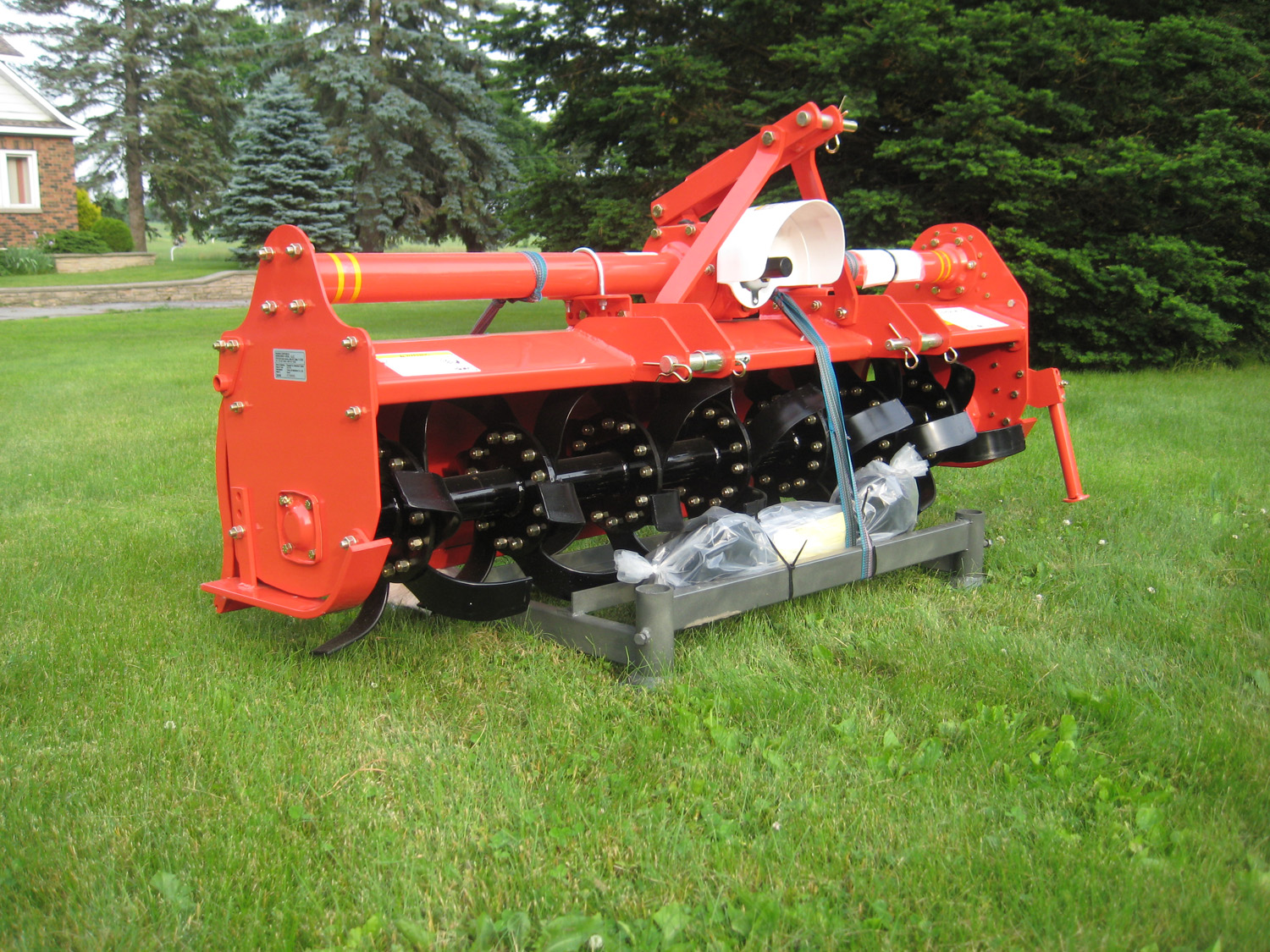

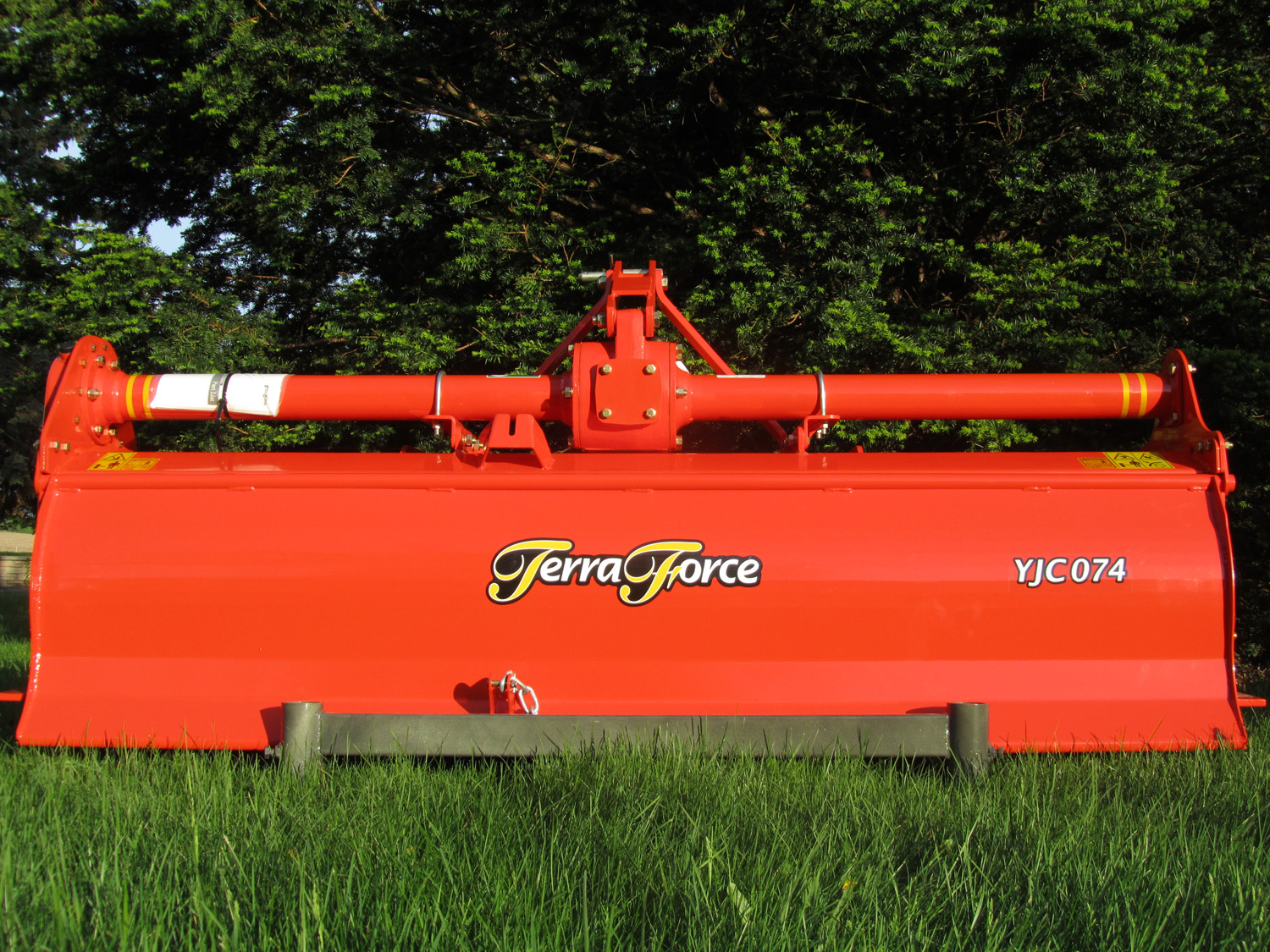

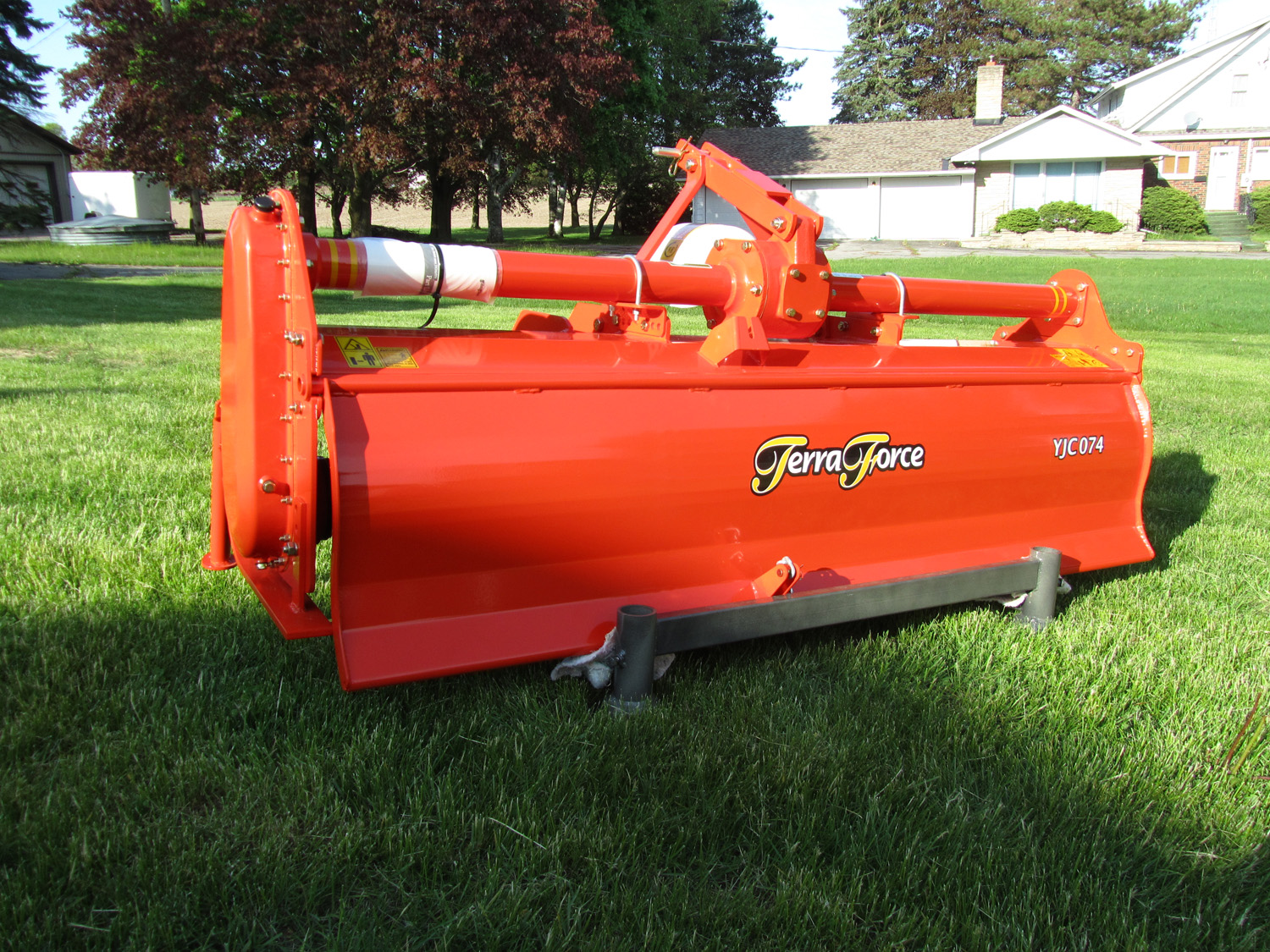

YJC 074
|
74"
|
42
|
78"
|
620lb
|
35-50
|


|

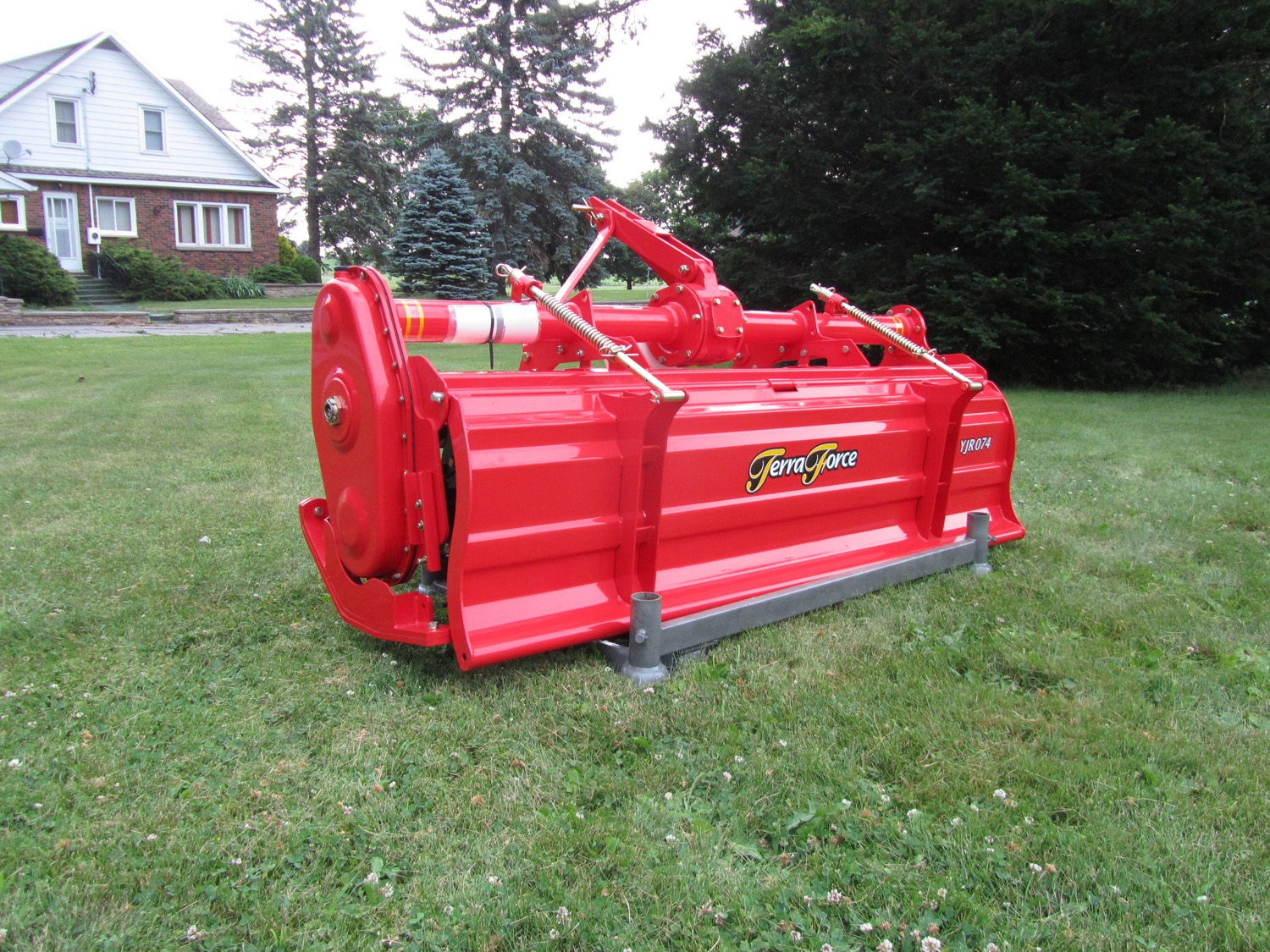

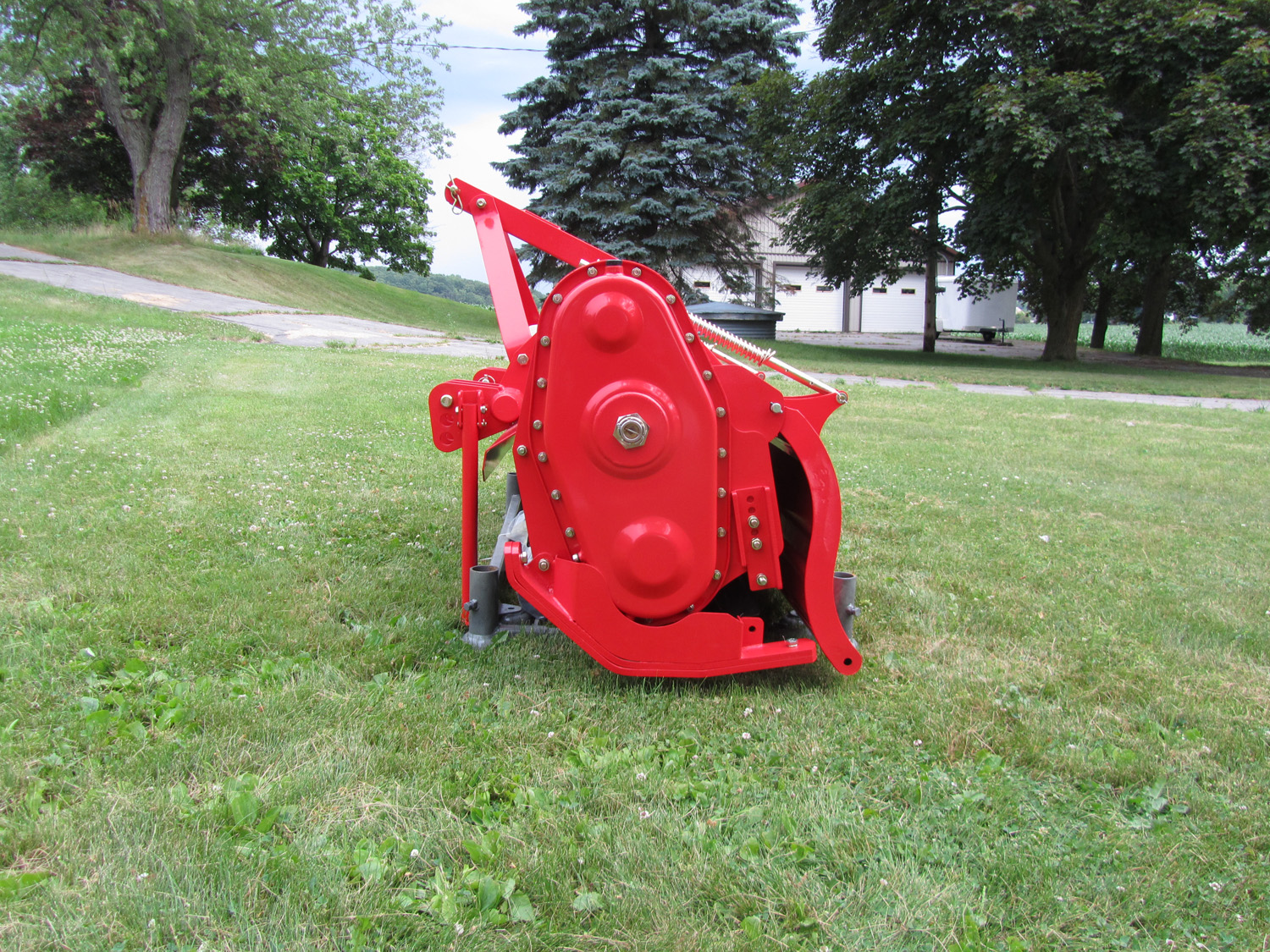

YJR Series Rotary Tillers
- Slip clutch PTO
- Parking stand included
- 6 Blade per flange
- Gear drive type
- Adjustable skid shoes
- Gearbox: 5 yr limited warranty
- Click photos to see a larger image
| Model
|
Tilling Width
|
Number Blades per Machine
|
Total Width
|
Weight (Pounds)
|
Recommended Tractor PTO HP
|

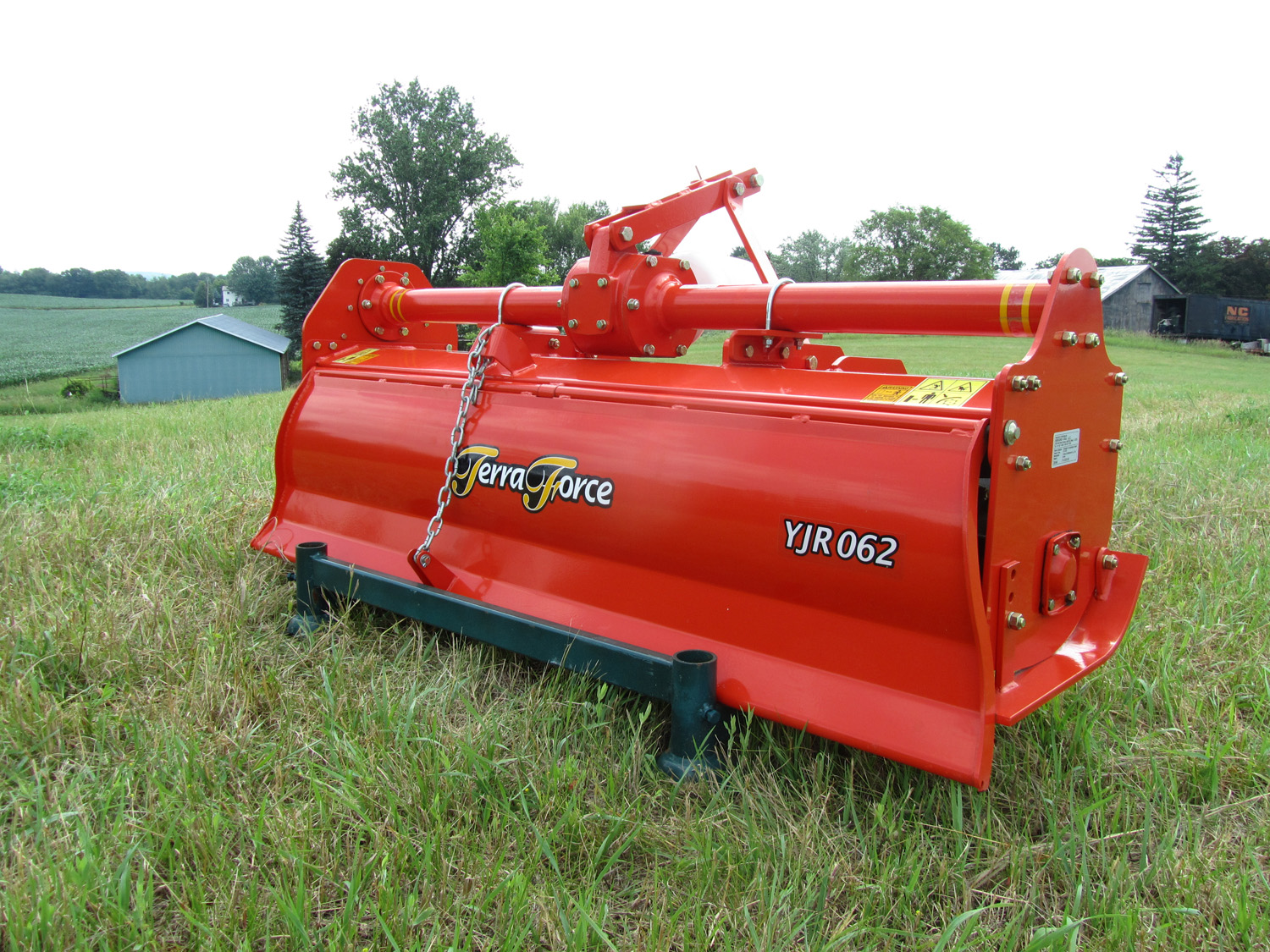

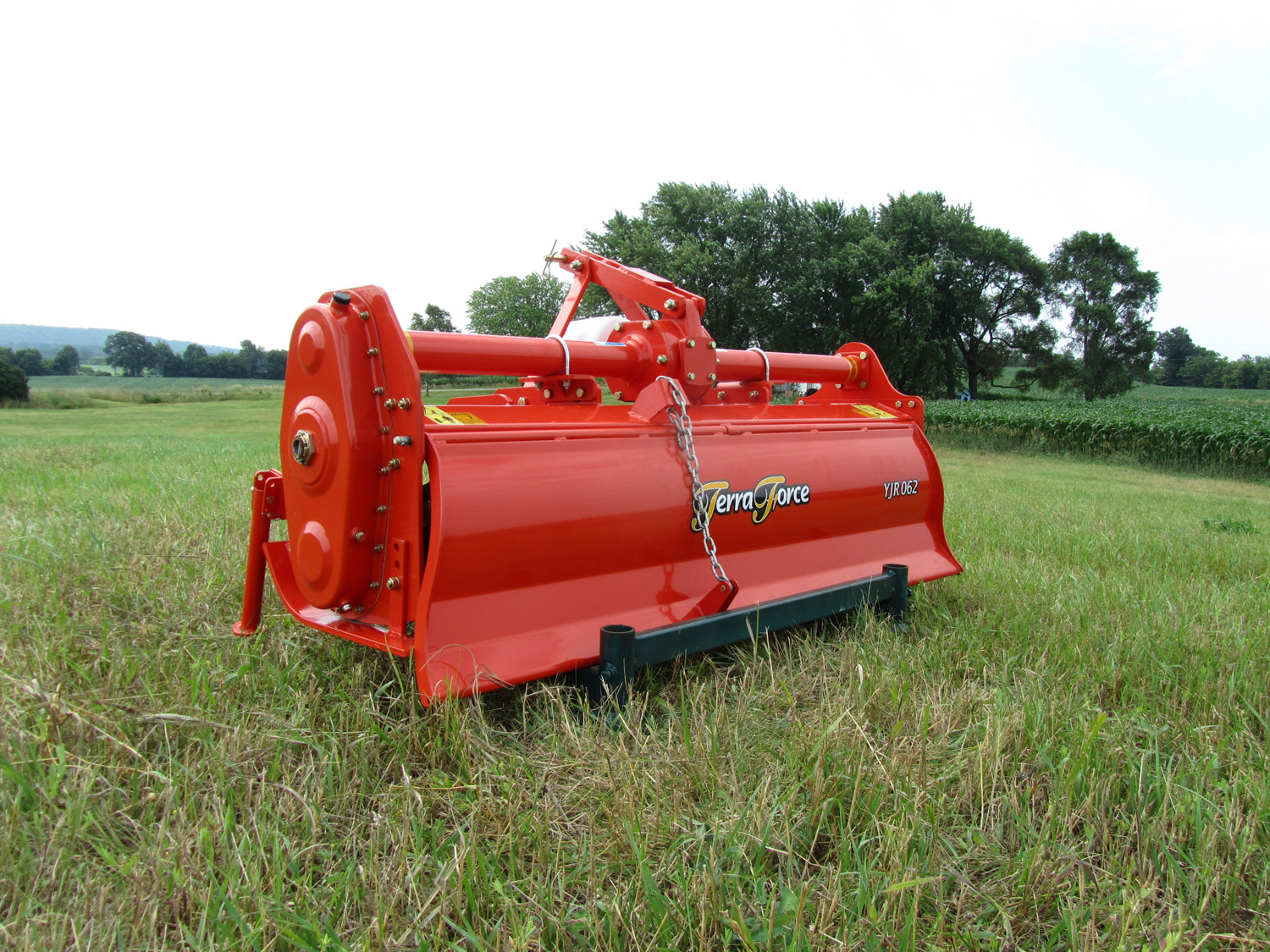

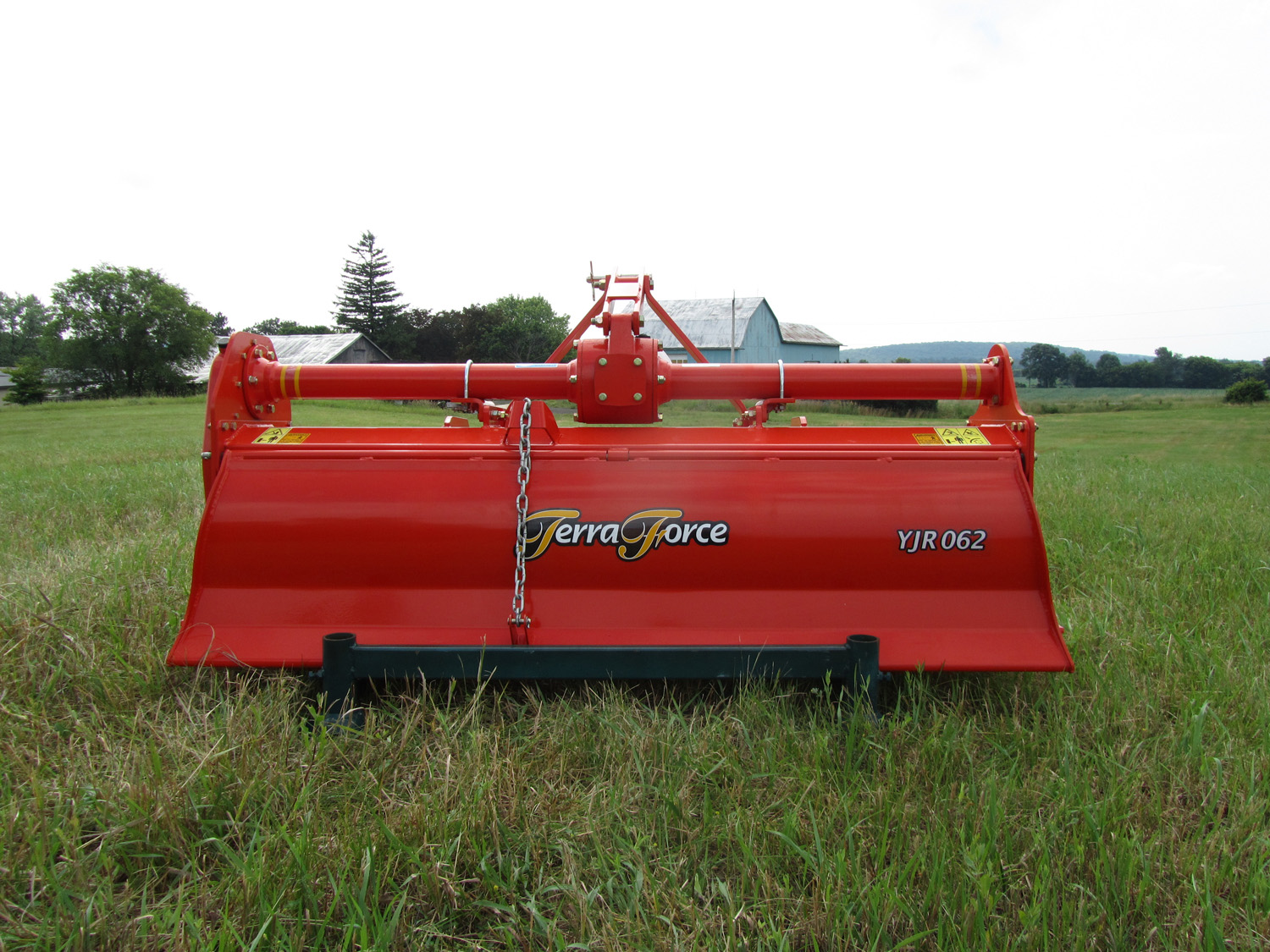

YJR 062
|
62"
|
48
|
69"
|
753lb
|
26-35
|


|

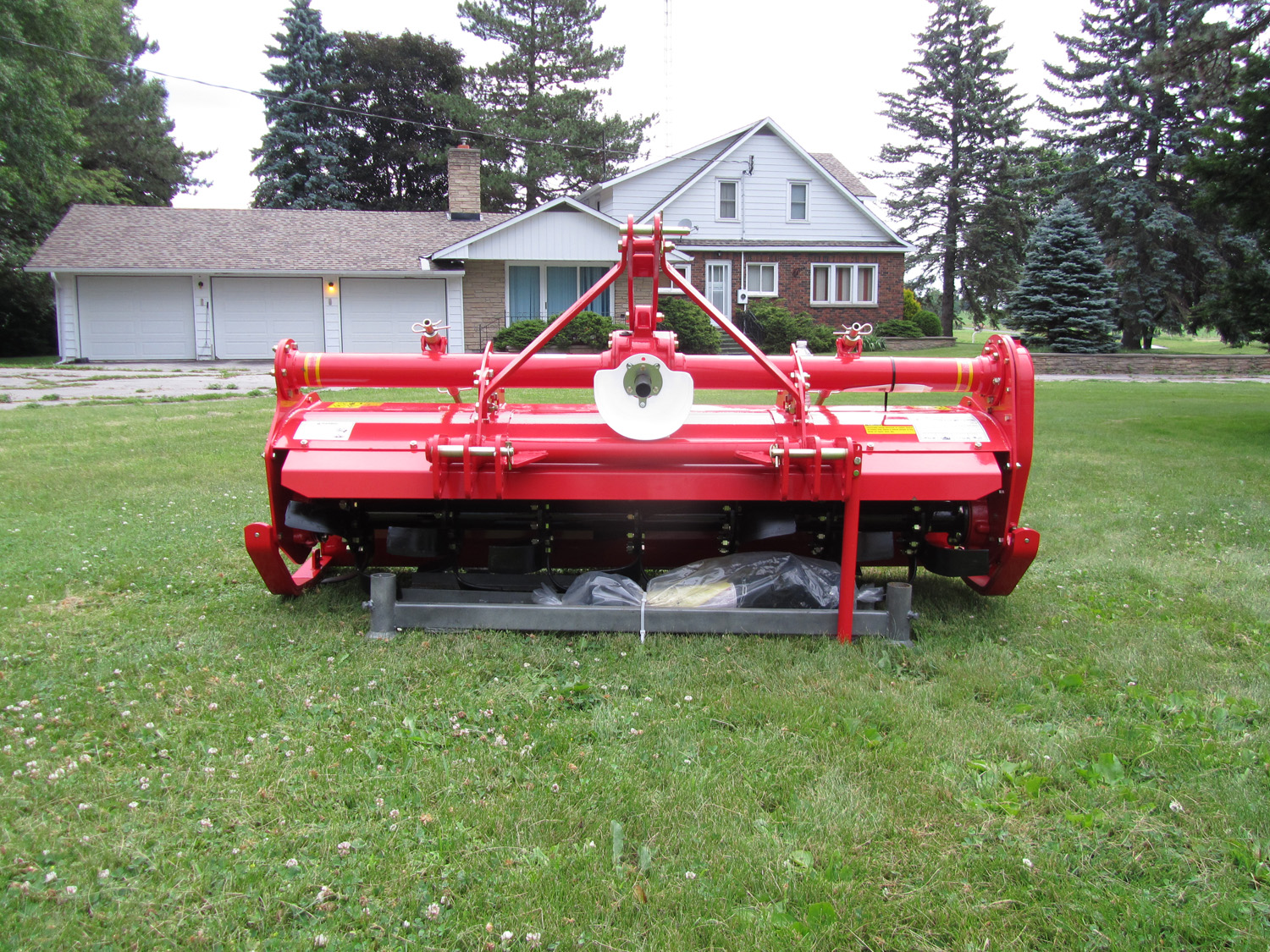

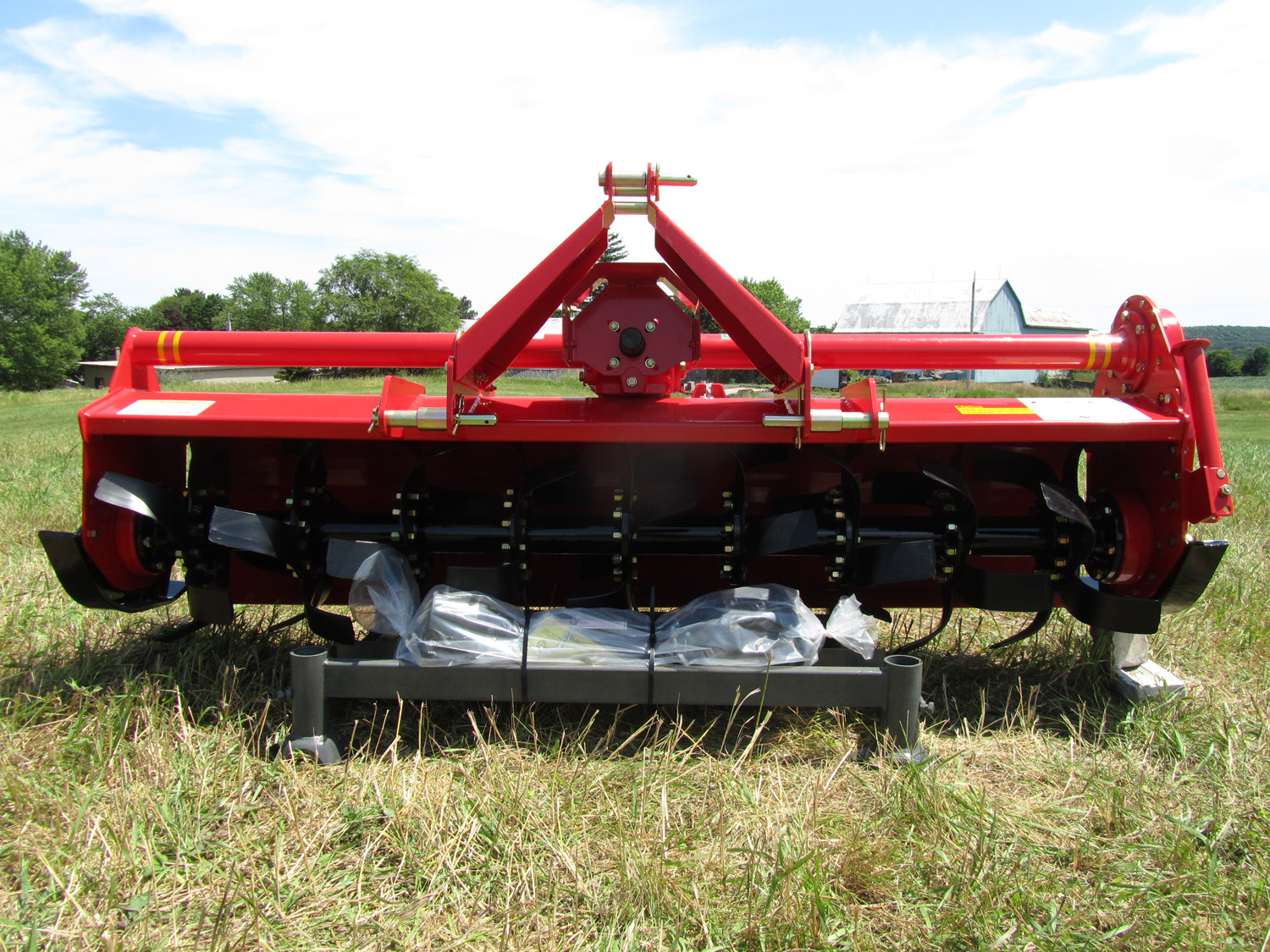

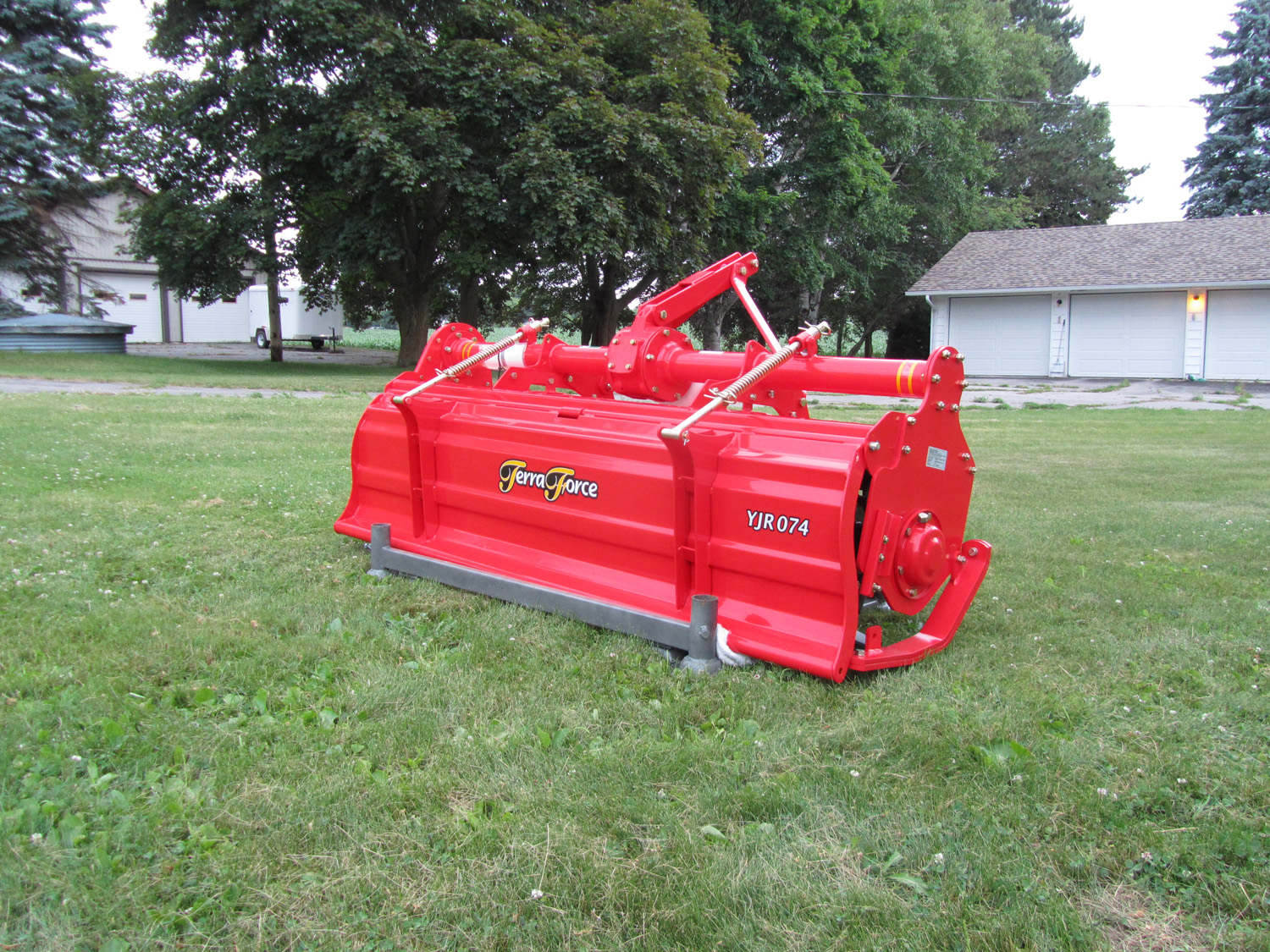

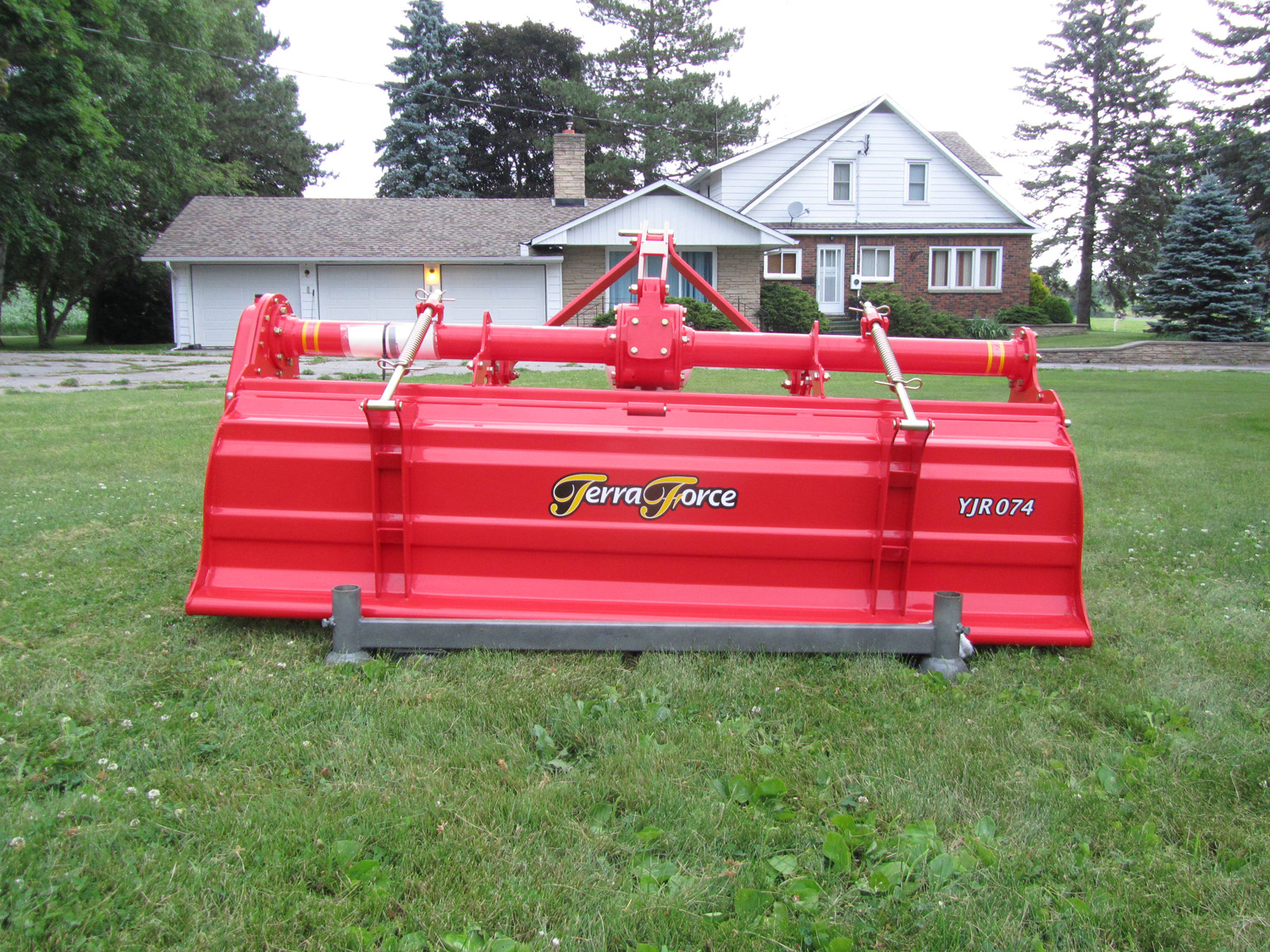

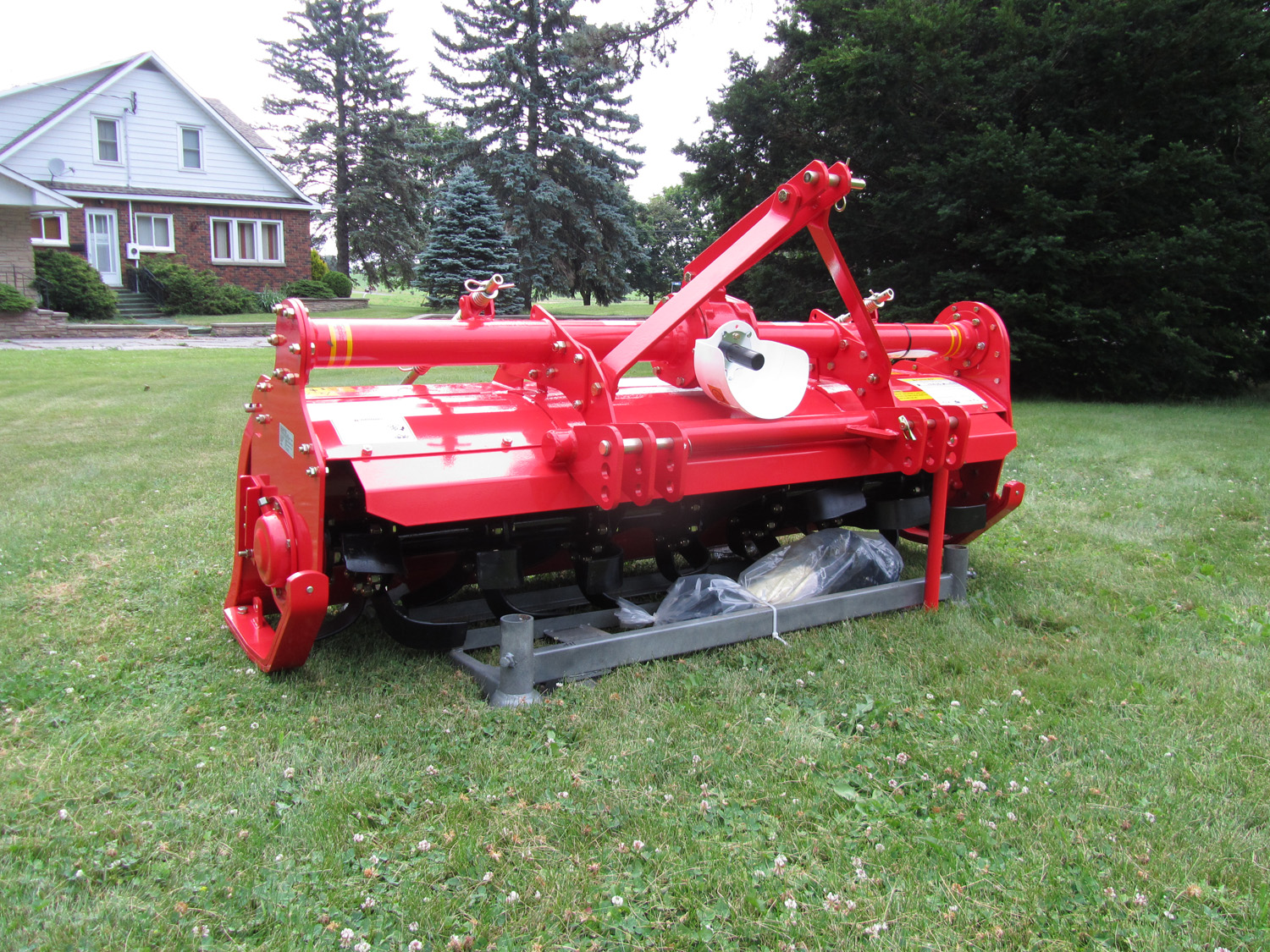

YJR 074
|
74"
|
42
|
80"
|
992lb
|
46-52
|


|

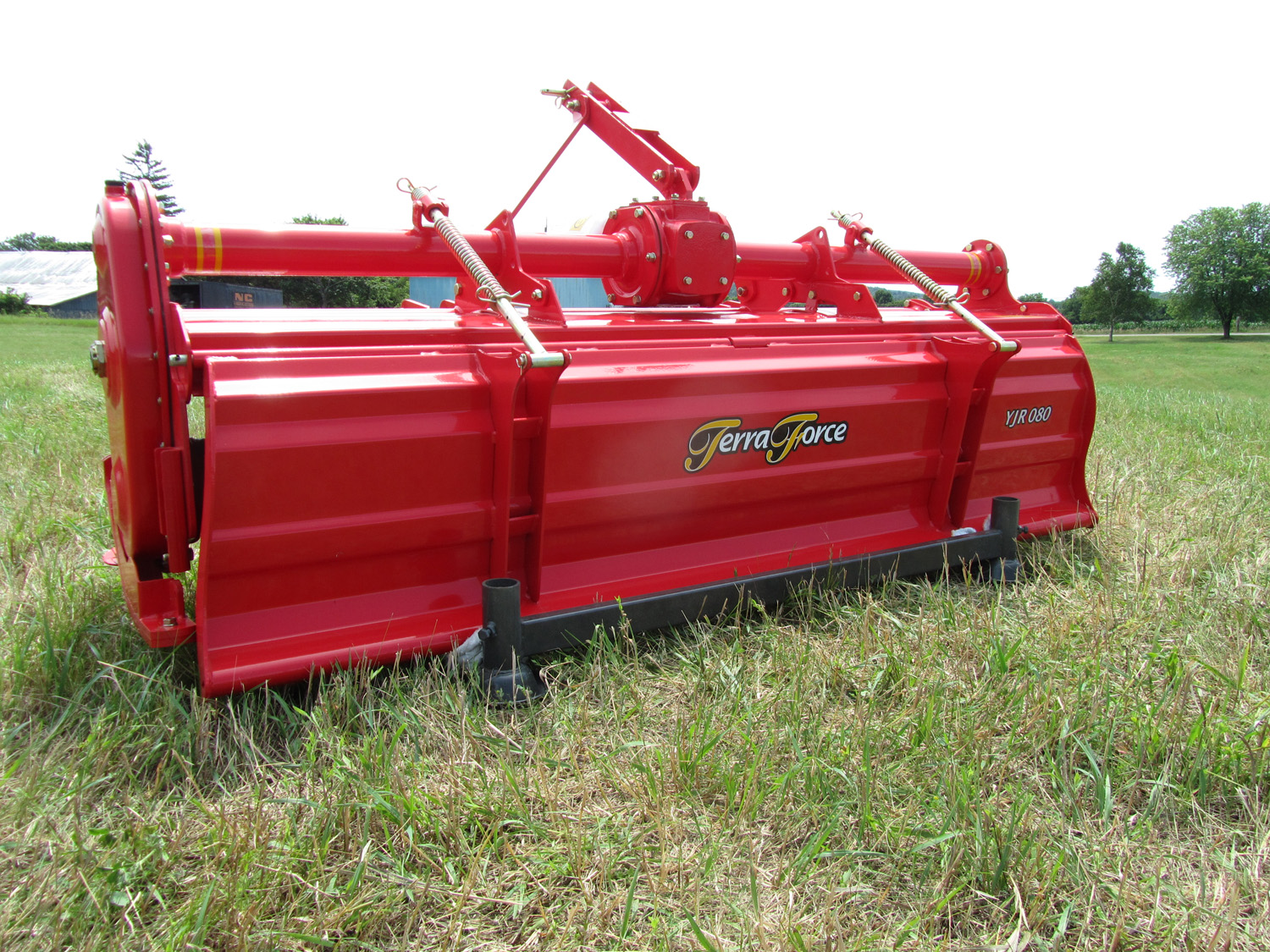

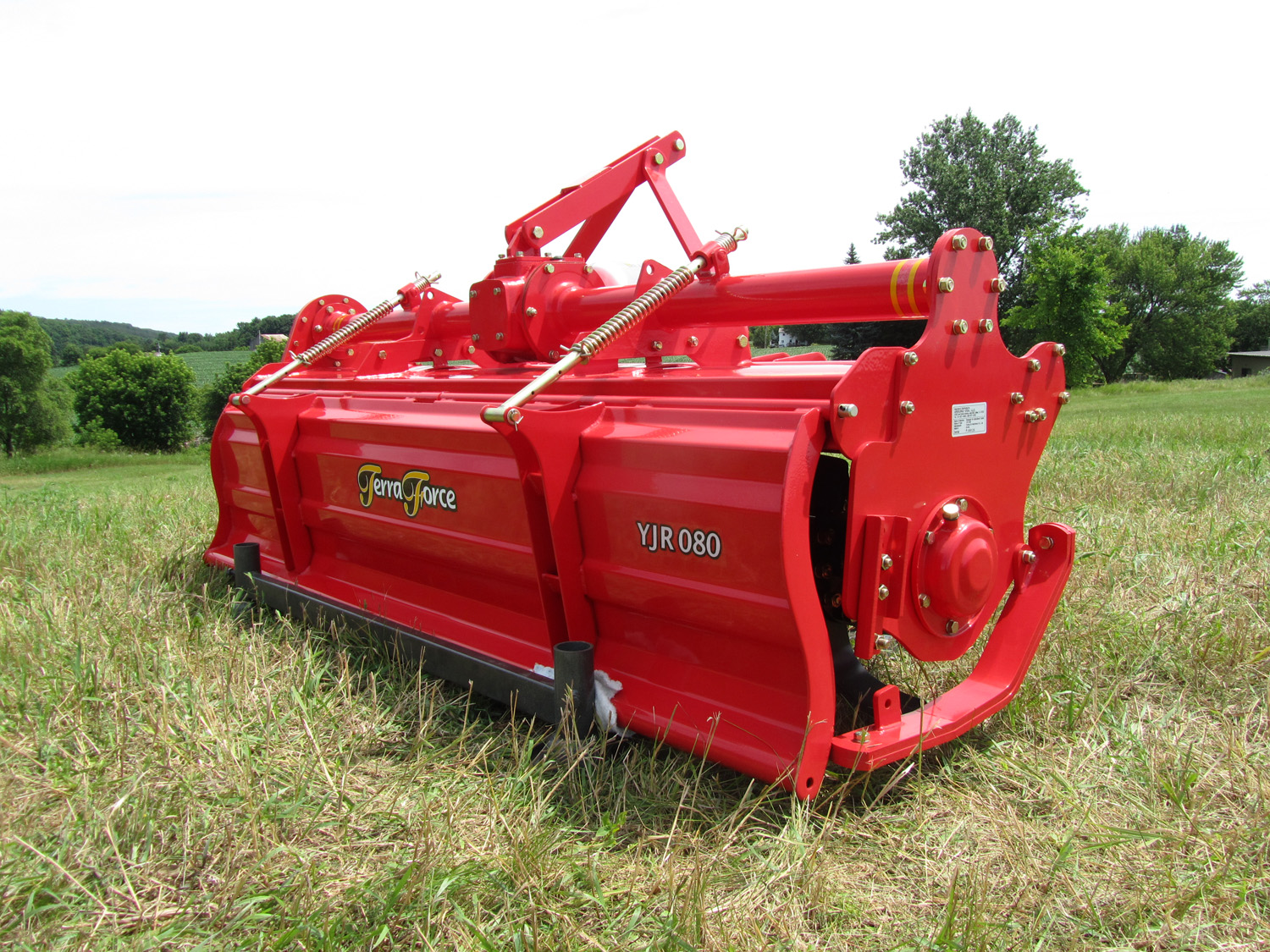

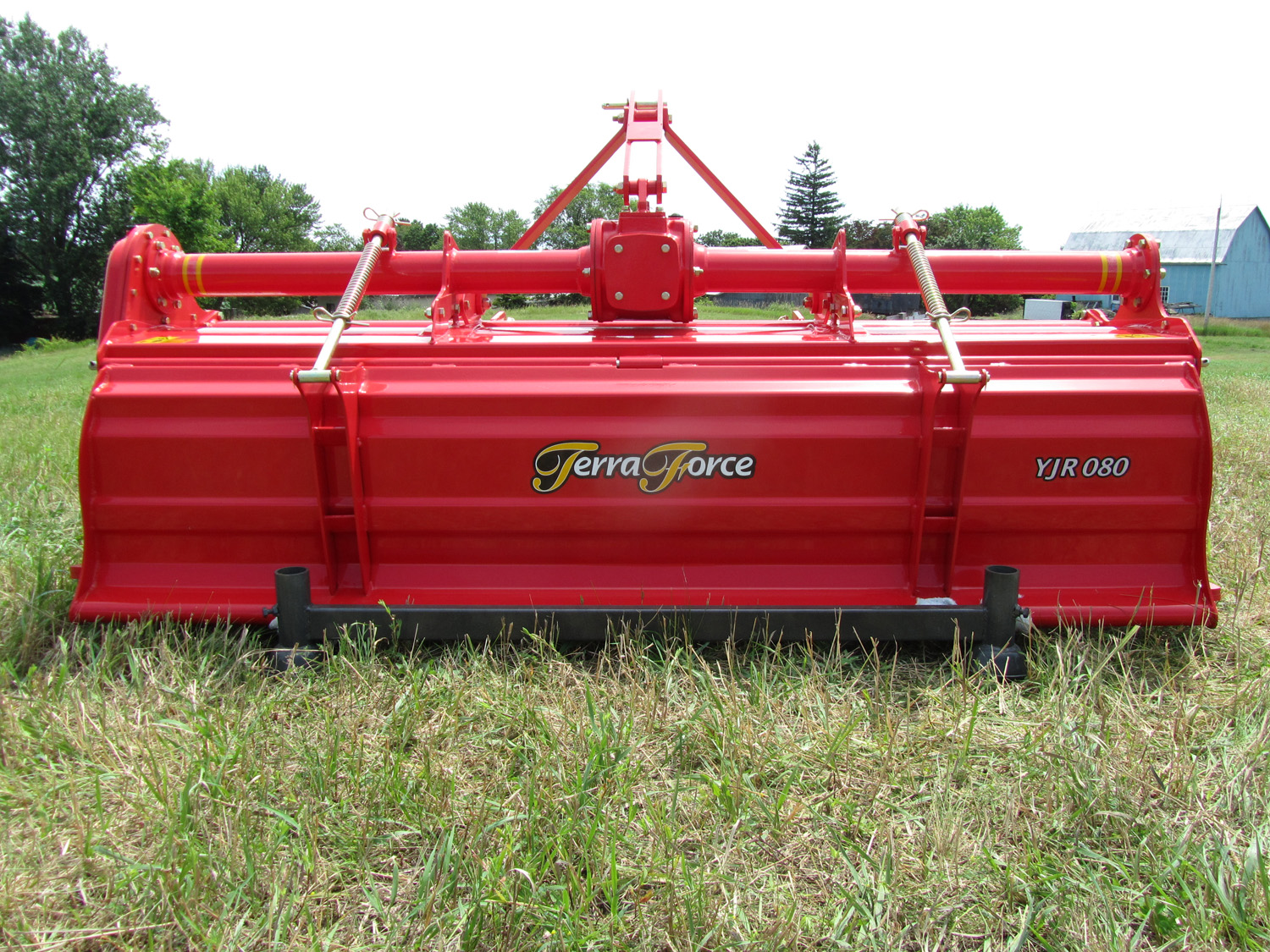

YJR 080
|
80"
|
48
|
88"
|
1,150lb
|
50-60
|


|

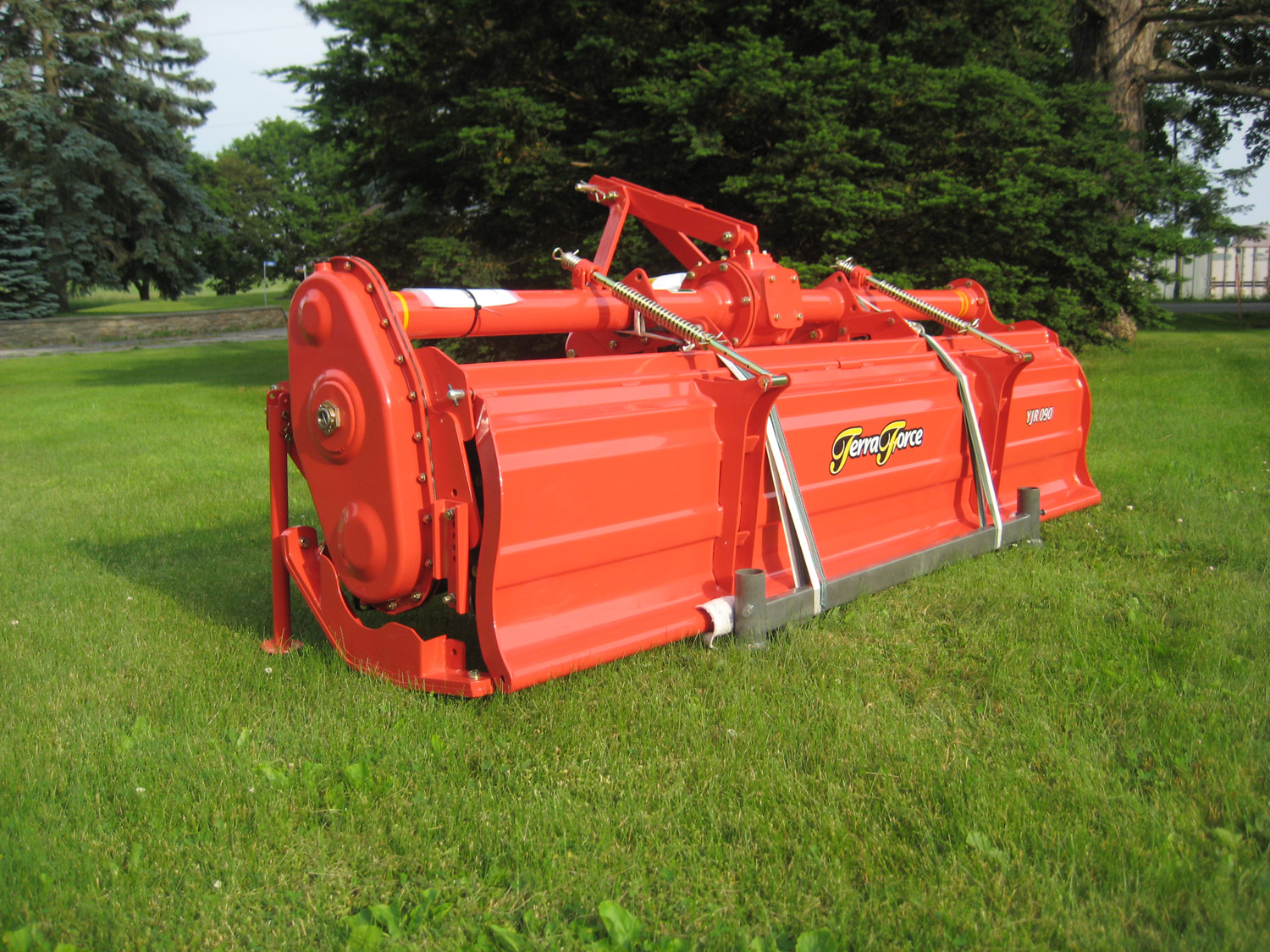

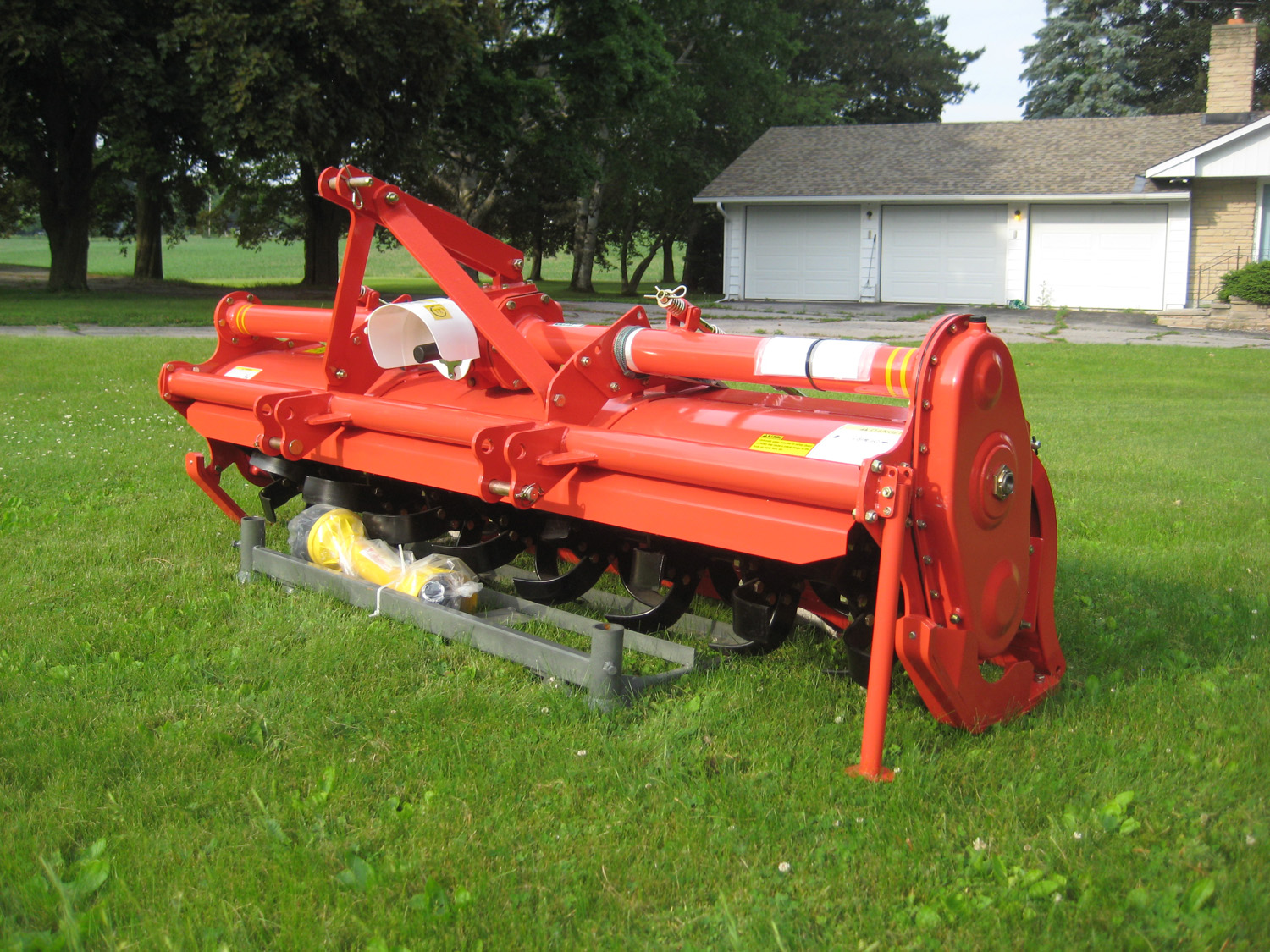

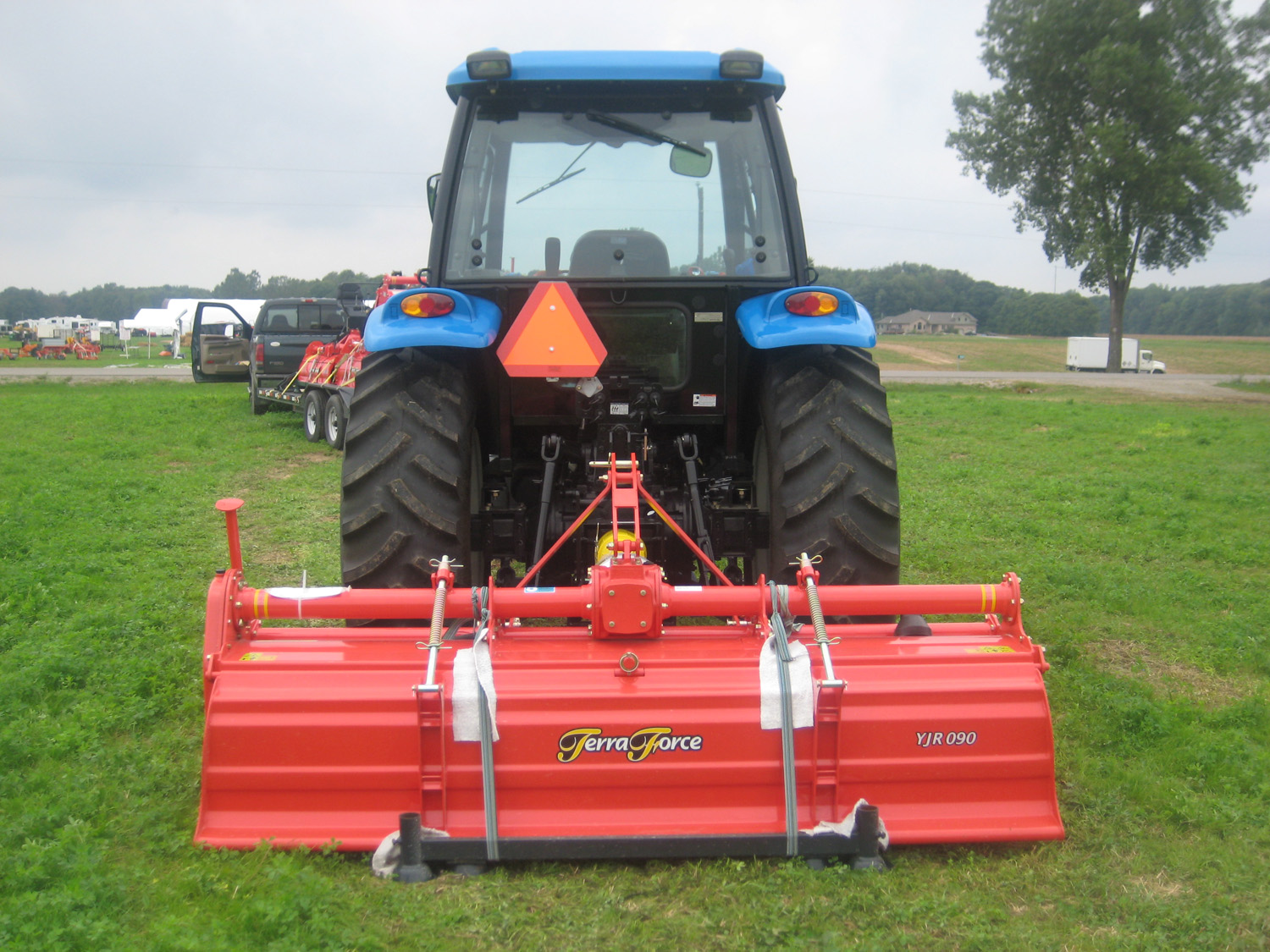

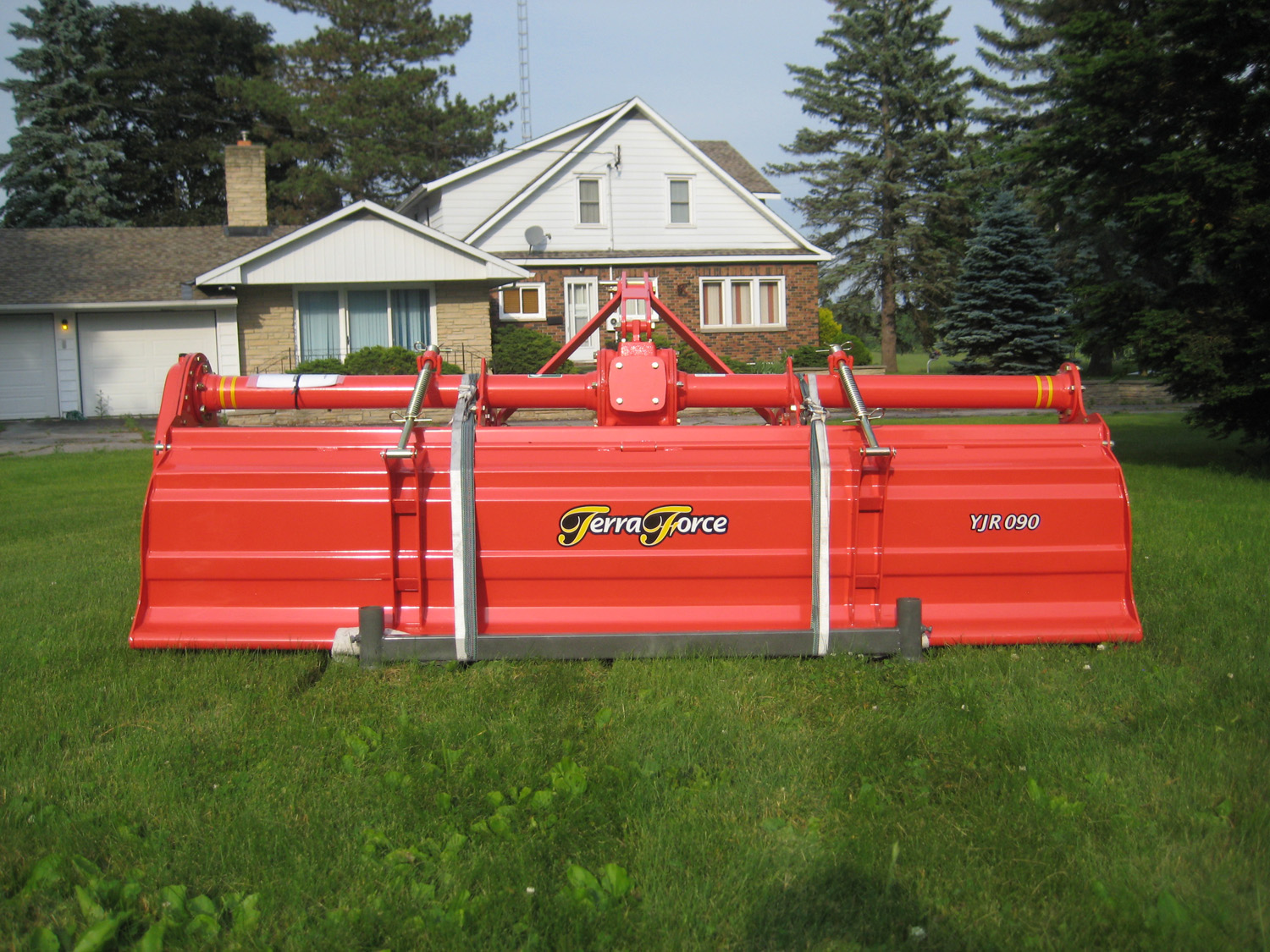

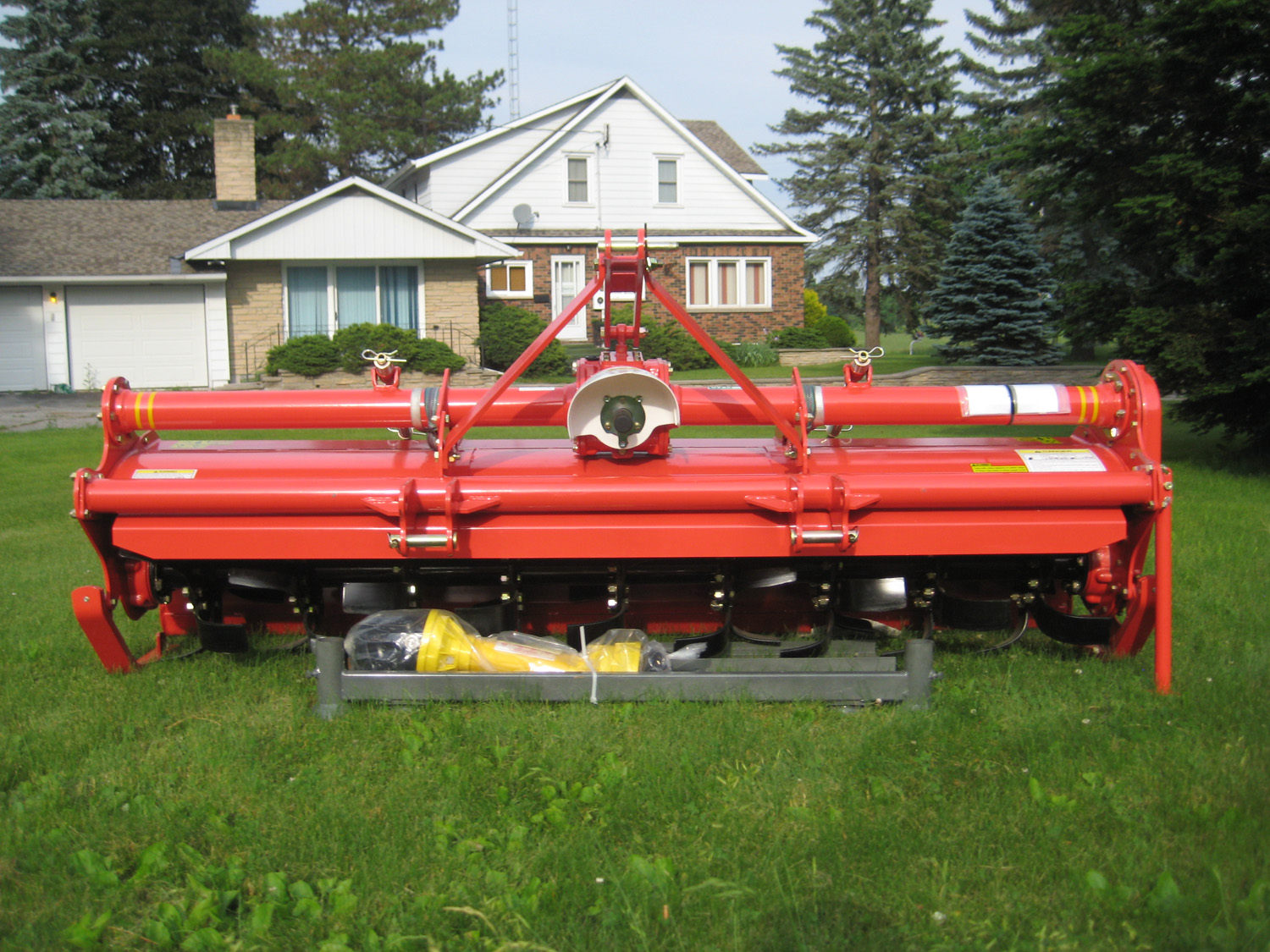

YJR 090
|
90"
|
54
|
99"
|
1,290lb
|
60-75
|


|

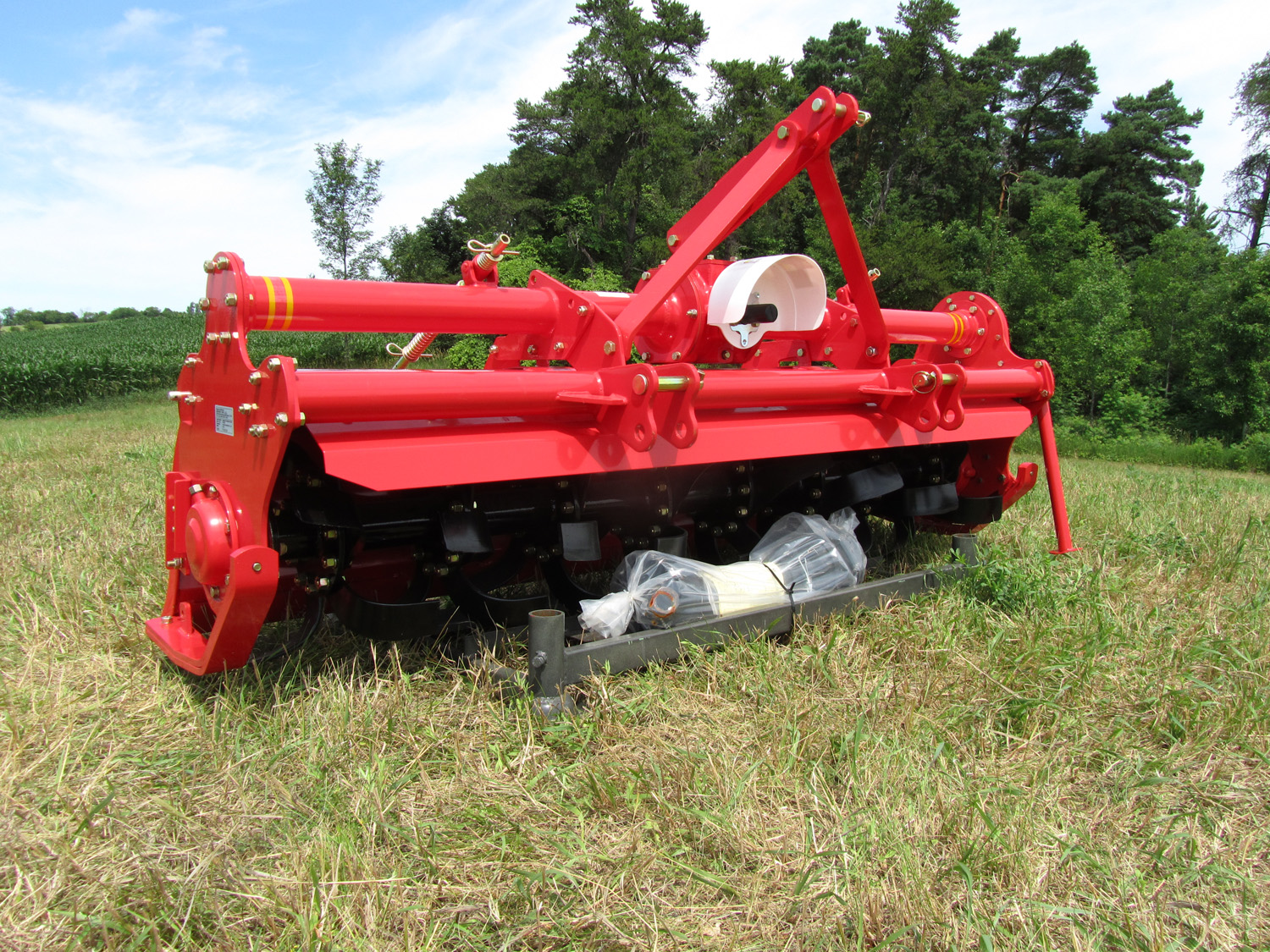

GM Series Rotary Tillers
- Slip clutch PTO
- Parking stand included
- 6 Blade per flange
- 4 speed gearbox
- Gear Drive Type
- High Spiral Bevel Gears
- Gearbox: 5 yr limited warranty
- Click photos to see a larger image
| Model
|
Tilling Width
|
Number Blades per Machine
|
Total Width
|
Weight (Pounds)
|
Recommended Tractor PTO HP
|

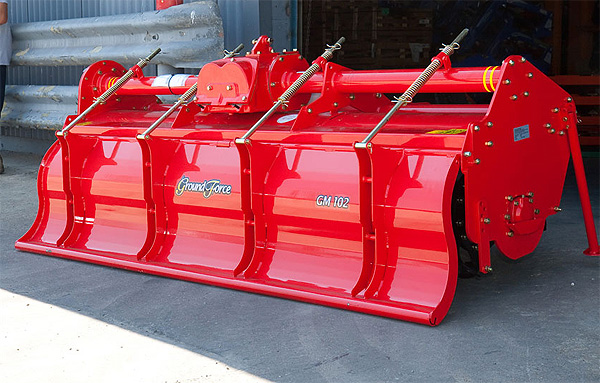

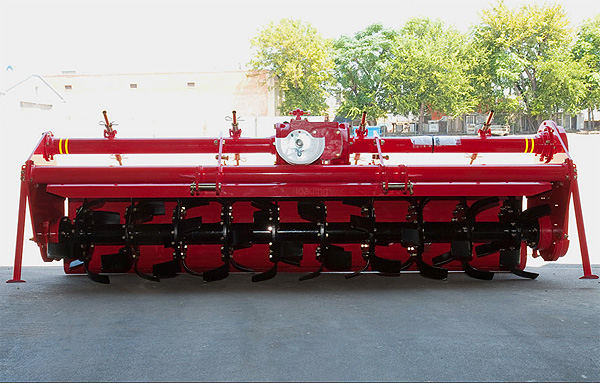

GM 102


|
102"
|
60
|
107"
|
1,570lb
|
75-90
|

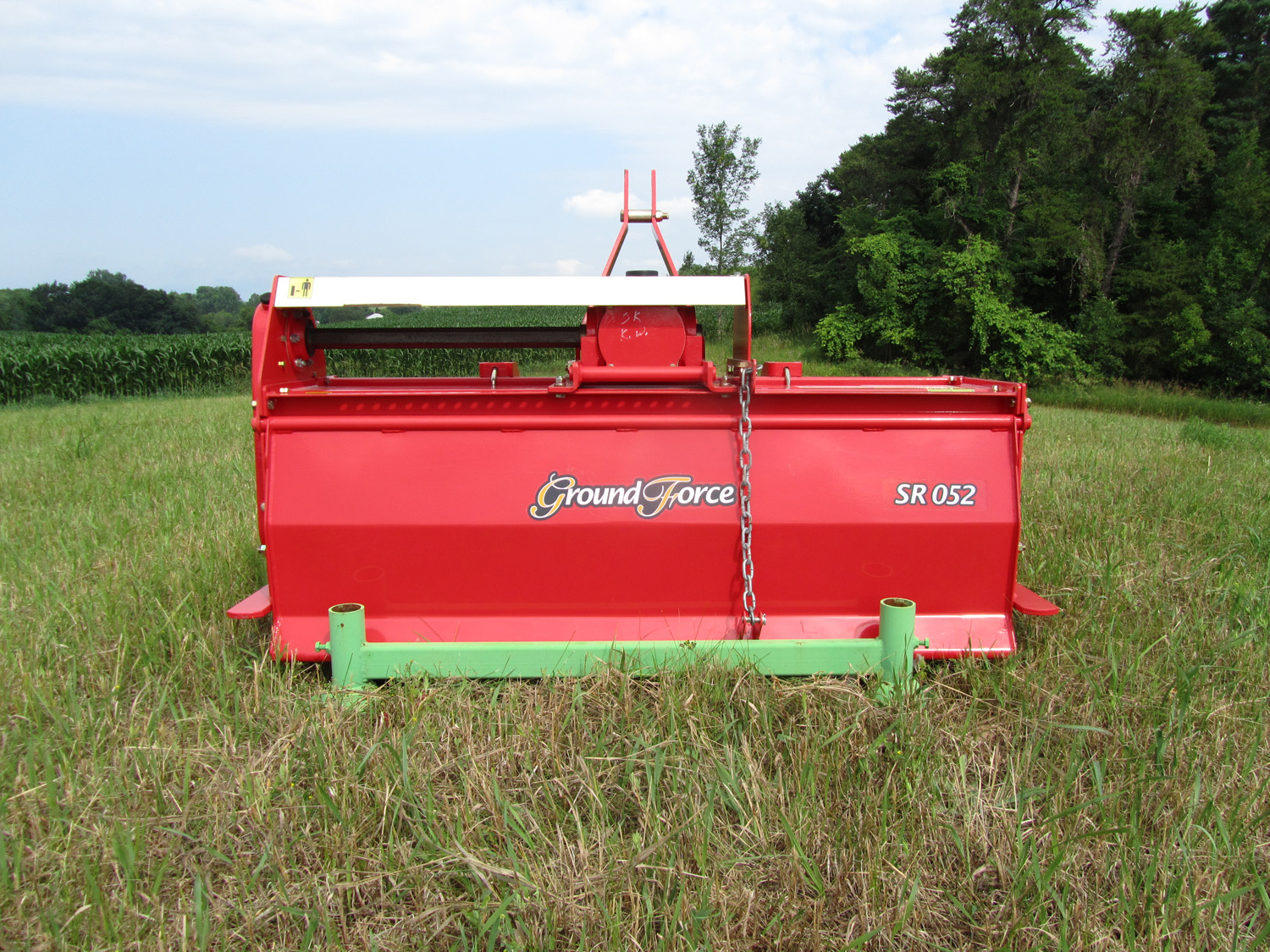

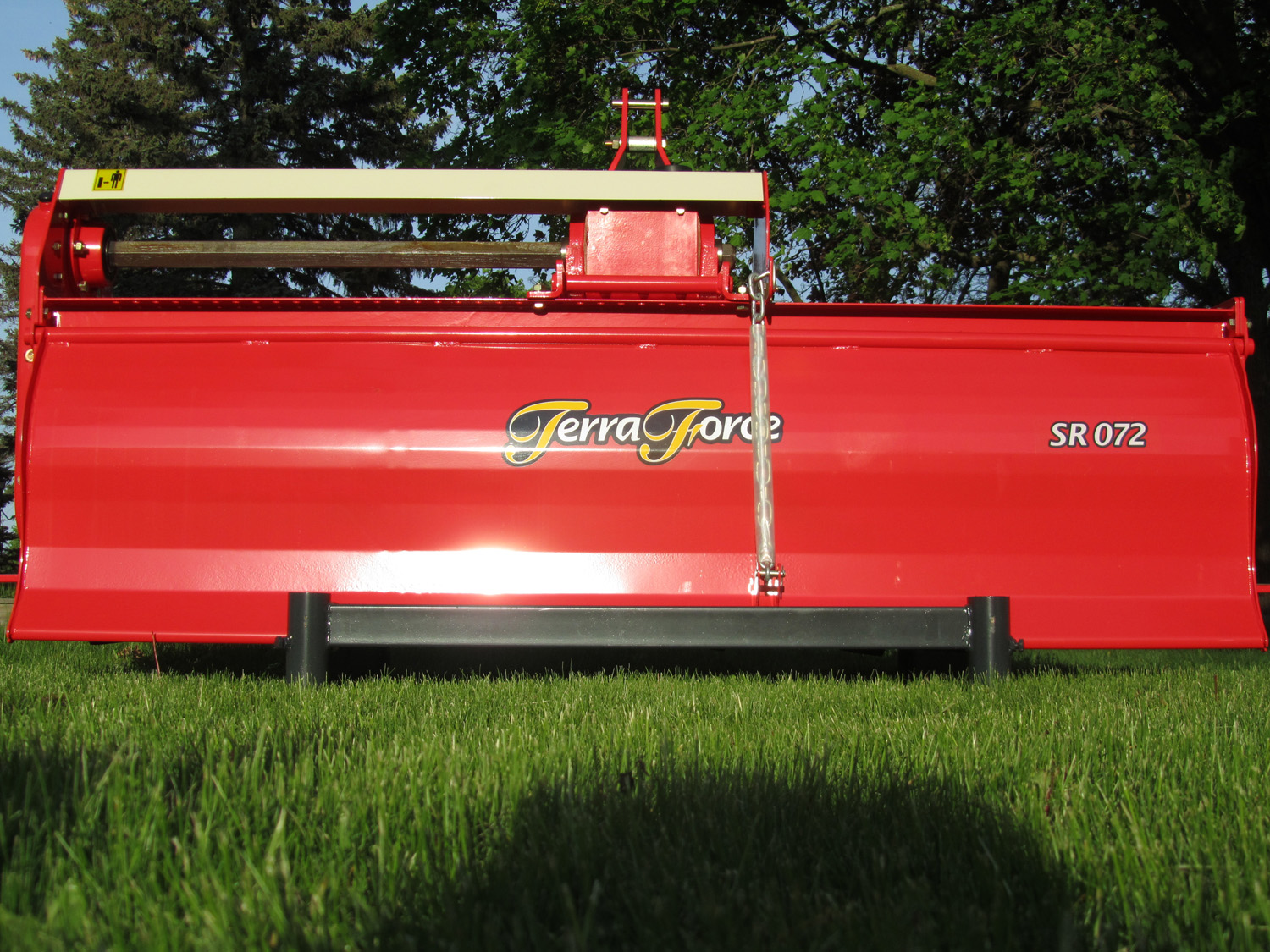

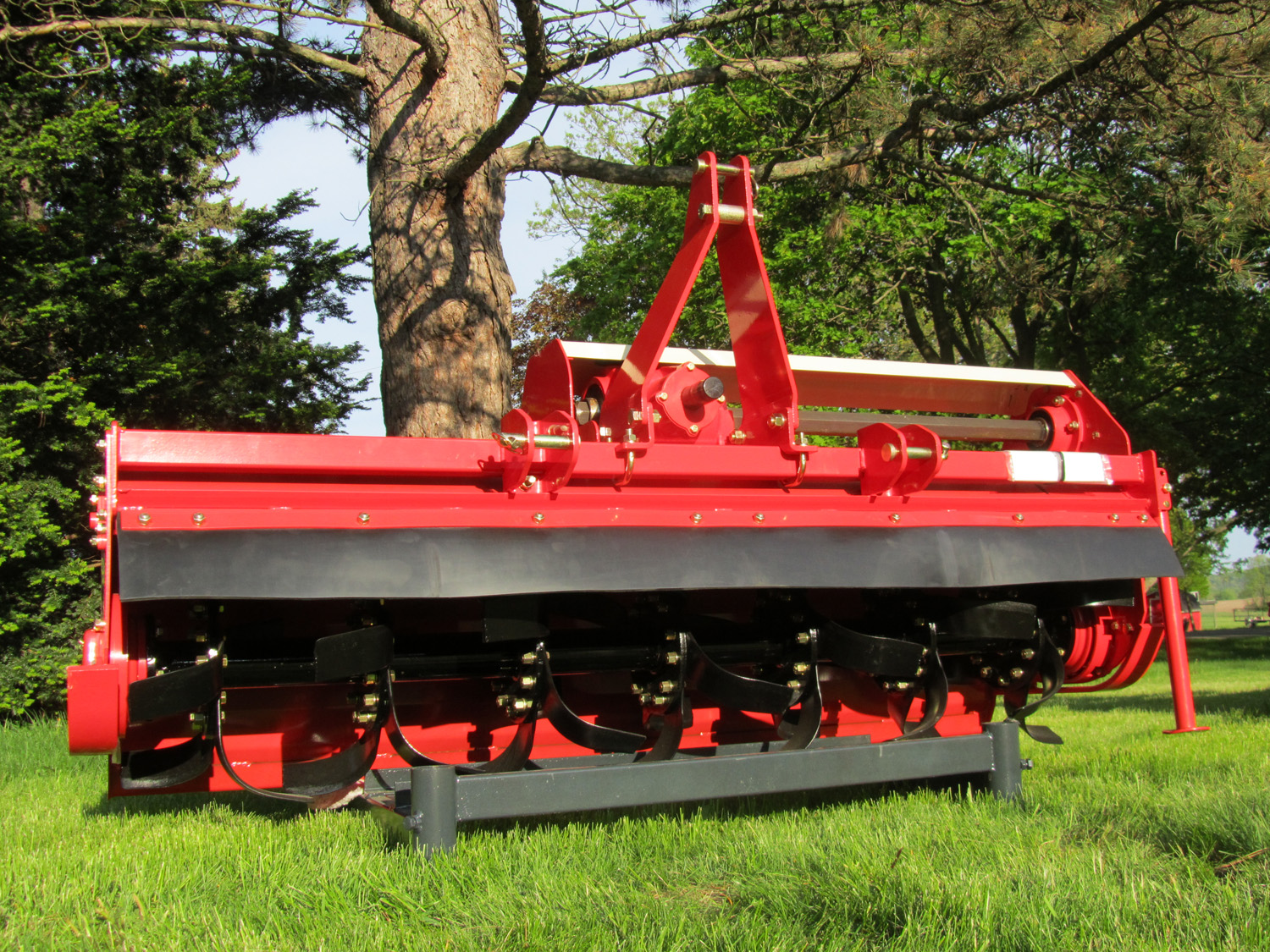

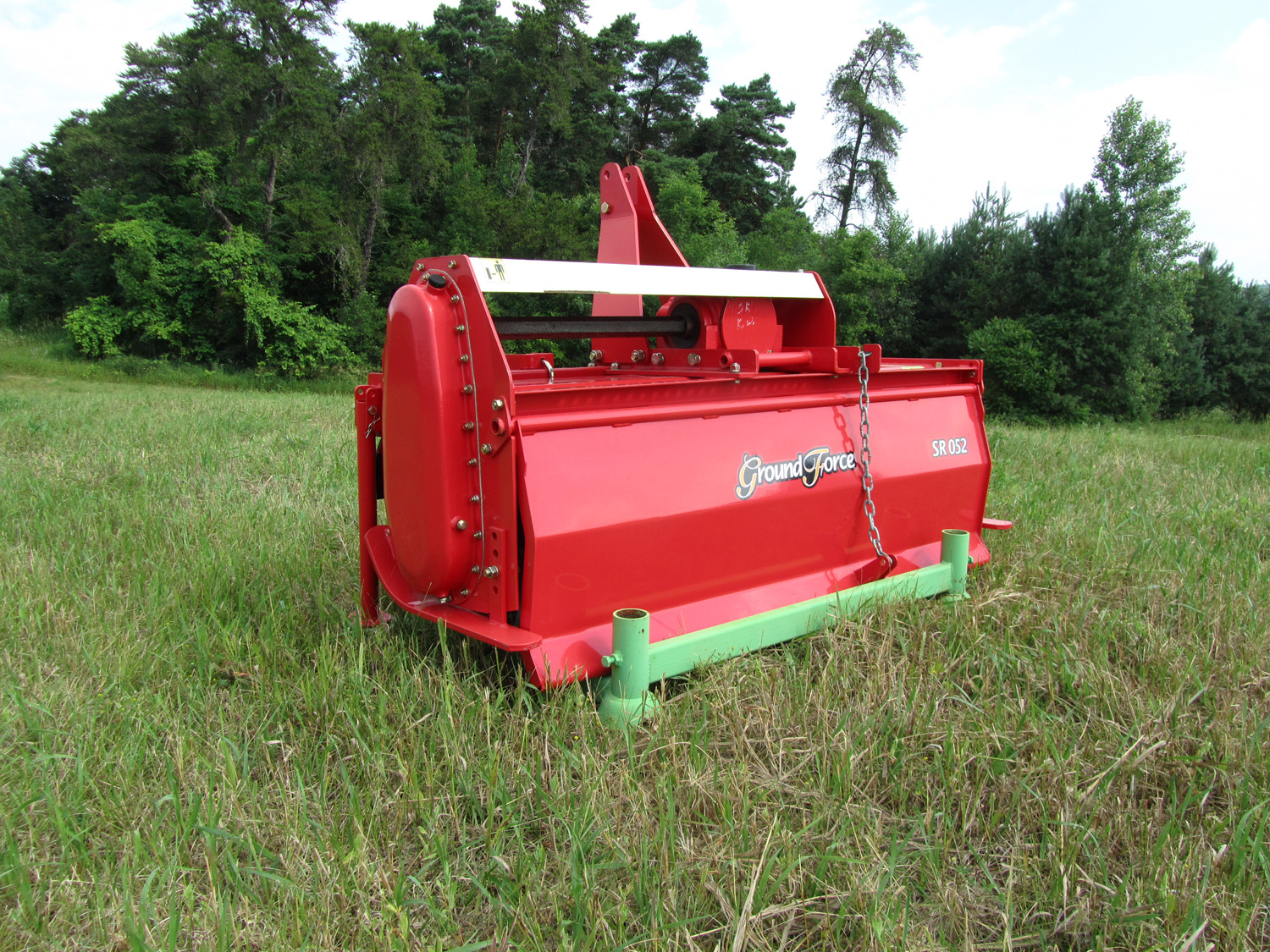

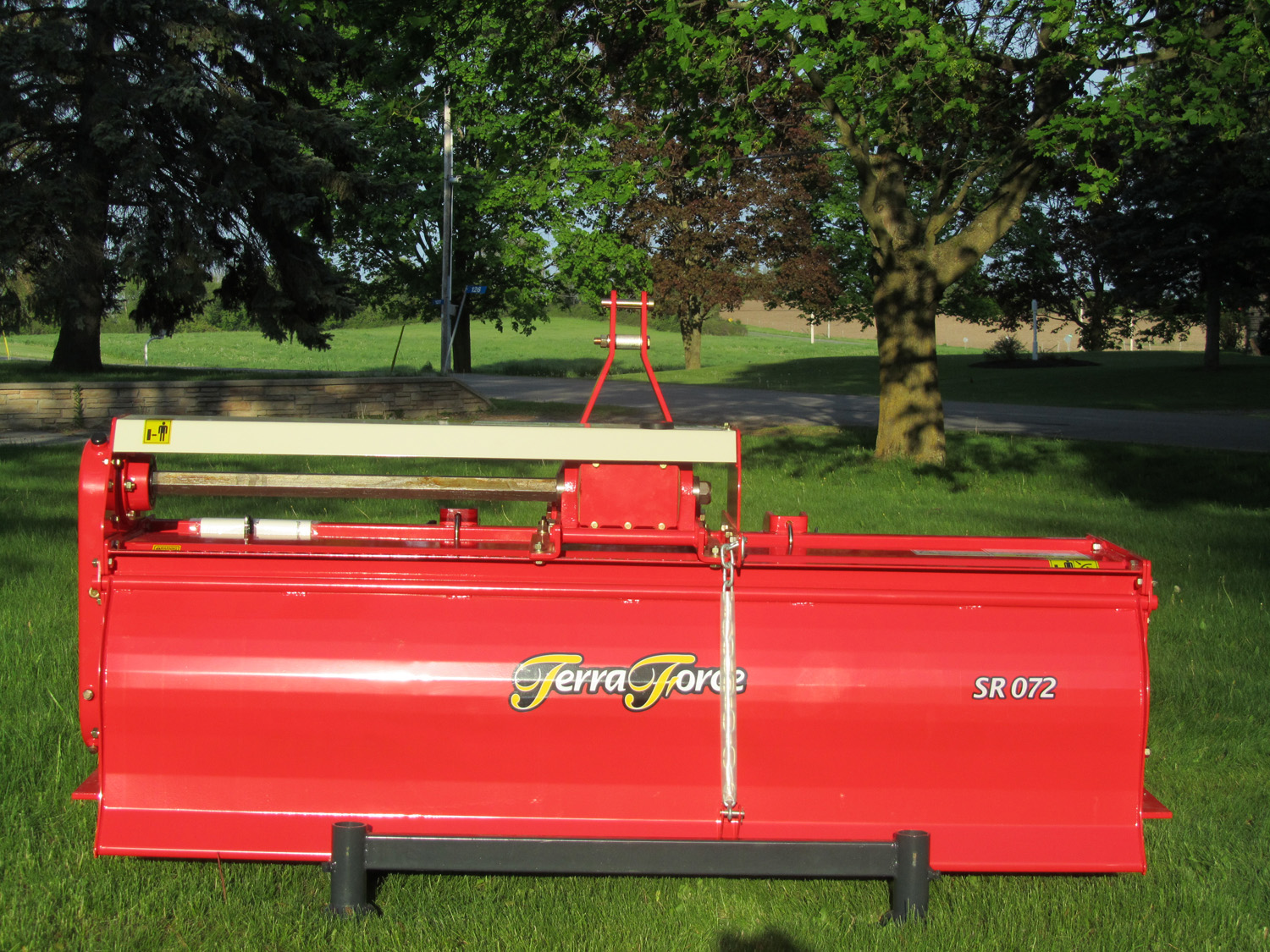

SR Series Rotary Tillers
- Slip clutch PTO
- Parking stand included
- 6 Blade per flange
- Reverse chain drive type
- Off-set type
- #80 Chain
- Adjustable skid shoes
- Gearbox: 5 yr limited warranty
- Mouse over images or click them to see a larger picture
| Model
|
Tilling Width
|
Number Blades per Machine
|
Total Width
|
Weight (Pounds)
|
Recommended Tractor PTO HP
|

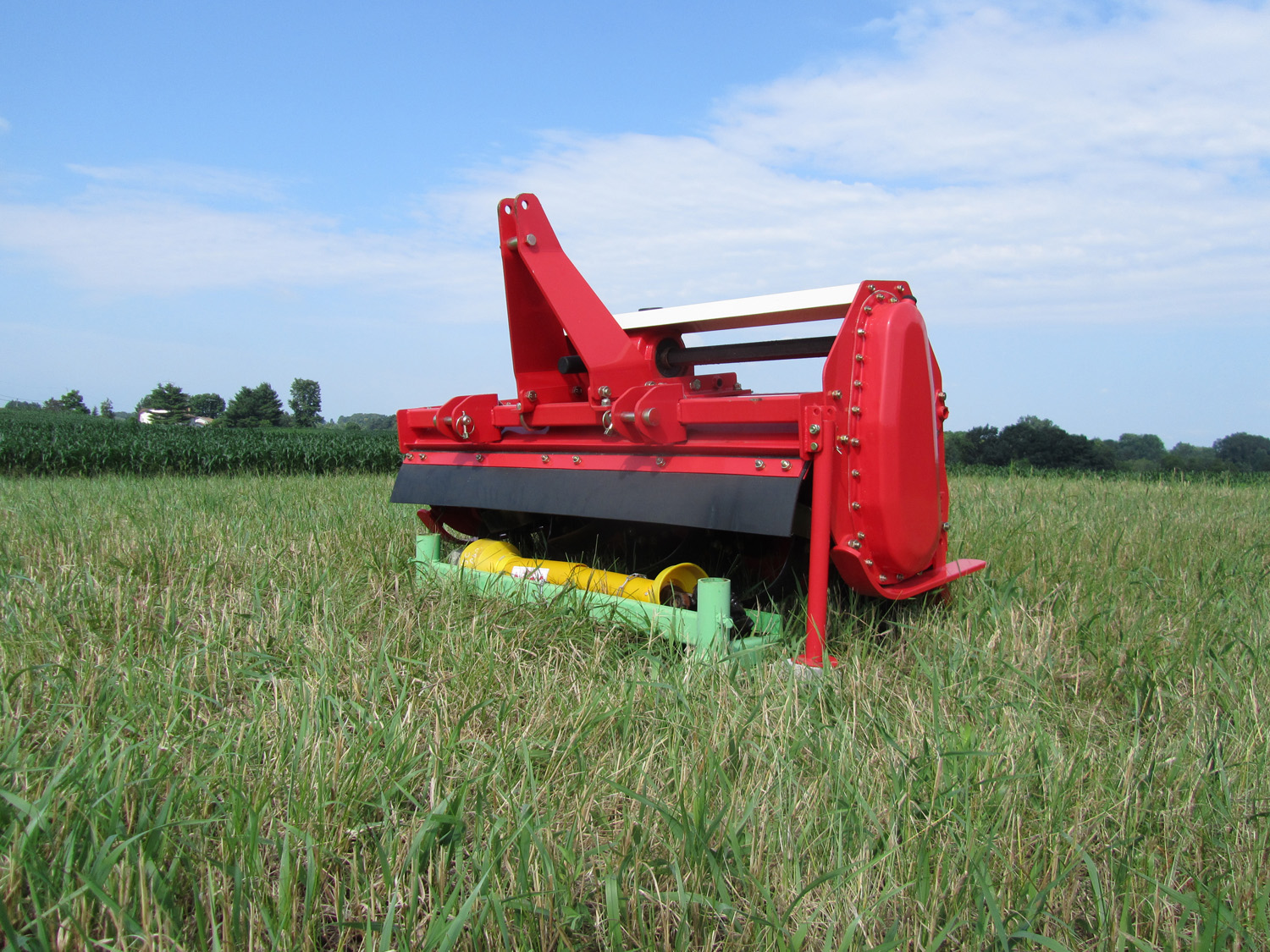

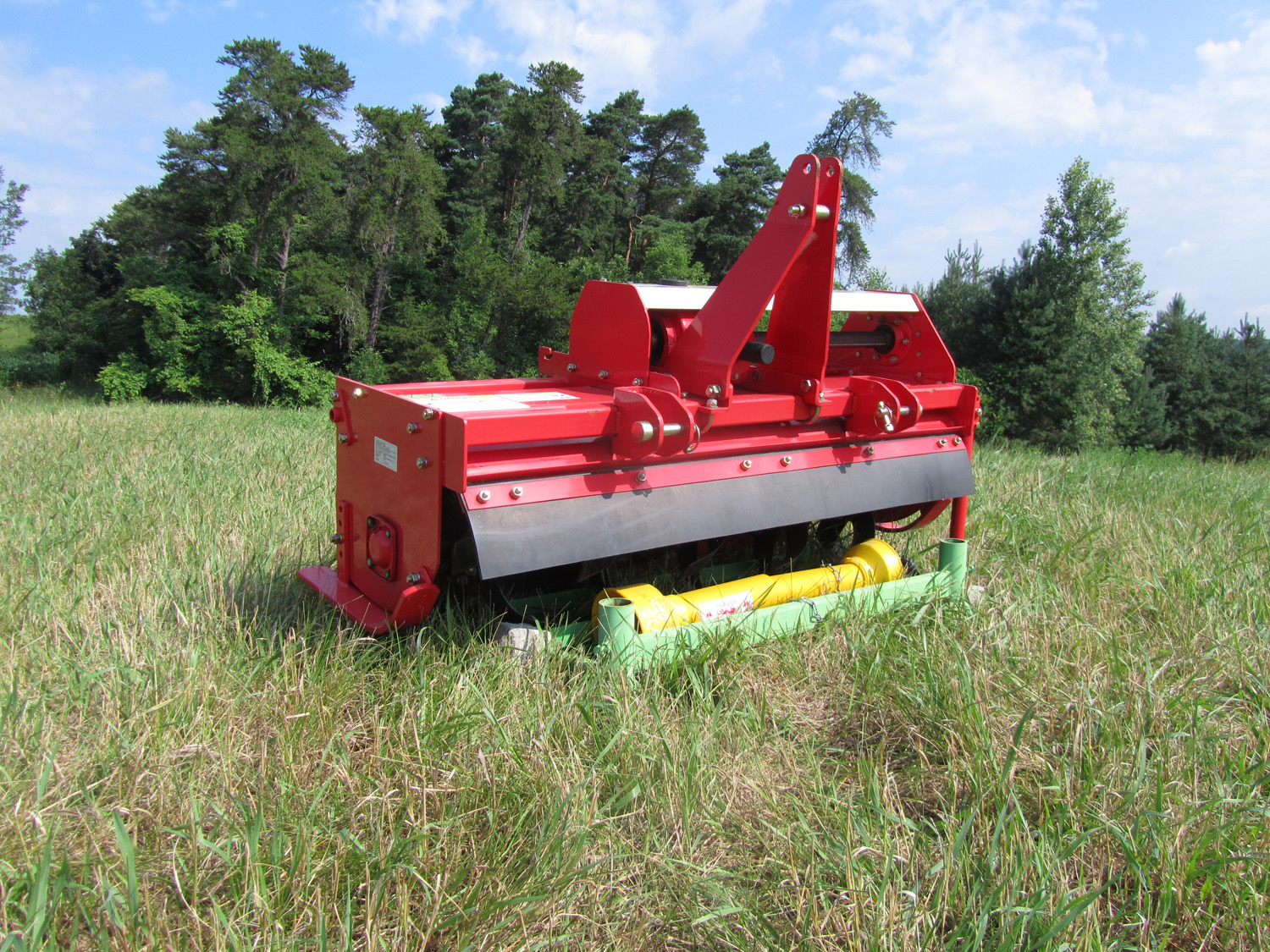

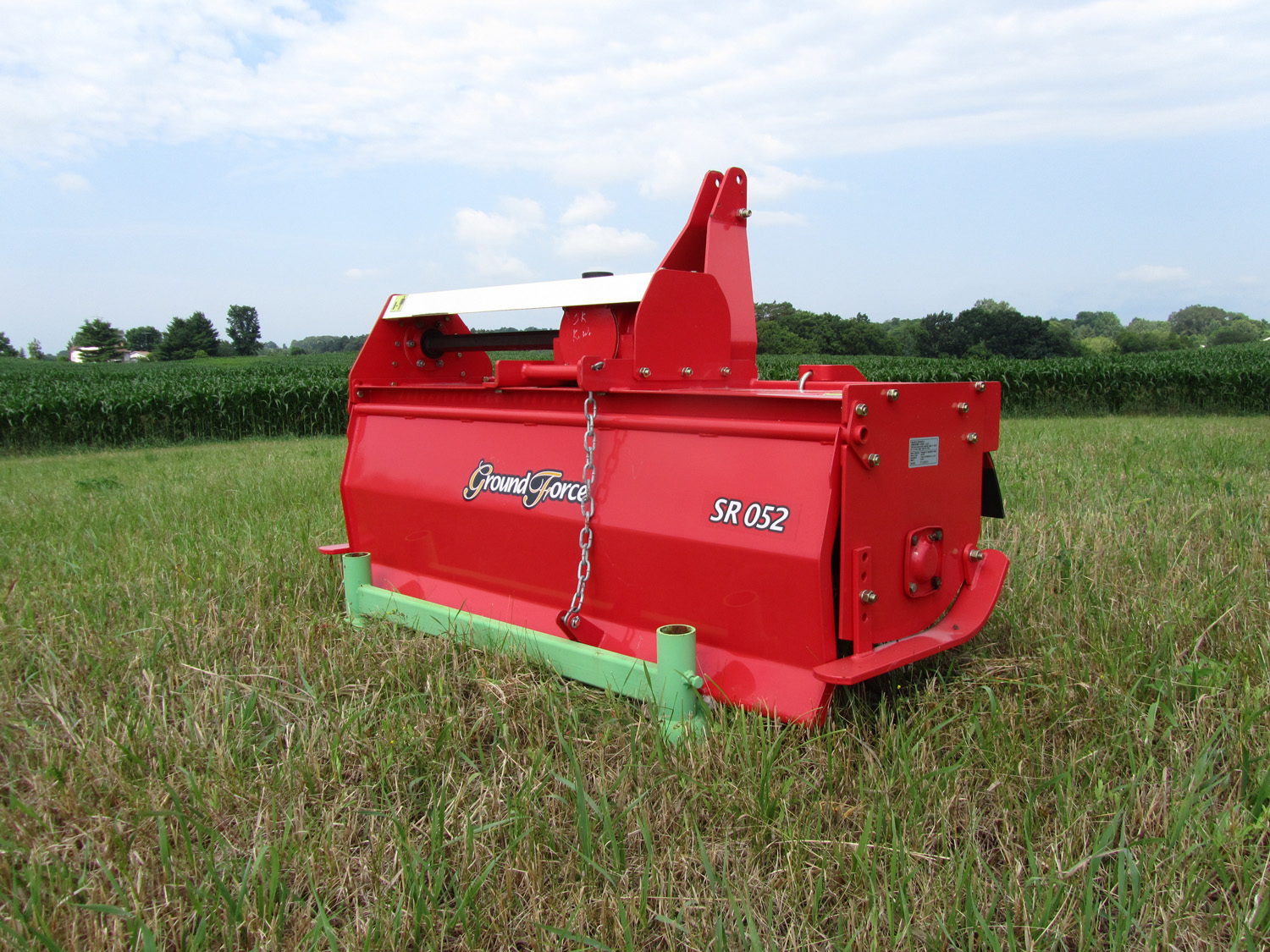

SR 052
|
52"
|
30
|
59"
|
570lb
|
15-35
|


|

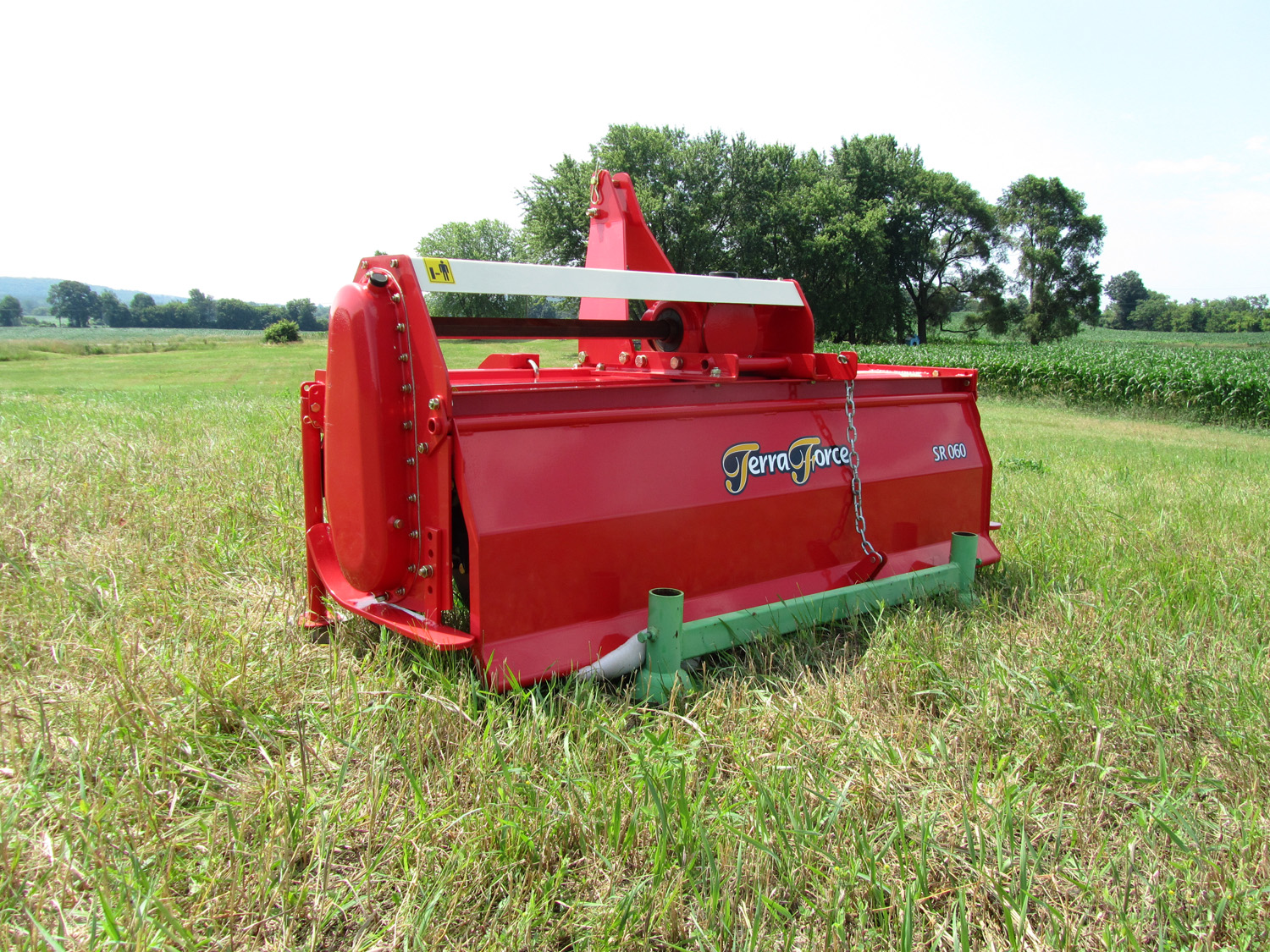

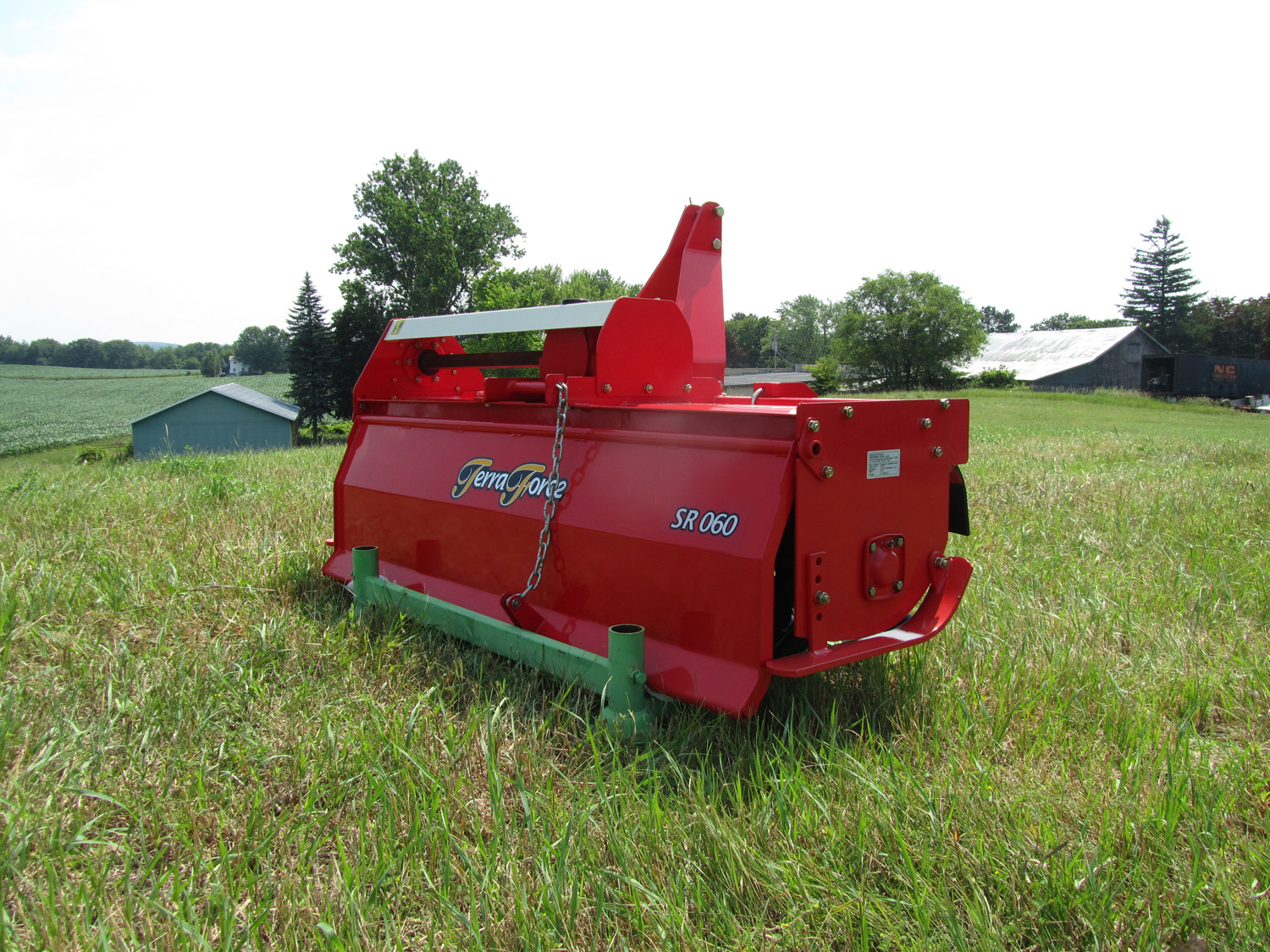

SR 060
|
60"
|
36
|
67"
|
635lb
|
26-35
|


|

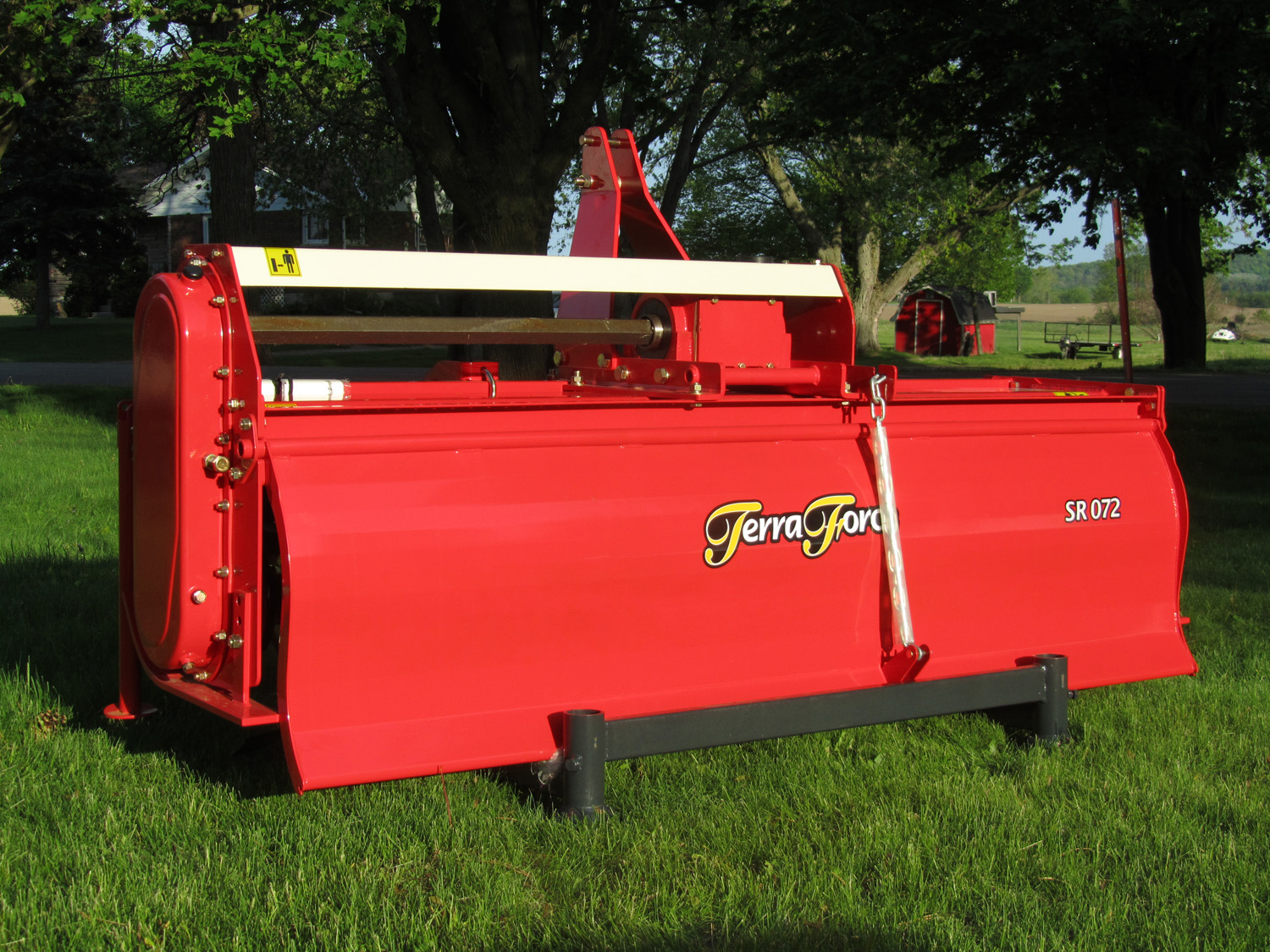

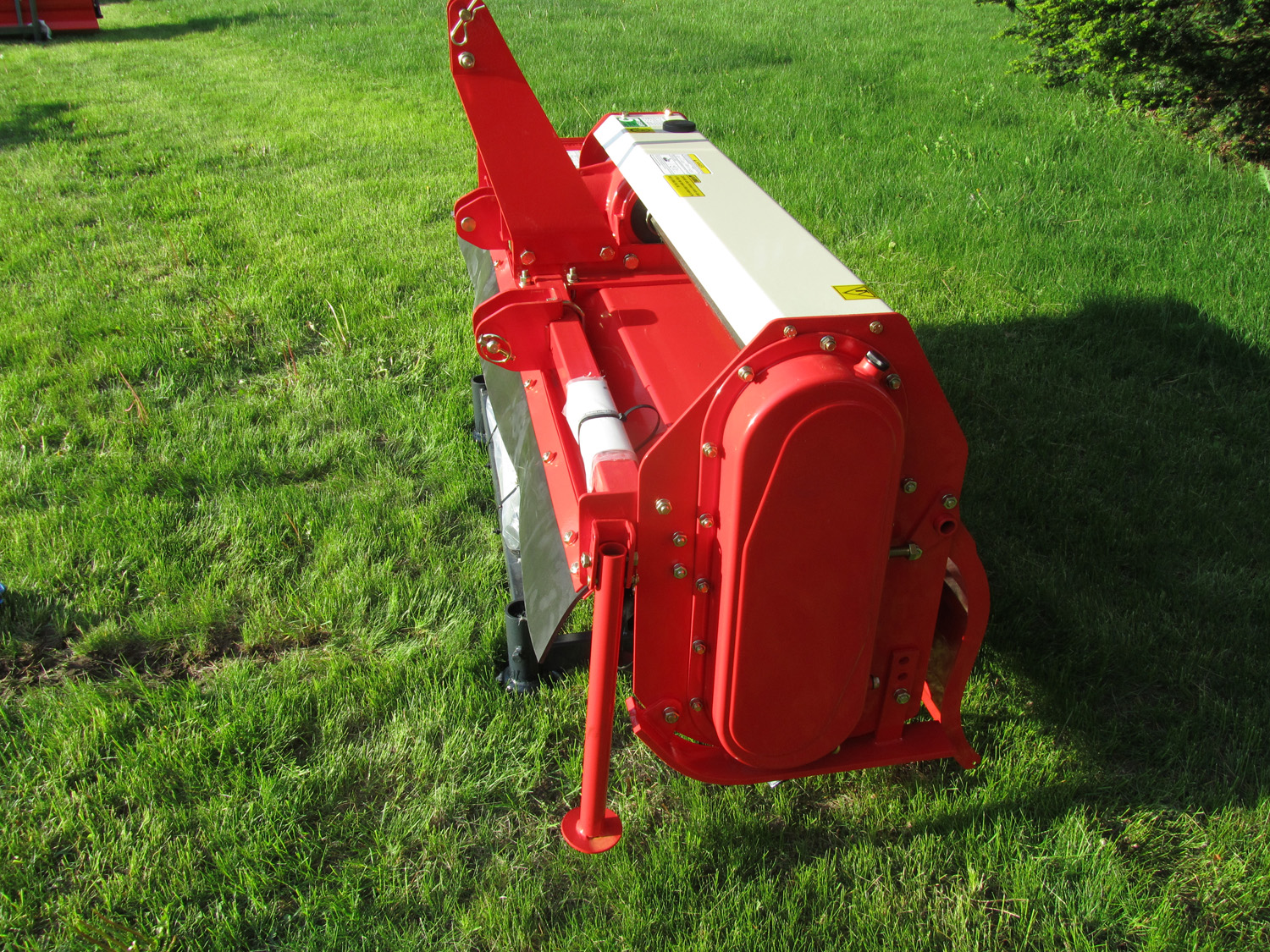

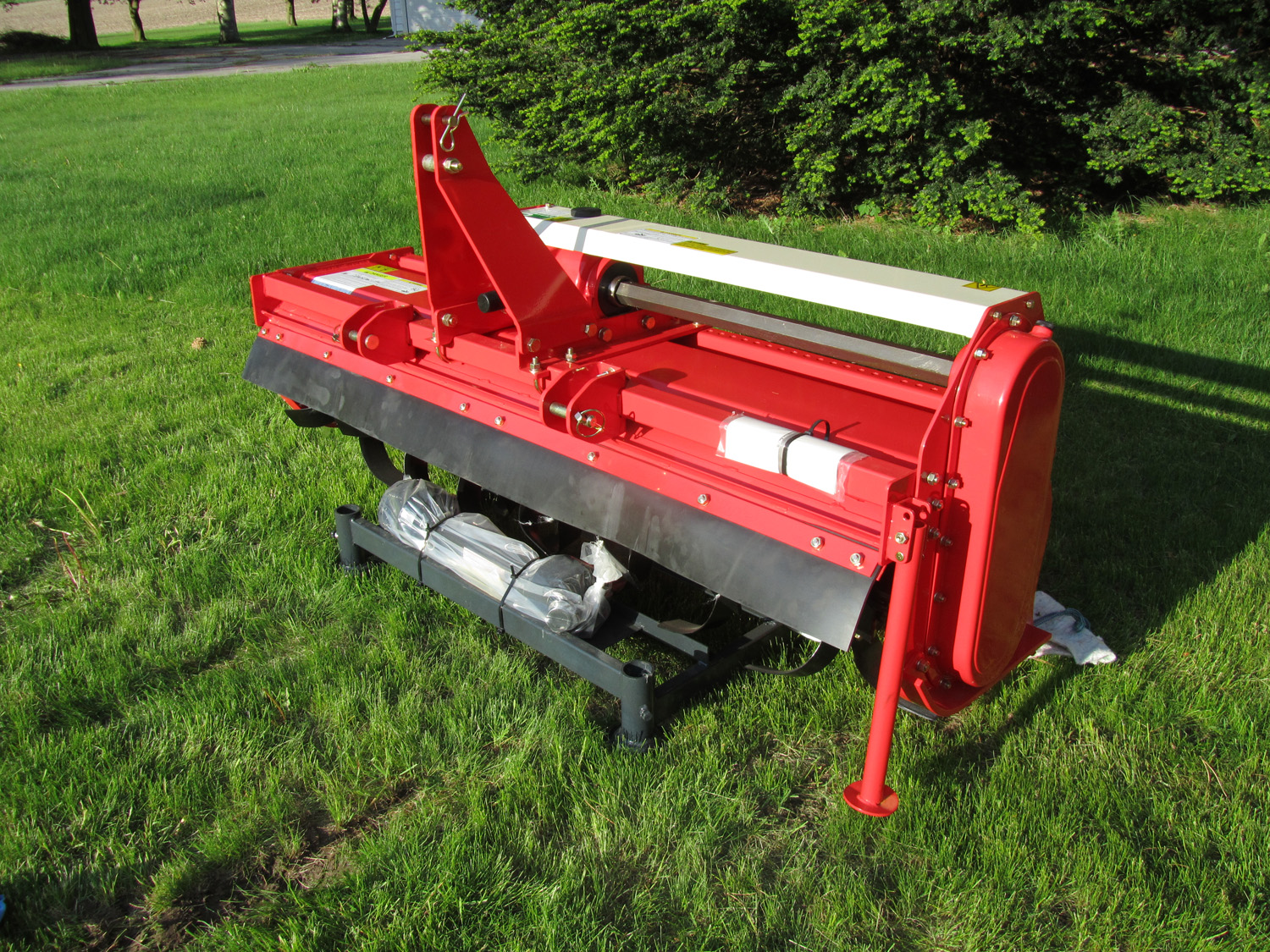

SR 072
|
74"
|
42
|
78"
|
810lb
|
35-50
|




|

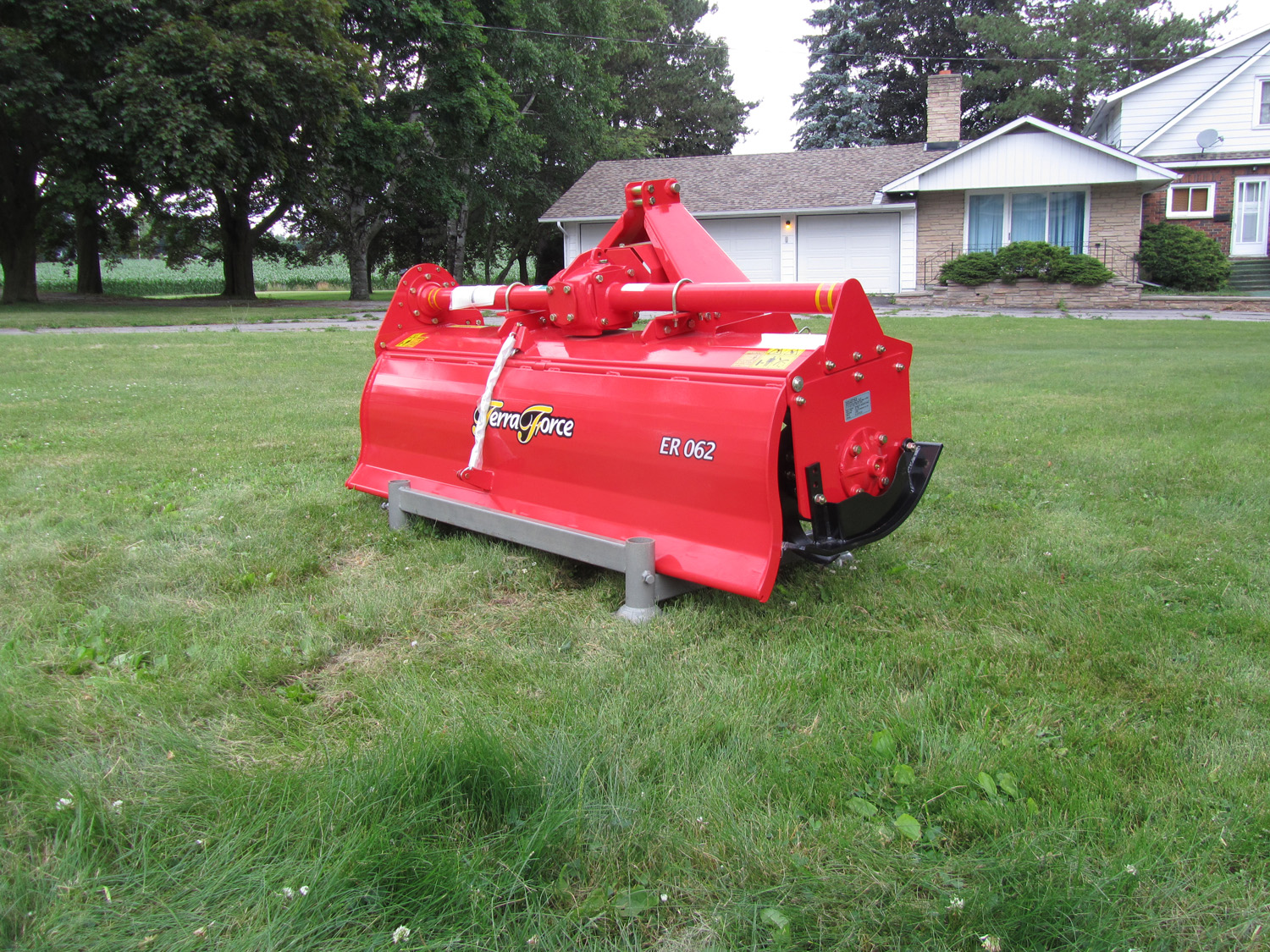

ER Series Rotary Tillers
- Slip clutch PTO
- Parking stand included
- 6 Blade per flange
- Gear drive type
- Adjustable skid shoes
- Gearbox: 5 yr limited warranty
- Click photos to see a larger image
| Model
|
Tilling Width
|
Number Blades per Machine
|
Total Width
|
Weight (Pounds)
|
Recommended Tractor PTO HP
|

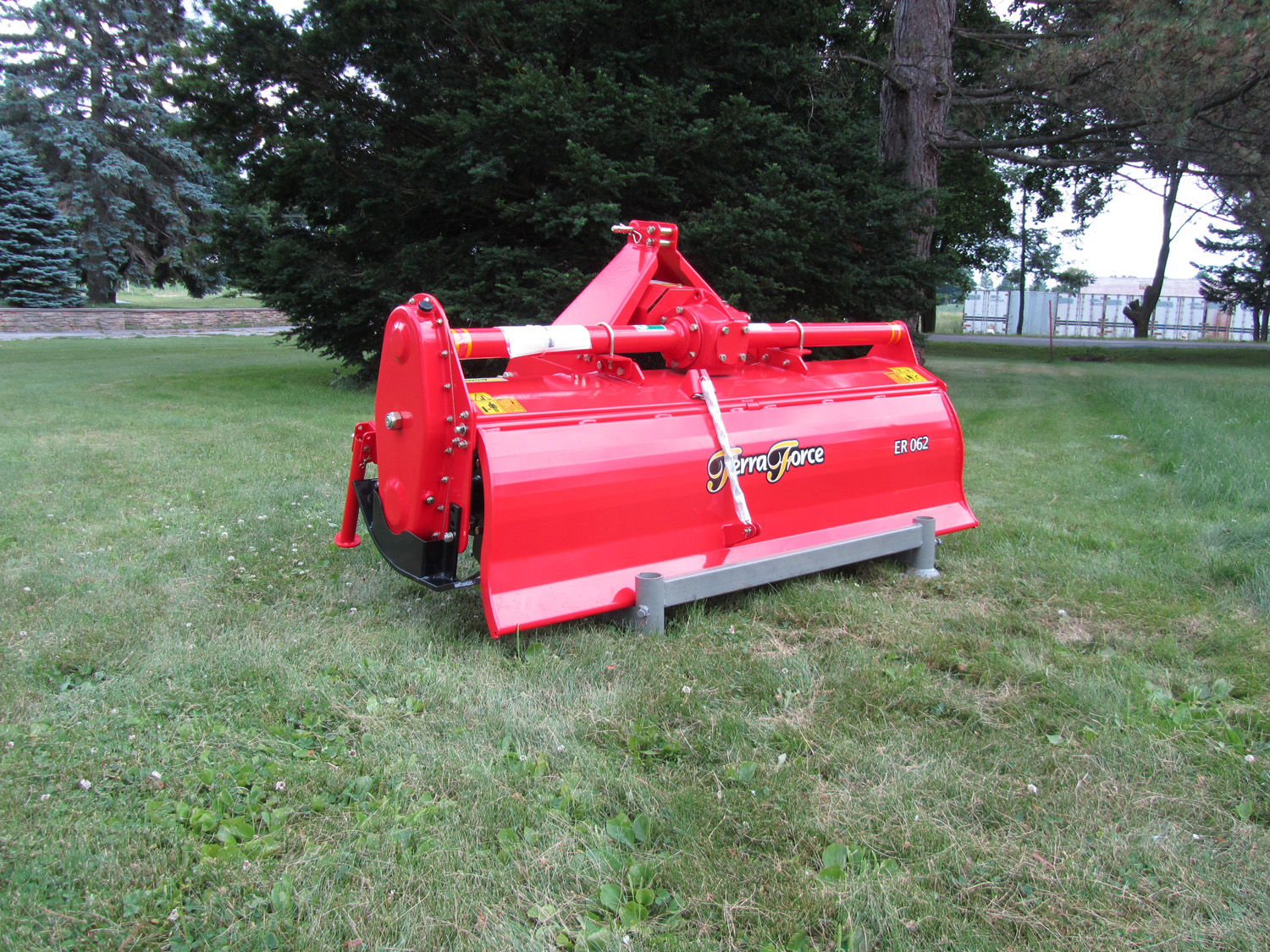

ER 062
|
62"
|
48
|
69"
|
656lb
|
25-35
|


|

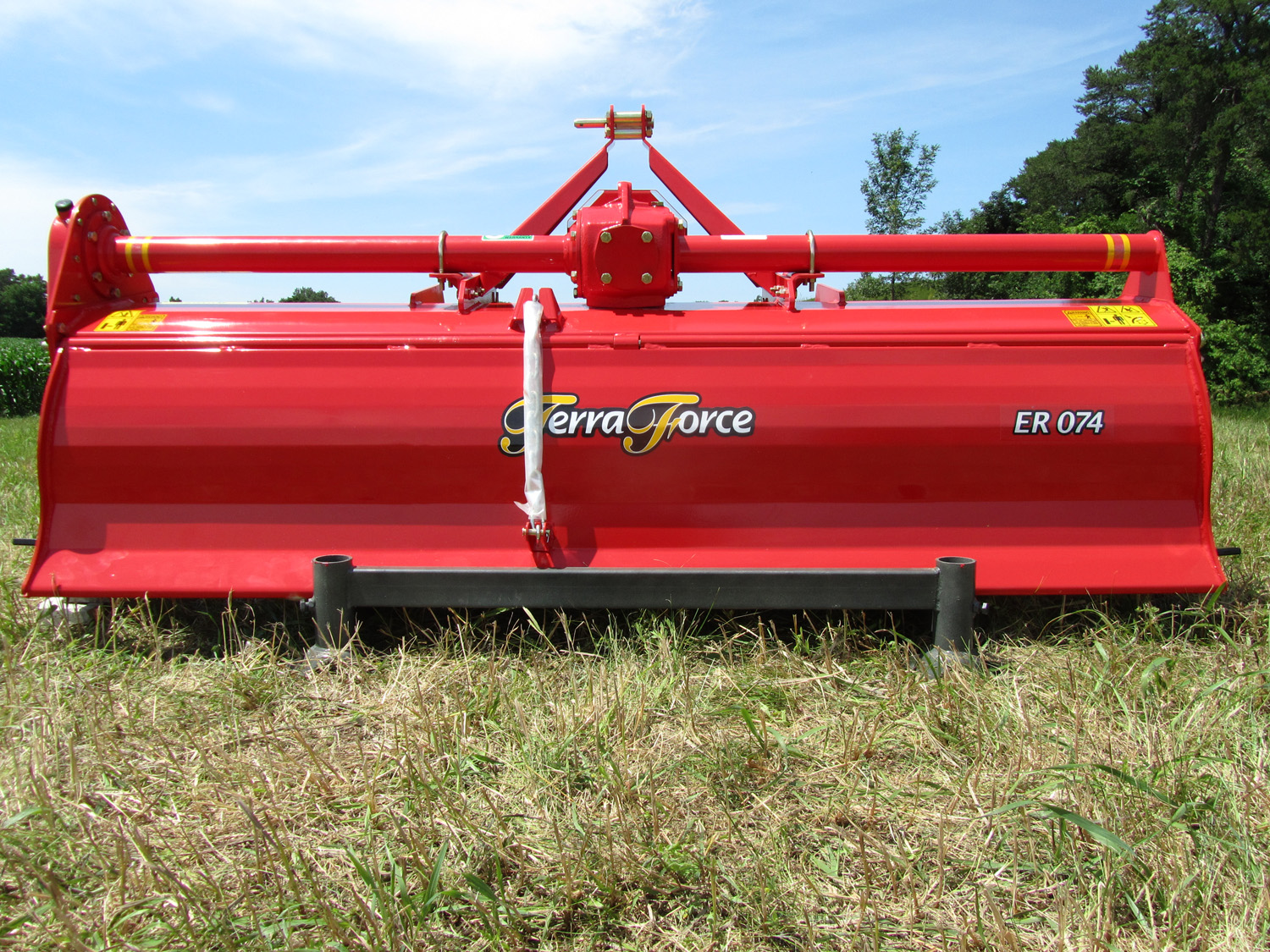

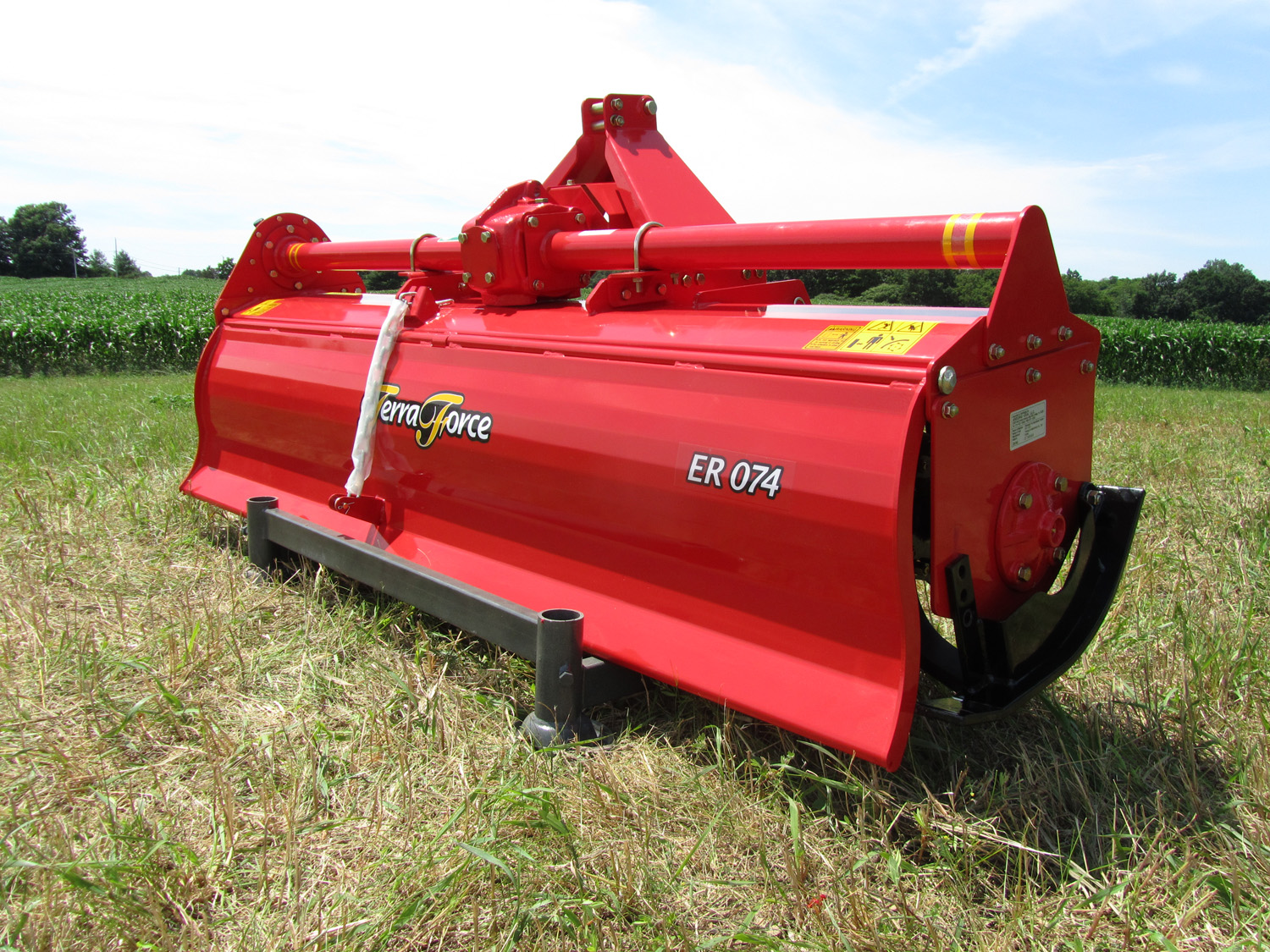

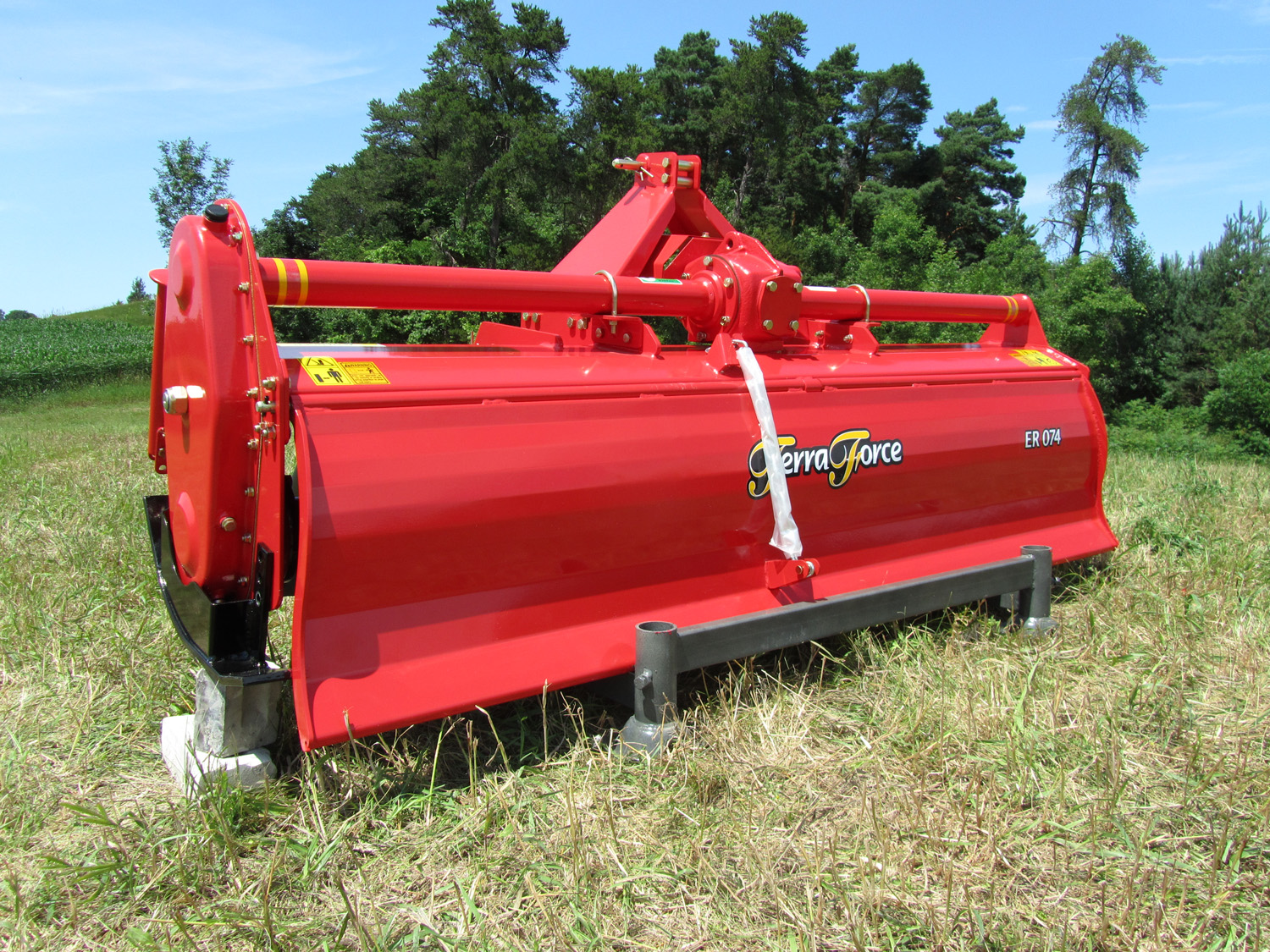

ER 074
|
74"
|
54
|
80"
|
706lb
|
46-52
|


|
|
